Motor components and options
4.1 Motor components
1FW6 Built-in torque motors
86 Configuration Manual, 07/2017, 6SN1197-0AE00-0BP9

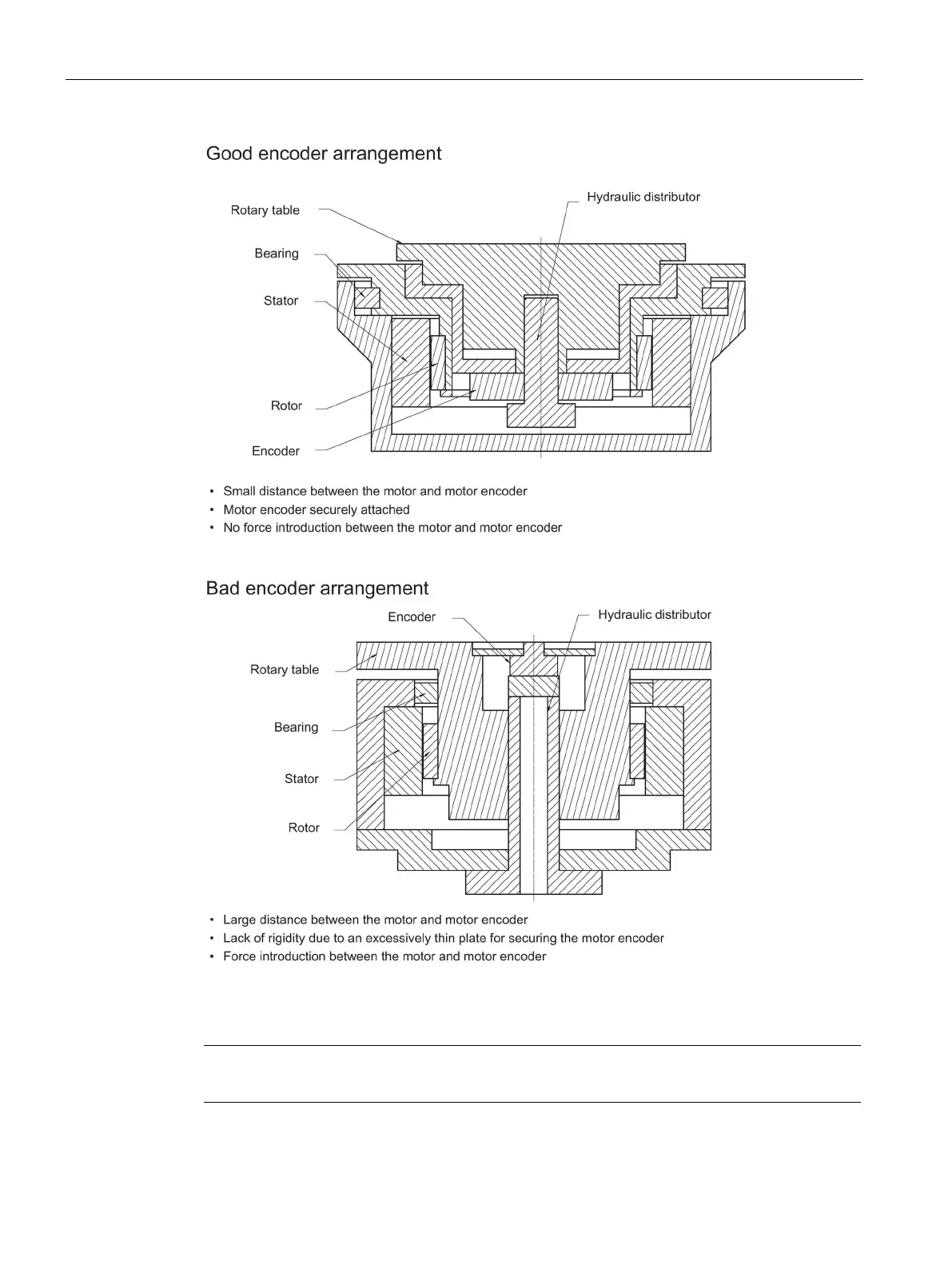

Figure 4-6 Mounting diagram (example)
Note
Additional mounting examples are provided in Chapter "
Installation examples (Page 146)".
