Enter the desired parameters as follows:
7.

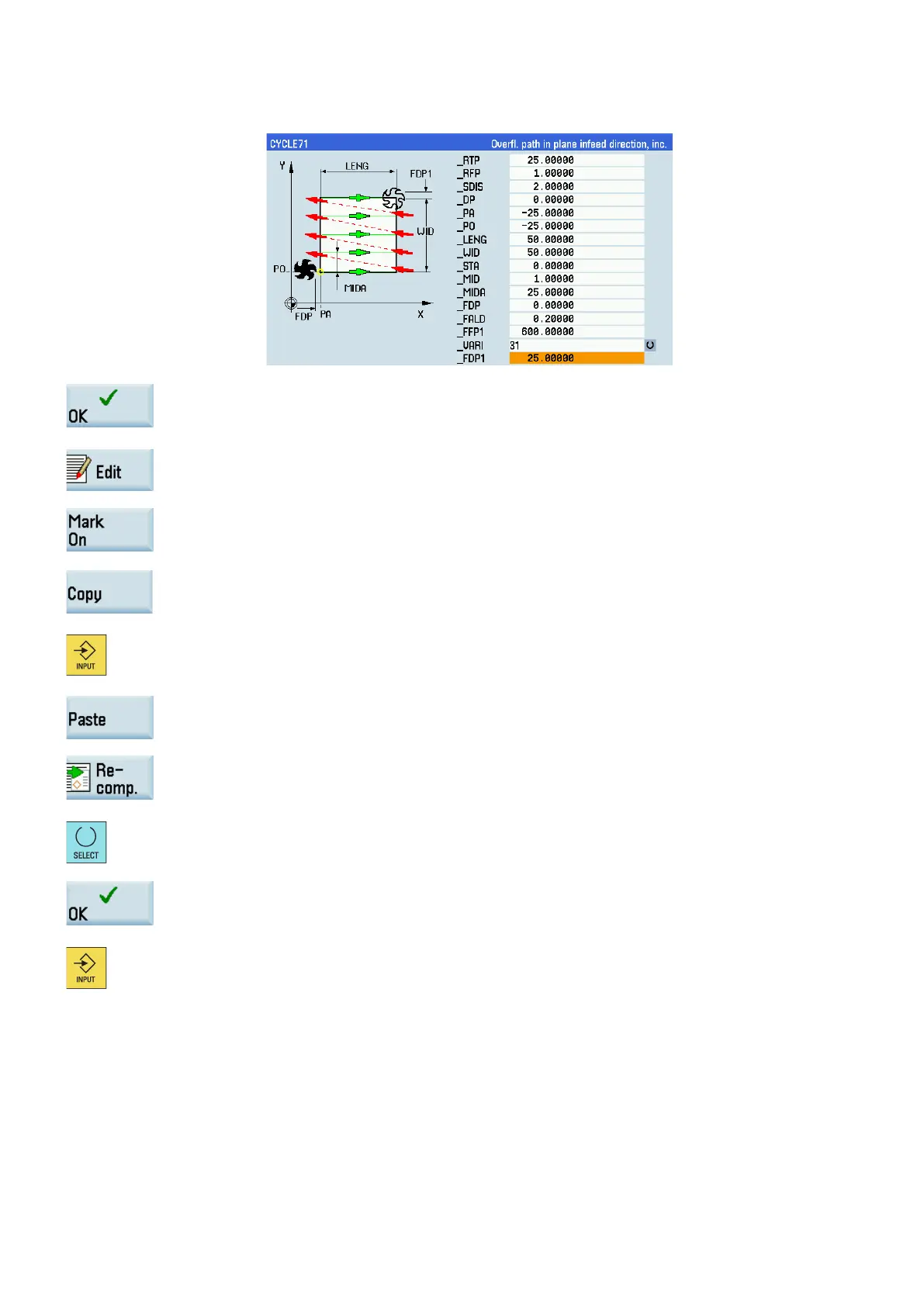

Press this softkey to confirm your input and open the cycle programming window.
Enter the following program b
lock:
S2500
8.
Press this softkey to return to the program editor window.
9.
Move the cursor to "C" in the line for CYCLE71 with the cursor keys and press this softkey
to insert a marker.
10.
Use the cursor keys to select the entire program block for CYCLE71. Press this softkey to
copy the selection to the buffer memory.
11.
Place the cursor on the end-of-block character after "S4500" with the cursor keys and press
this key to enter a new line.
12.
Paste the content of the buffer memory into the new line.
13.
Press this softkey to open the window for CYCLE71 again. Change the values of "FDP" and
"FALD" to "25" and "0" respectively.
14.
Move the cursor to the input field of "VARI" and press this key to change the value to "12".
15.
Press this softkey to accept the change.
16.
Place the cursor on the end
-of-
block character of CYCLE71 the with cursor keys and press
this key on the MCP to enter a new line.
Continue to enter the following program blocks and press this ke
y again:
G0 Z100 M9
T2 D1
M6
S4000 M3 M8
G0 Z100
_ANF:
17.
Open the window for POCKET3 through the following softkey operations:
