Programming and Operating Manual (Milling)
240 6FC5398-4DP10-0BA6, 09/2017

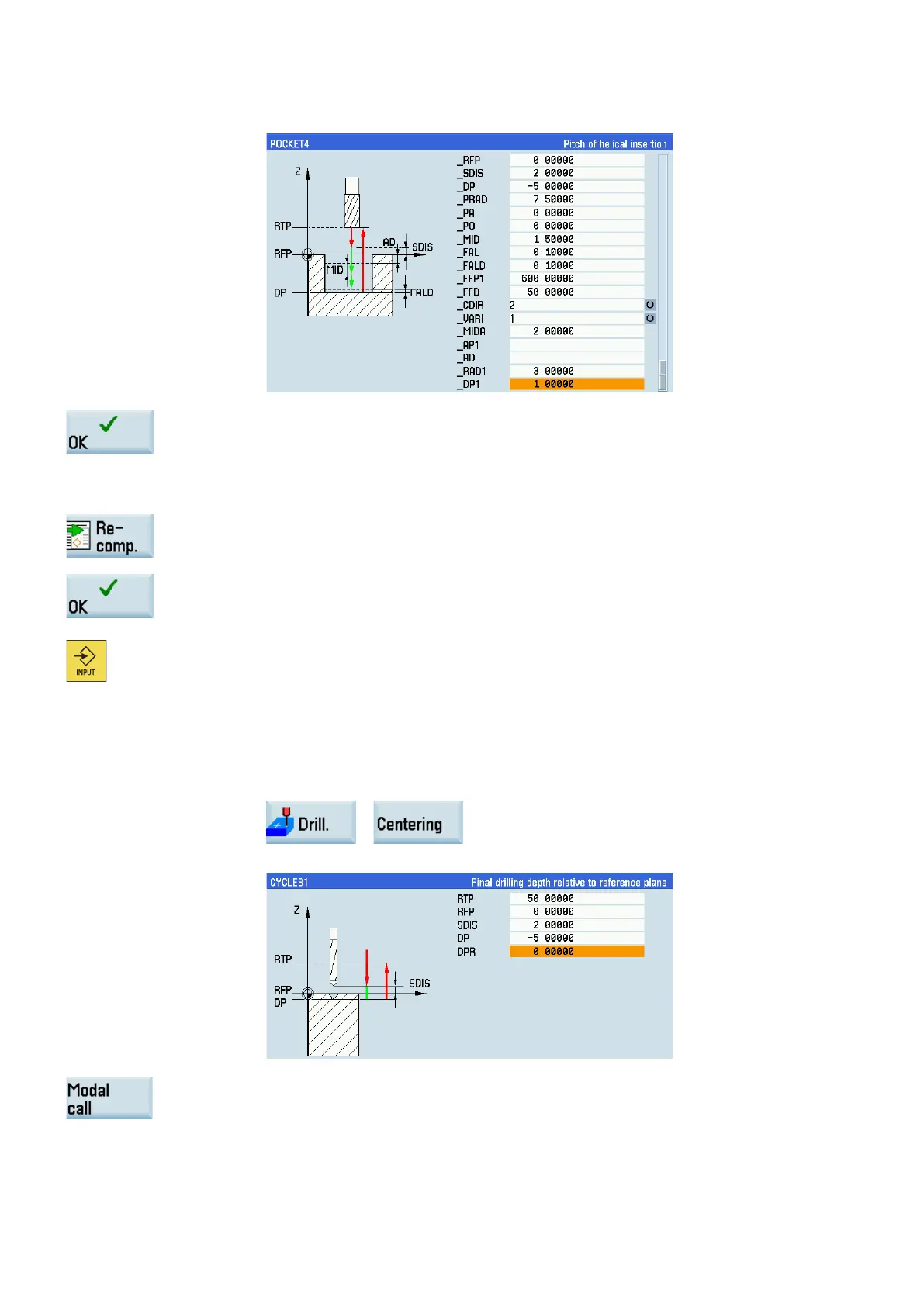

Enter the desired parameters as follows:
Press this softkey to confirm your input and open the cycle programming window.
Enter the following program block:
Proceed through the steps described earlier to copy the entire program block for POCKET4
and paste it in the line after the above blocks.
Press this softkey to open the window for POCKET4 again. Change the values of "MID",
"FFP1", "FFD" and "VARI" to "5", "400", "200" and "2" respectively.
Press this softkey to accept the change and open the cycle programming window.
Press this key to enter a new line.
to enter the following program blocks and then presss this key again:
Open the window for CYCLE81 through the following softkey operations:
Enter the desired parameters as follows:
Press this softkey to call this cycle modally.
