255
15.
Continue to enter the following program blocks and then press this key again:
G0 Z100 M9
T3 D1
M6
G0 Z100
S4000 M3 M8
G00 X
-6 Y92
G00 Z2
G01 F300 Z
-10
G41 Y90
G01 X10 RND=6
G01 Y97 CHR=1
G01 X70 RND=4
G01 Y90
G01 G40 X80
G00 Z100 M
9
T4 D1
M6
G0 Z100
S4000 M3 M8
16.

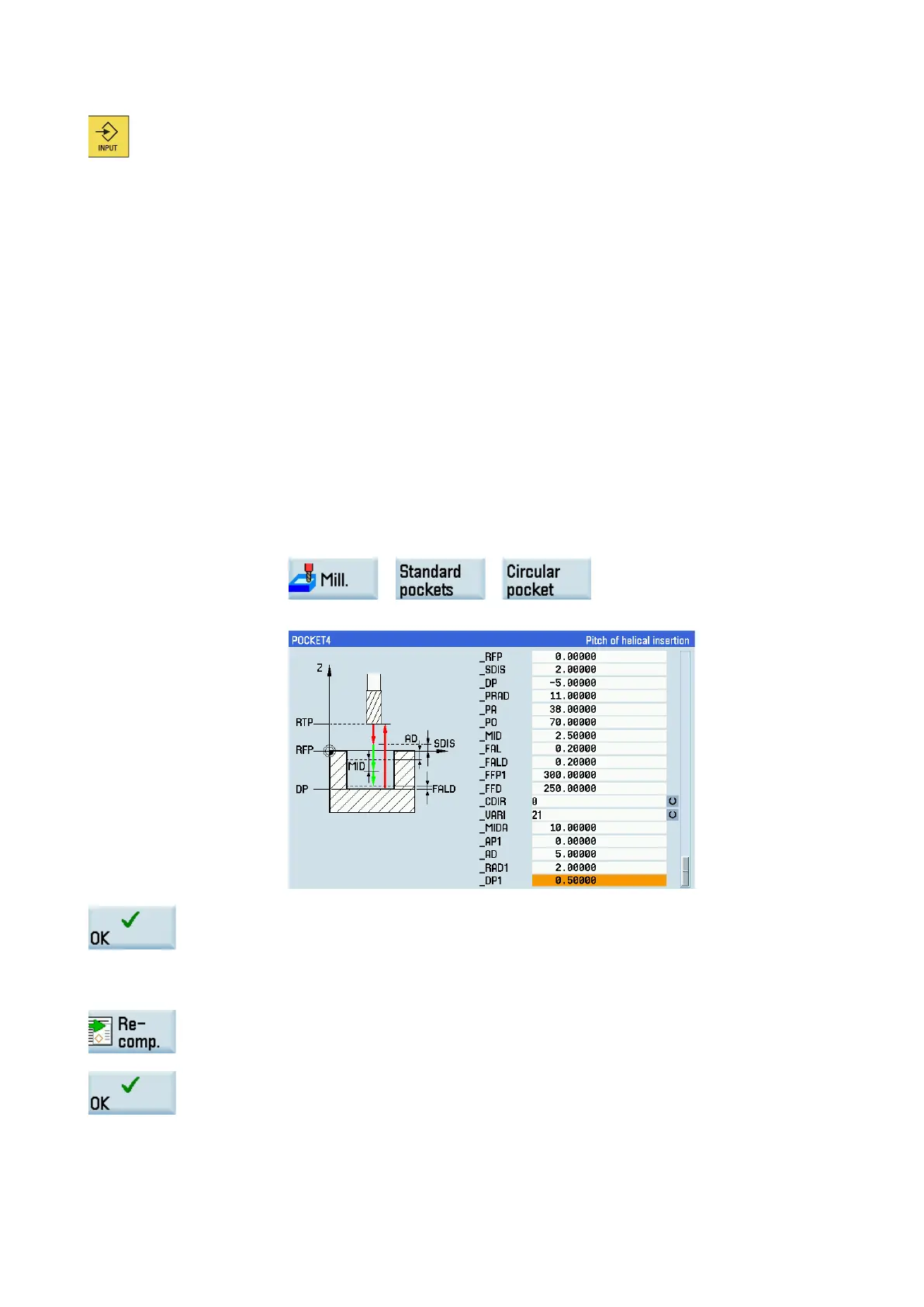

Open the window for POCKET4 through the following softkey operations:
→ →
Enter the desired parameters as follows:
17.
Press this softkey to confirm your input and open the cycle programming window.
Continue to enter the
following block:
S4500 M3
18.
Proceed through the steps described earlier to copy the entire program block for POCKET4
and paste it in the line after the above program blocks.
19.
Press this softkey to open the window for POCKET4. Change the values of "FFP1", "FFD"
and "VARI" to "400", "100" and "22" resp
ectively.
20.
Press this softkey to accept the chang
es and open the cycle programming window.
