Siemens SINUMERIK 808D User Manual

Programming and Operating Manual (Milling)
322 6FC5398-4DP10-0BA6, 09/2017
7.

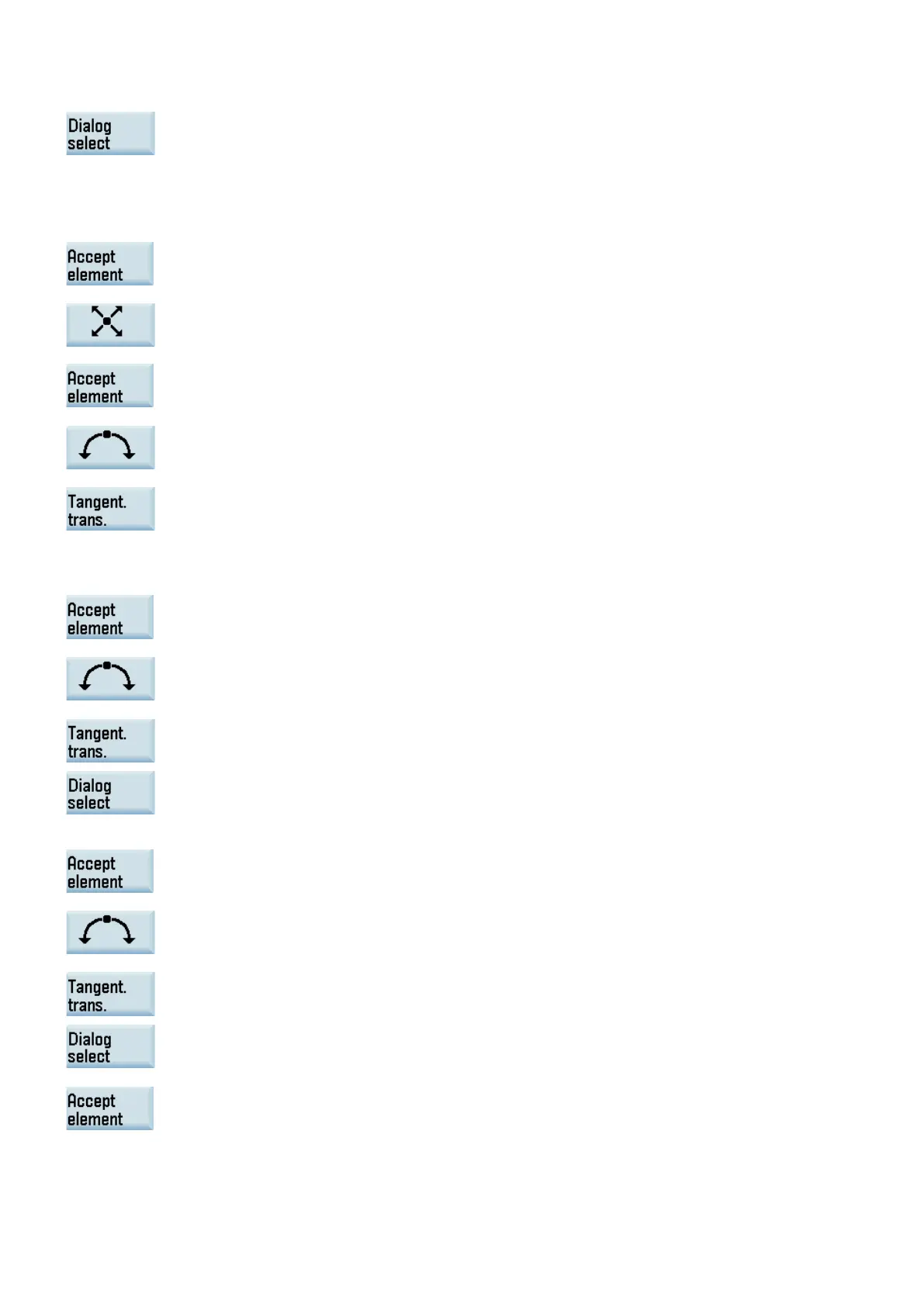

Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
•
Direction of rotation: counter-clockwise
•
R: 9.5
•
I: 0 abs.
•
RND: 2
8.
Press this softkey to confirm.
9.
Press this softkey to select a contour element of straight
line in any direction.
10.
Enter the parameters for this element and press this softkey to confirm.
•
α1: -30 °
11.
Press this softkey to select a contour element of circular arc.
12.
Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
•
Direction of rotation: clockwise
•
R: 2
•
J: 4.65 abs.
13.
Press this softkey to confirm.
14.
Press this softkey to select a contour element of circular arc.
15.
Enter the parameters for this element and press these softkeys to select the desired contour
characteristics.
•
Direction of rotation: counter-clockwise
•
R: 3.2
•
I: 11.5 abs.
•
J: 0 abs.
16.
Press this softkey to confirm.
17.
Press this softkey to select a c
ontour element of circular arc.
18.
Enter the parameters for this element and press these softkeys to select the desired contour
characteristics.
•
Direction of rotation: clockwise
•
R: 2
•
J: -4.65 abs.
19.
Press this softkey to confirm.
