Configuration
Start the "Viewer" application "mmcR.exe" on the remote PC.
If the default for the remote diagnosis port is changed, for example, due to firewall
settings when the port is activated for incoming packages only, select the
"Configuration" switch in the "RCS Viewer-Embedded (Remote Control System)"
window (see fig. 4-11).
The following window appears:

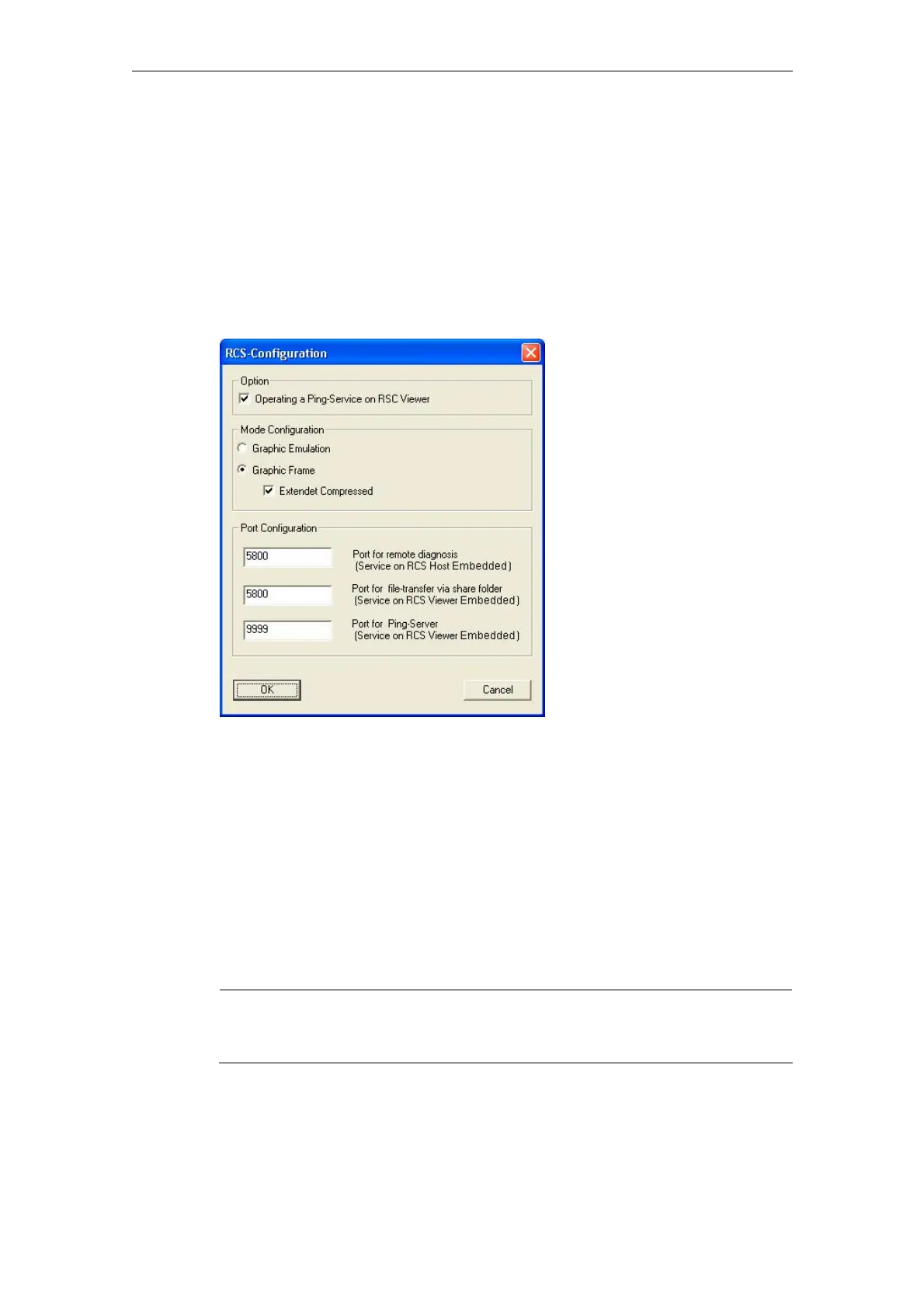

Fig. 4-10 Port setting
In the "Option" area, you can specify that a Ping server process is set up on the
RCS Viewer which will wait for the incoming "Pings".
Enter the port numbers in the "Port Configuration" area.
Further settings
Setting graphic transmission mode
The transmission mode for the screenshots is set in the "Mode Configuration" area.
"Graphic Frame" and "Extended Compressed" are the default settings and feature
the highest transmission rate for this remote diagnosis version.
Note
The field "Graphic Emulation" is not supported with SINUMERIK 840D sl.
