Starting Up HMI Embedded (IM2) 08/2005
9 Configure Windows in the NC Program
© Siemens AG, 2005. All rights reserved
IM2/9-132 SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
9.7 Example program 5: Inserting pictures
You also have the option of inserting graphics, e.g., pictures created with
Paintbrush, in the dialog screen by specifying a graphics file.
A comment text for the picture can also be preassigned via the Com file. You can
position this comment text by specifying position parameters.
Note
You can only move the picture itself by repositioning it in the graphics program.
Parts program
N10
MMC("CYCLES,PICTURE_ON,T_SK.COM,SCREEN8,GUD4.DEF,GRA.BMP,,
M1","S")
N20 MMC("CYCLES,PICTURE_OFF","N")
N30 M30
Dialog screen file
(*.COM)
//C8(SCREEN8)
(I///Insert picture no. 2///4000,3000,7500)
(I///Created with Paintbrush ///4000,3250,7500)
Text variable
M1 = ......Example5: Insert picture…..
Pictures are created, e.g., with the drawing tool "Paintbrush".
Picture size: 300X500 pixels, you can only change the picture size in Paintbrush.

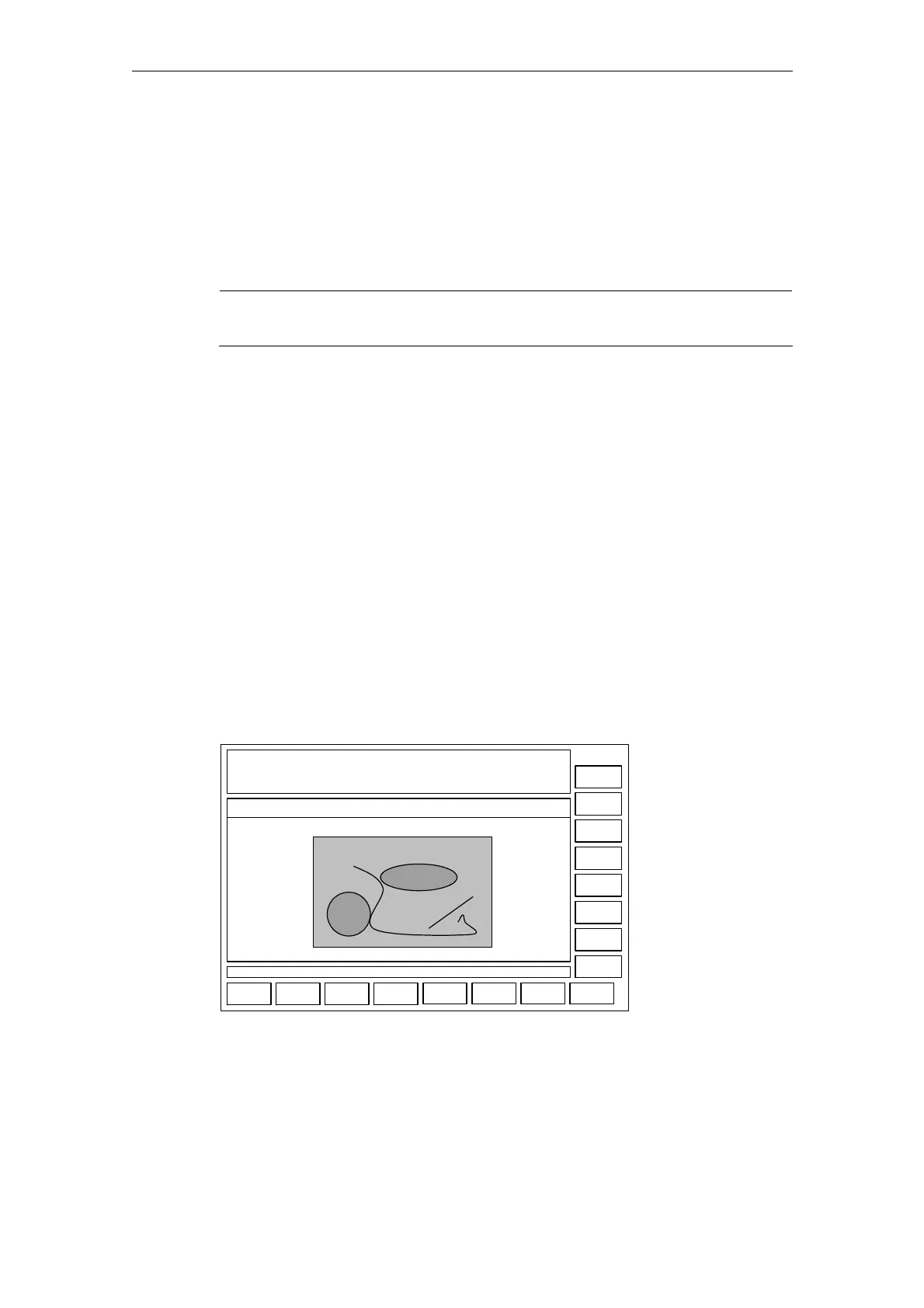

Example 5: Inserted pictures
OK
