08/2005 Expanding the Operator Interface (BE1)
3 Syntax
© Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
BE1/3-29
3.3.3 Screen form elements
Input/output
fields
Short text
Graphics text
Unit
text
Form
element
Display line
with
long text
Main body
of the form

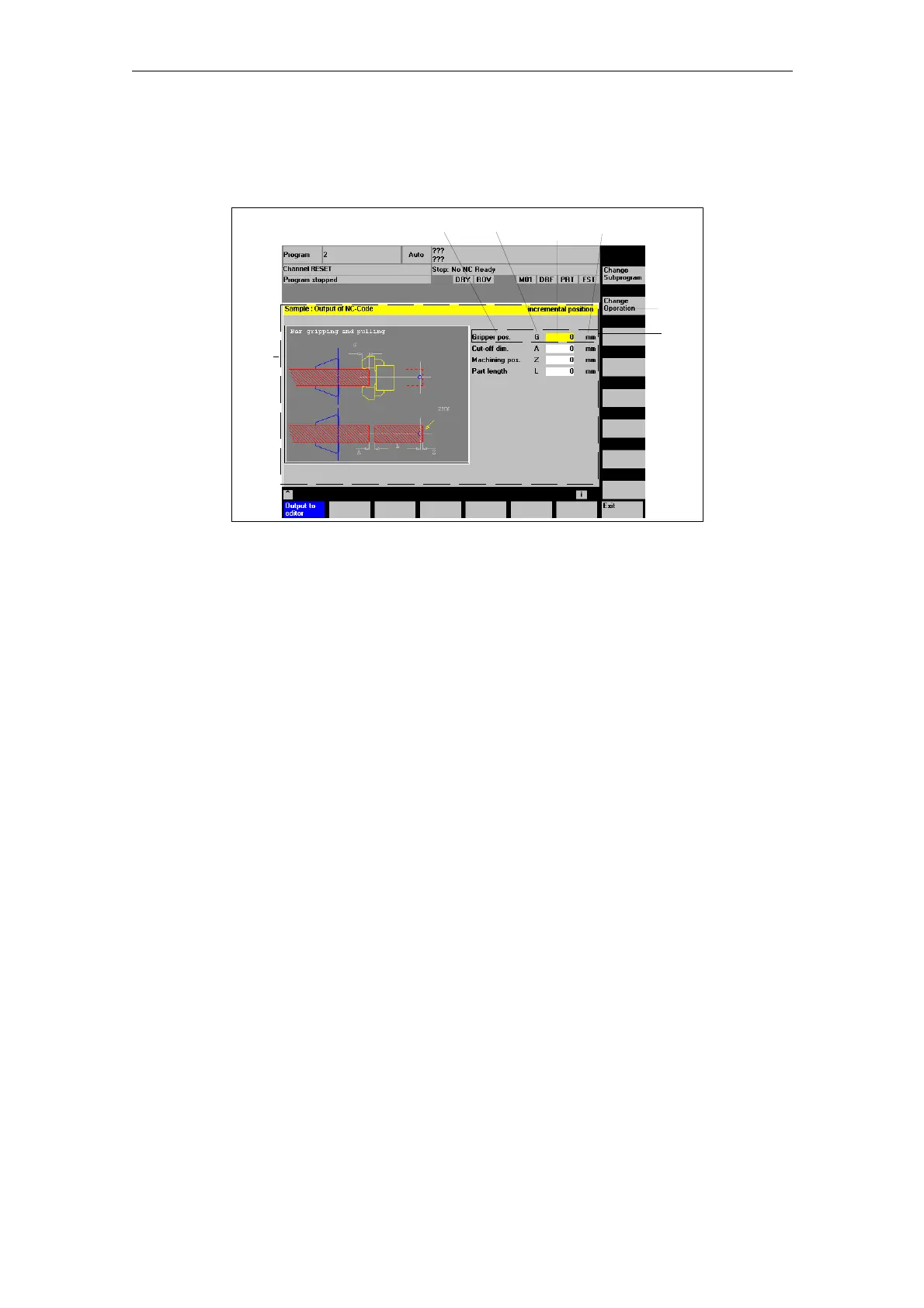

Screen form elements fill lines in the main body of the form. One or several screen
form elements can be defined in each line (see also "Multi-column screen forms").
The term "screen form element" refers to the visible part of a variable, i.e., short
text, graphics text, input/output field (I/O field) and unit text.
All variables are valid only in the active screen form. Properties are assigned to a
variable when it is defined.
The values of form screen properties can be accessed within methods (e.g., a
PRESS block). See Subsection 3.3.9.
Defining variables
DEF Identifier =
1
(Variable type
2
/[limit values or toggle field or table identifier]
3
/
[Default]
4
/[Texts (Long text, Short text|Image, Graphics text, Units text)]
5
/[Attributes]
6
/[Help display]
7
/[System or user variable]
8
/[Position of short text]
9
/[Position I/O field(Left, Top, Width, Height)]
