08/2005 Starting Up HMI Embedded (IM2)
4 Functions/Parameterization
© Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
IM2/4-73
Click "OK" to save your settings. The following dialog appears in the next window:
"The port number has been stored.
Please, restart your application."
When you click "OK", the system is restarted.
4.17.3 Start remote diagnosis
NCU 7x0 (host)
Activate the "RCS Host Embedded" in the "Diagnosis" operating area via the
"Remote diagnosis" and "Start" soft keys.
Status messages provide information on the current state.
When the connection to the remote PC is established, the NCU 7x0 waits for the
"Viewer“ application (mmcR.exe) to be started on the remote PC and the
communication for the data exchange to be activated.
The message: "Ping server responds" appears.
This communication is performed via remote diagnosis which, per default, is
applied to port number 5800.
When the message "Communication running" appears, operation of the machine
from the remote PC is possible.
Remote PC (viewer)
The RCS-Viewer can be started either via the start menu or through a double-click
on the "mmcR.exe" file.
If a "Ping" server is operated, then the IP address of the NCU 7x0 (Ethernet
interface X130) is known on the remote PC after the first "Ping" has been received
(e.g.: 147.54.235.46).
If no Ping server is available, enter the address manually.

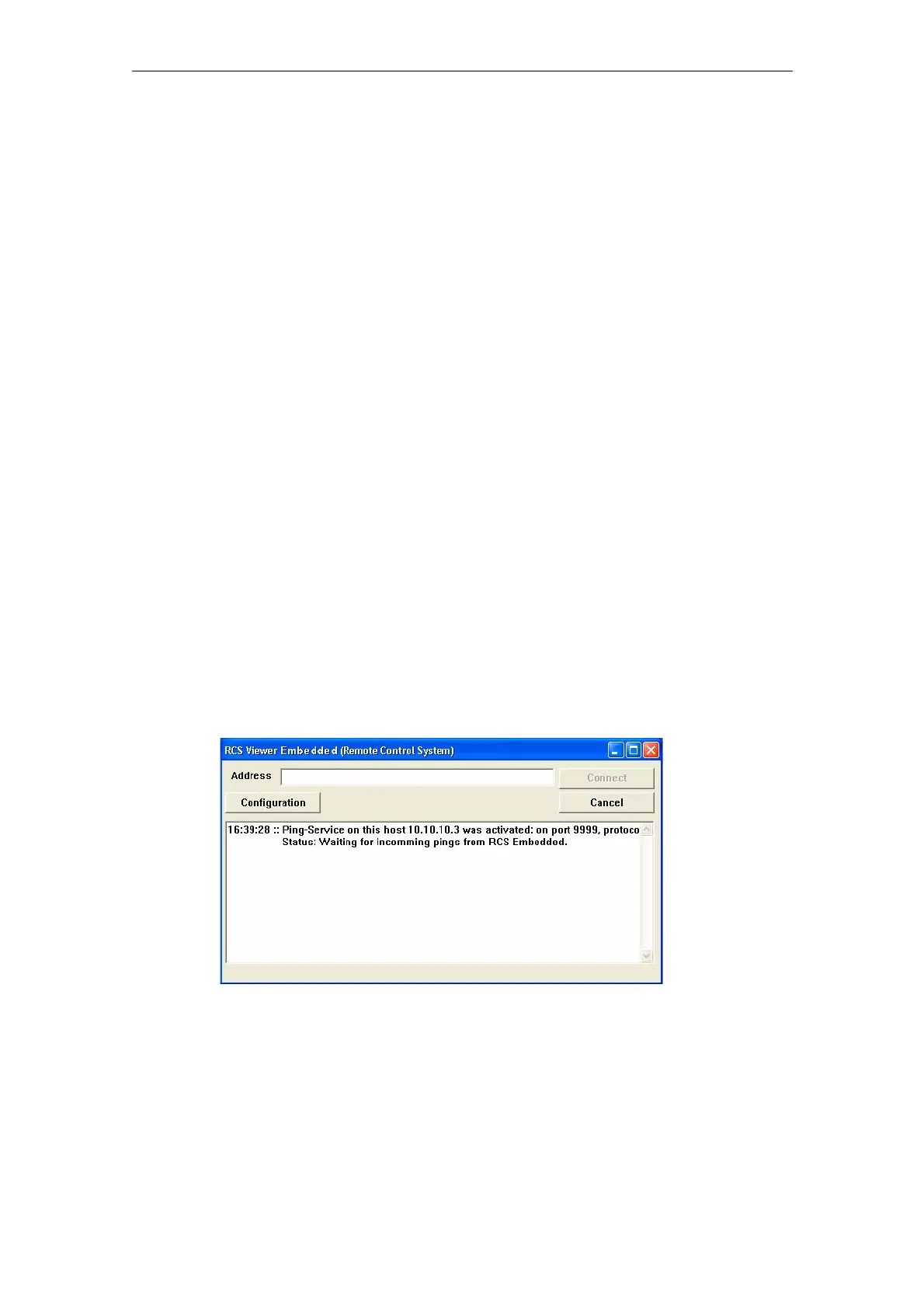

Fig. 4-11 RCS-Viewer waiting for incoming "Pings"
When you click the "Connect" button, the connection with the machine is activated
via the remote diagnosis port. The corresponding status messages are output in
the field below. When these are completed, the dialog is minimized and the HMI-
Embedded interface appears.
