08/2005 Starting Up HMI Embedded (IM2)
4 Functions/Parameterization
© Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl/840D/840Di/810D HMI Installation and Start-Up Guide (IAM) – 08/2005 Edition
IM2/4-71
Option: "RCS service partner operates a Ping server" deactivated
This option should only be deselected when the initiative for the remote diagnosis
is to come from the remote PC (e.g. when the remote PC and the NCU 7x0 are in
the same Intranet and an individual NCU 7x0 in the LAN is to be accessed from a
PC).
When this option is deactivated, no other entries are possible.
Pressing the "Save" soft key terminates the configuration of the server.
Connections for data exchange (file transfer)
In order to be able to perform a file transfer, connection entries
(\\<remote_ip>\<share folder name>) are automatically made by the system for the
remote diagnosis. These connection entries are used by the "logical drives".
If, from the eight possible "logical drives", no connection is available,
switch to the "Start-up" operating area, press the soft key "Connections" and delete
a connection entry.
4.17.2 Installing and configuring "RCS Viewer Embedded"
Precondition
• Remote diagnosis CD with the "RCS Viewer Embedded" software
• Logical drives for the file transfer
Installation
The Diagnosis is installed by running the "setup.exe" setup program.

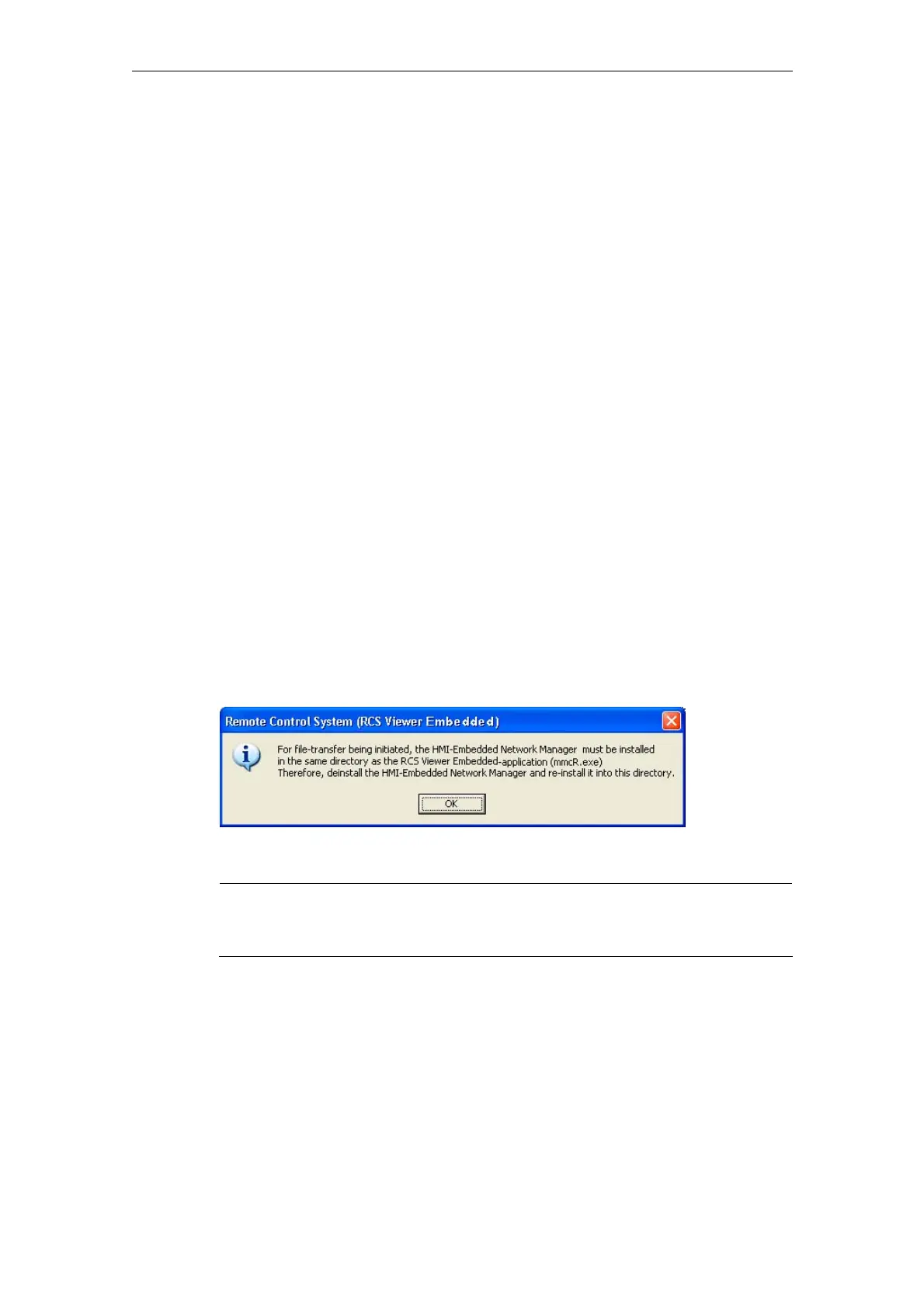

Fig. 4-9 Message
Acknowledge the message.
Note
The Network Manager is not required with SINUMERIK 840D sl.
