Creating an F-capable PLC data type
An F-capable PLC data type must be used as basis for an F-capable PLC variable. Proceed as
follows to create and F-capable PLC data type:
1. In the project navigation below "PLC data types" double-click on the entry "Add new data
type".
Dialog "Add new PLC data type" opens.

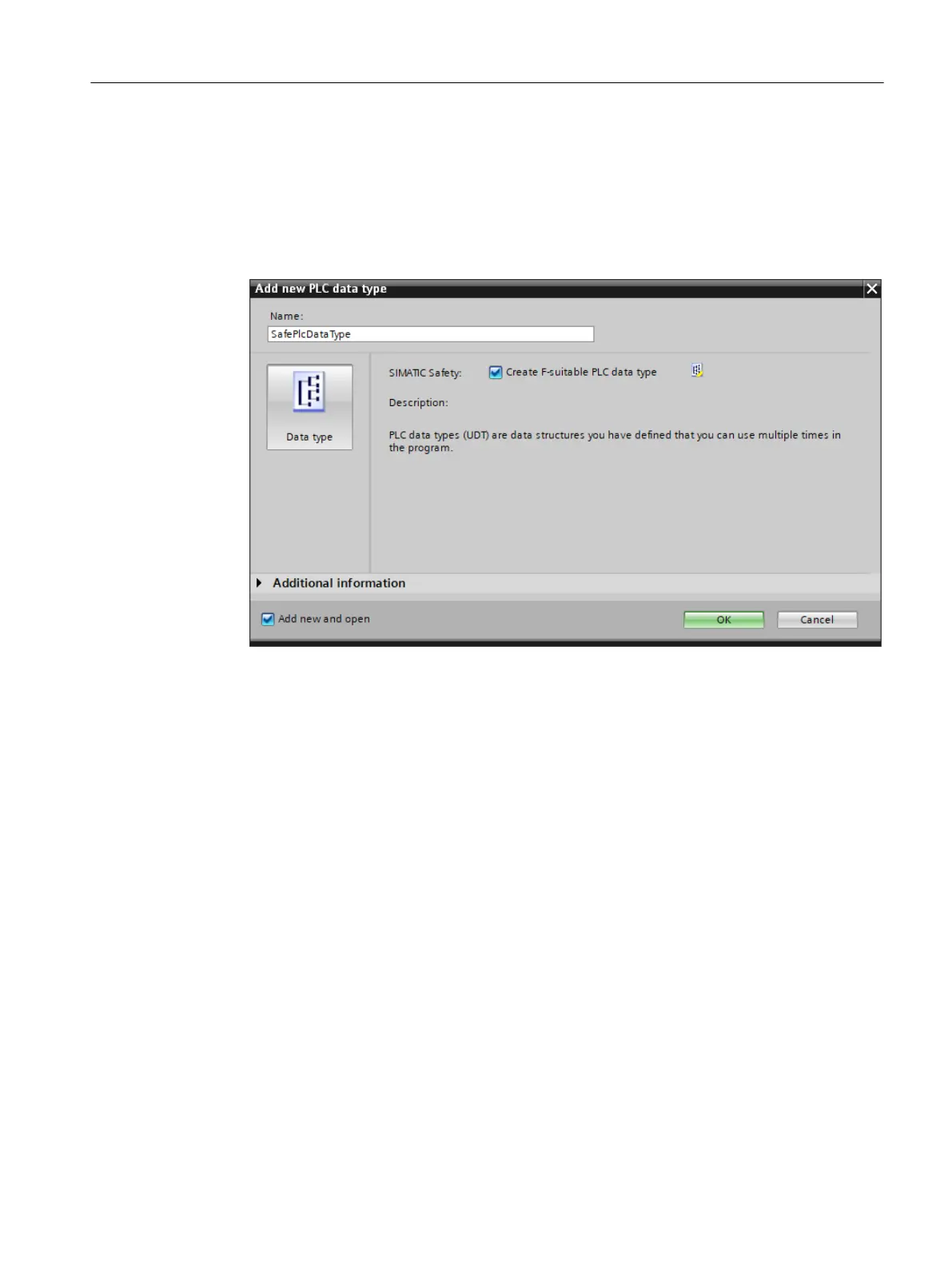

Figure 6-3 New data type
2. Enter a descriptive name in the name field for the new data type, e.g. "SafePLCDataType".
Commissioning and configuring
6.3 Generating a safety program
Safety Integrated (with SINAMICS S120)
Commissioning Manual, 02/2020, A5E46305916B AB 229
