INS
Signal to
Basic unit

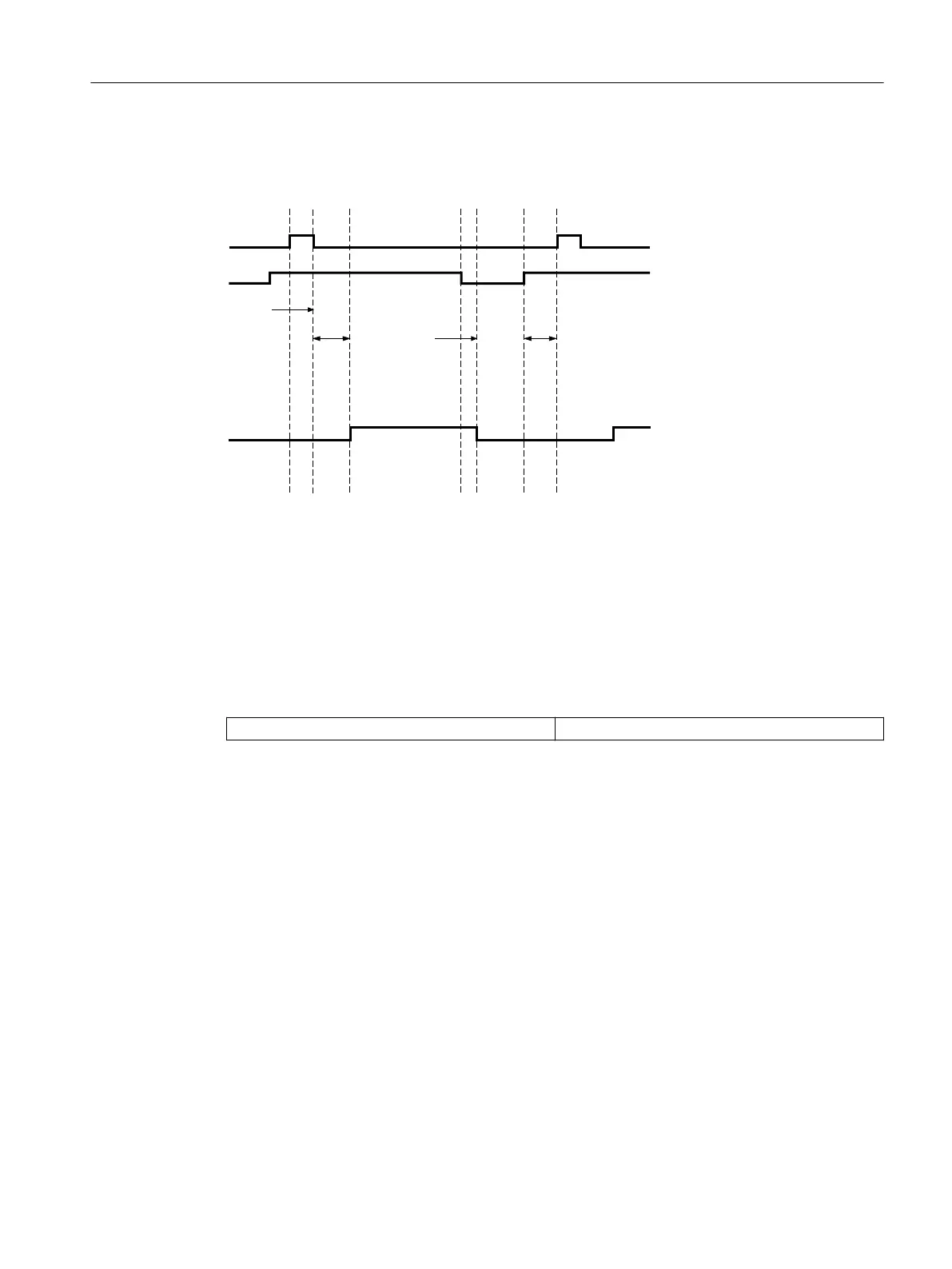

3SK1220 Monitored start
InputsOutputs
IN1/IN2 (sensor
circuit)
30 ms
20 ms
150 ms
35 ms
5.5.2 Power supply 3SK1230
5.5.2.1 Device features
Article number
3SK1230-xAW20 110 ... 240 V AC/DC
x = 1: Screw-type terminal; x = 2: Spring-loaded (push-in) terminal
Device properties:
• Wide-range input: 110 ... 240 V AC/DC
• Rated output voltage: 24 V DC
• Rated output current: 0.6 A
• 1 LED for status display
• Connection interface
• Enclosure width 22.5 mm
• Removable terminals
3SK1 / 3RQ1 devices
5.5 3SK1 input expansions
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005 107
