Procedure

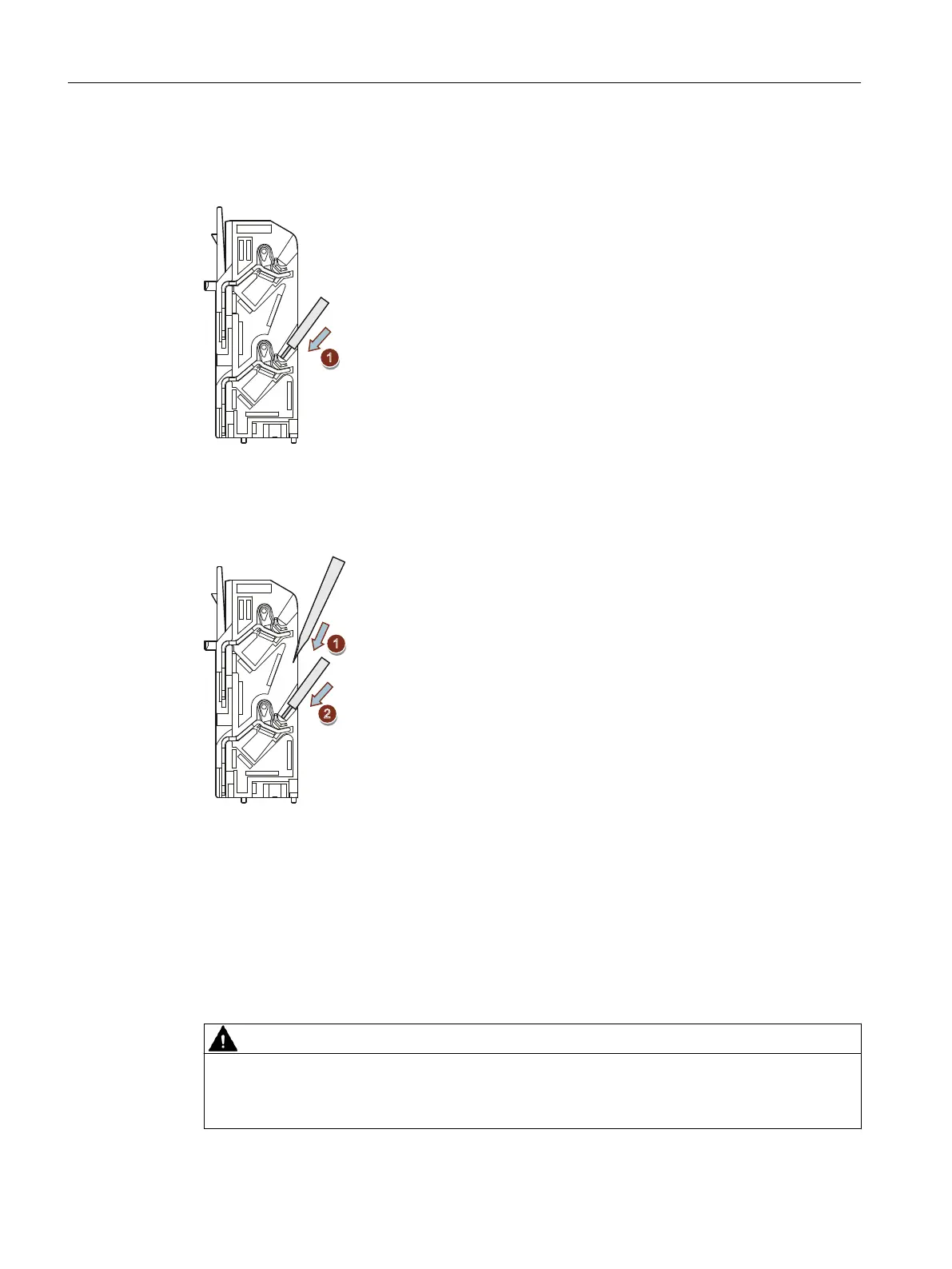

Rigid cables or cables equipped with end sleeves
1. Insert the cable into the oval opening as far as it will go.
2. Pull on the cable to ensure it is tight.
Finely-stranded cables
1. Insert the screwdriver in the rectangular opening to open the terminal (oval opening).
2. Insert the cable as far as it will go into the oval opening and remove the screwdriver.
3. Pull on the cable to ensure it is tight.
8.2.10 Disconnect the spring-loaded (push-in) terminal
WARNING
Hazardous Voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Connection
8.2 22.5 mm/17.5 mm devices
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
162 Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005
