7.13 Removing 22.5 mm/17.5 mm devices with device connectors from
the wall
WARNING
Hazardous Voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
• The terminals have been removed or disconnected.
Procedure

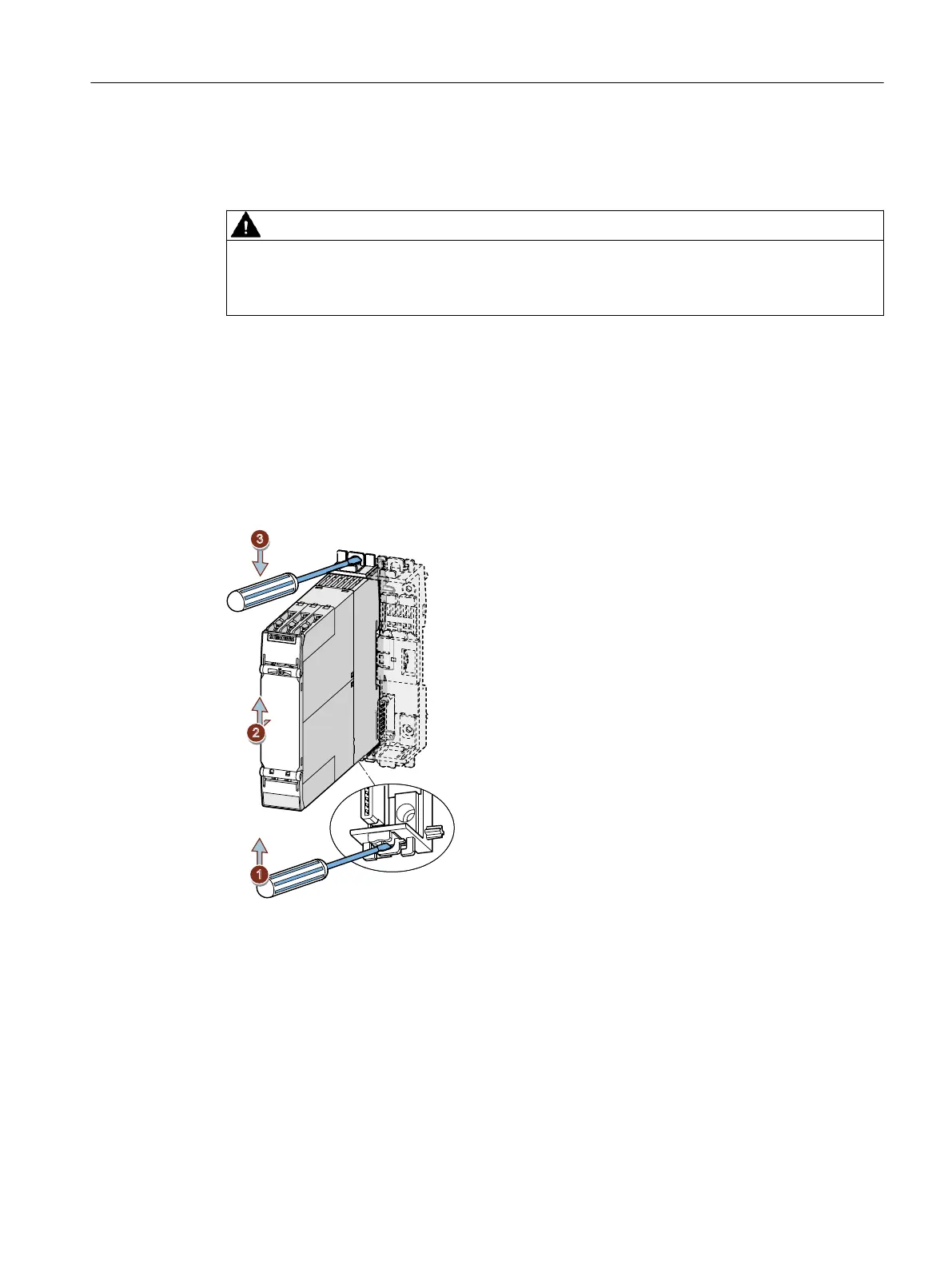

The gures show 22.5 mm devices. The 17.5 mm devices are removed correspondingly.
1. Unlock the device (below) using a screwdriver.
2. Pull the lower half of the device away from the device connector.
Mounting
7.13 Removing 22.5 mm/17.5 mm devices with device connectors from the wall
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005 147
