Terminal Explanation
INF Feedback circuit
INK Cascading circuit
T1 Test output 1 (for IN1, PAR)
T2 Test output 2 (for IN2, INF)
Q1 Safety-related output 1
(switching to P potential, 24 V DC)
5.2.10.4 Status diagrams

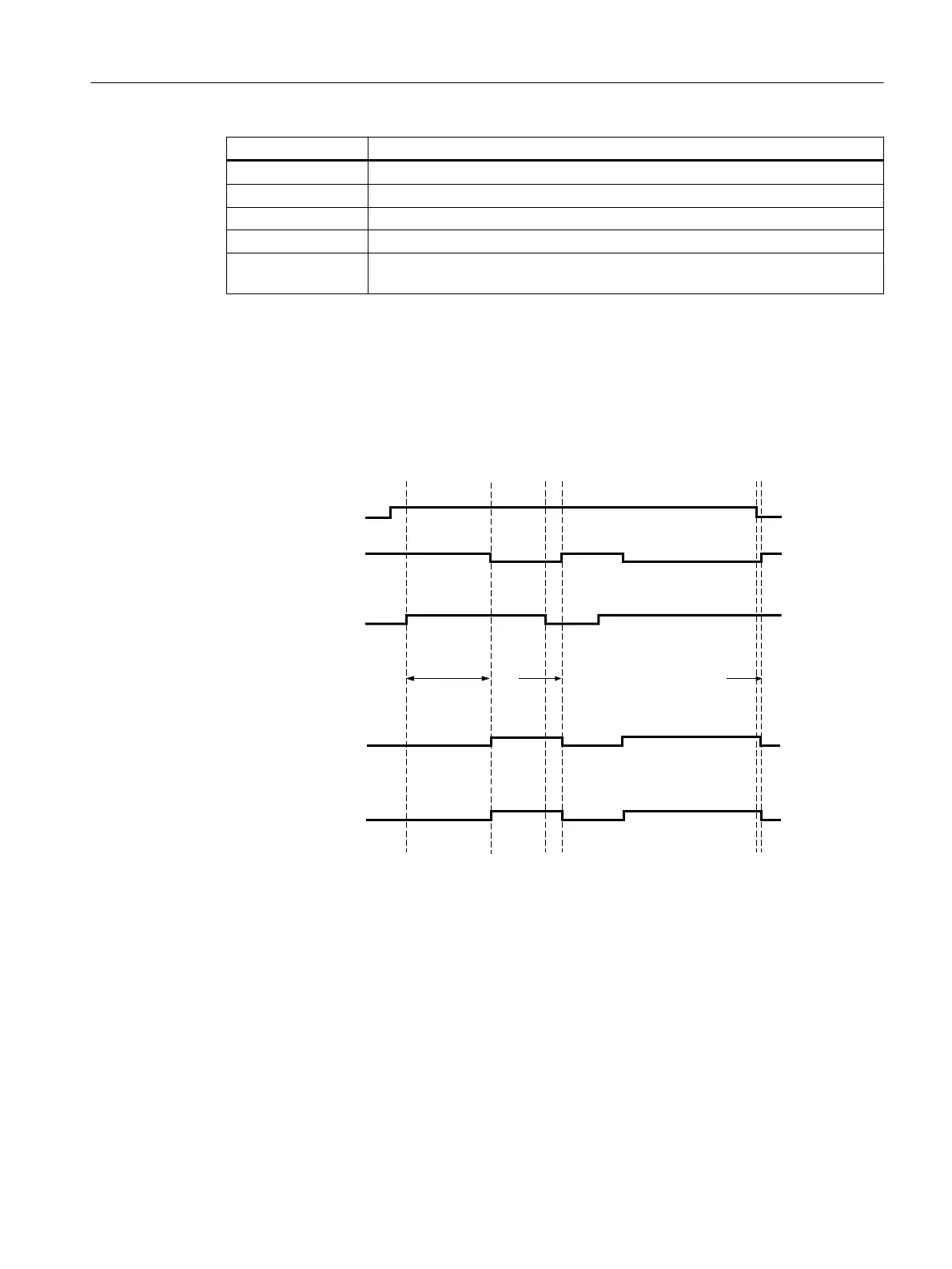

State diagrams 3SK1120-xAB40
INF (feedback
circuit)
A1/A2
Safety-related
outputs
Signaling
output
3SK1120-xAB40 Autostart
Inputsoutputs
IN1/IN2
(sensor circuit)
or
INK
30 ms
0 ms
80 ms
