8.3 Devices 90 mm
8.3.1 Opening the terminal cover
WARNING
Hazardous voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.

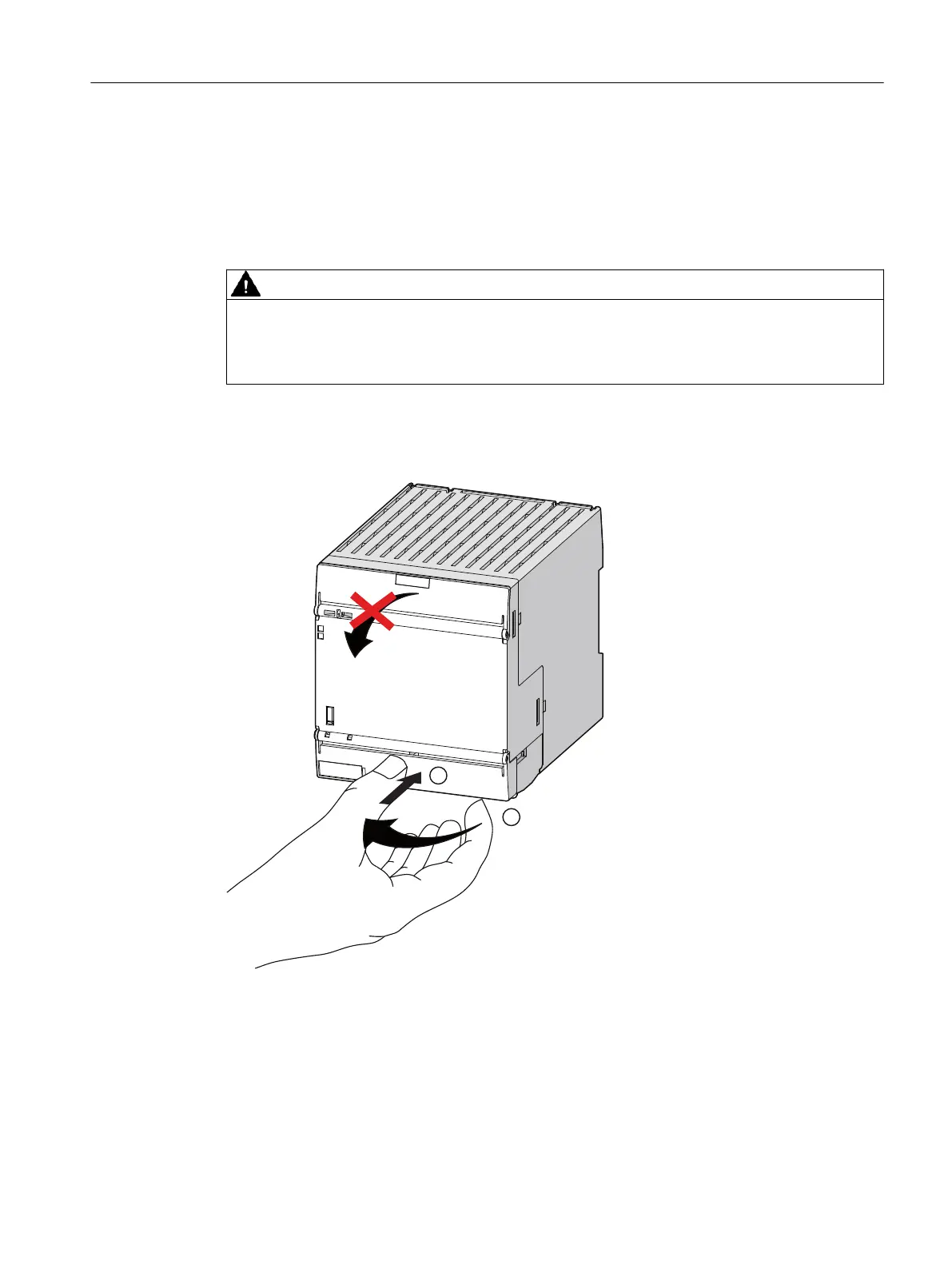

Positions of the terminals and opening the terminal cover
Ther removable terminals are located under the lower terminal cover.
To open the terminal cover, press on it in the middle ① and lift it up ②.
Connection
8.3 Devices 90 mm
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005 167
