Push-in terminals Disconnecting the conductor

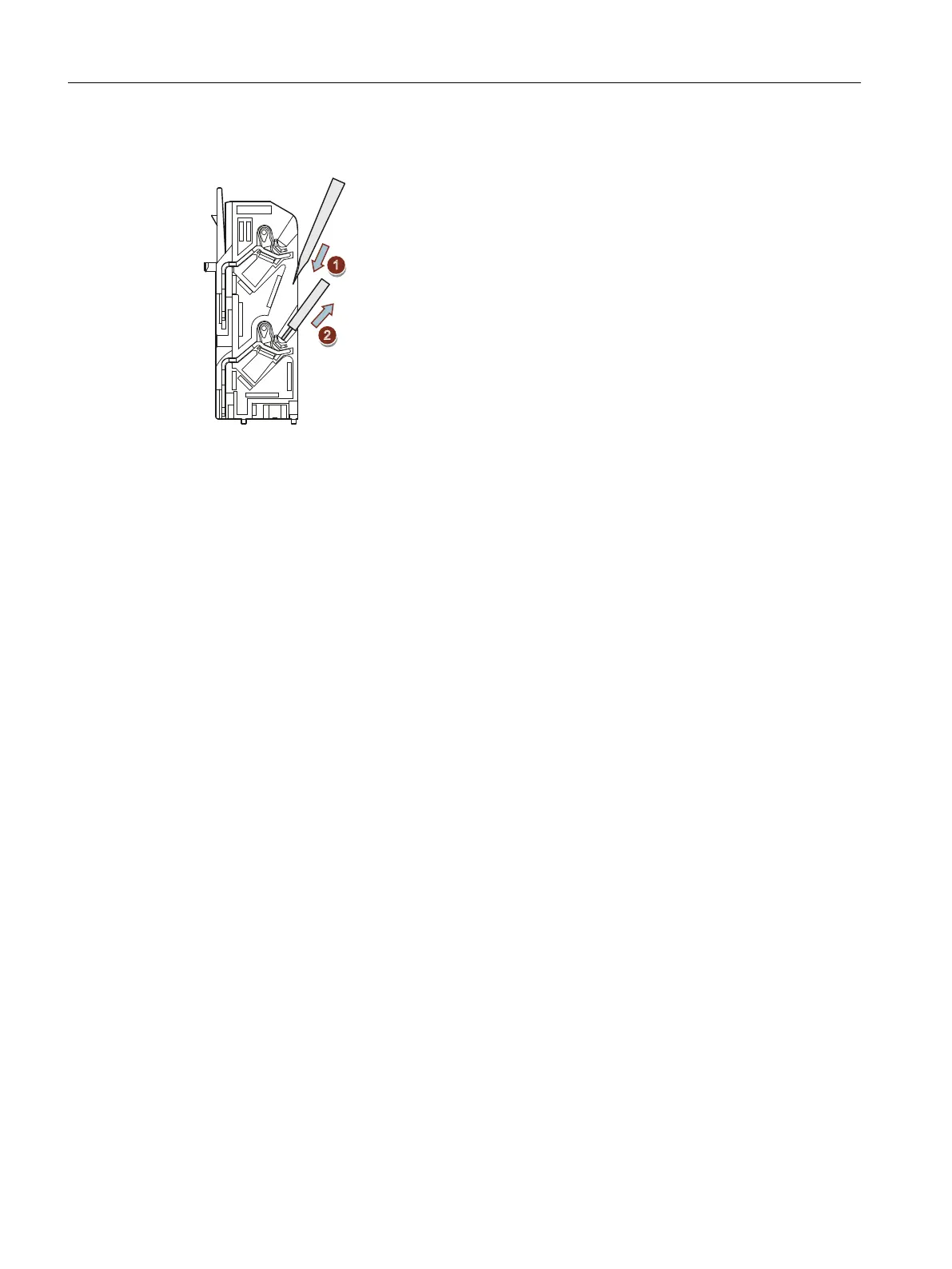

1. Insert the screwdriver into the rectangular opening of the push-in terminal until it engages.
Please observe a 10° horizontal angular deviation of the screwdriver to the oval opening.
2. Remove the cable from the oval opening.
3. Remove the screwdriver.
Connection
8.2 22.5 mm/17.5 mm devices
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
166 Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005
