Note
In the con󹪝guration with a 3SK1 Advanced basic unit on a 3ZY12 device connector, 3RM1
Failsafe motor starters can only be controlled by the instantaneous enable signal of the 3SK1
unit. If control of the 3RM1 Failsafe motor starter by means of the time-delayed output is desired,
this can only be done by wiring the time-delayed safety-related outputs of the 3SK1 basic unit.
Information about start response in the system con󹪝guration of 3SK1 Advanced units can be
found in the chapter "Explanations of device function (Page 176)".
6.1.3 Maximum system con󹪝guration
Changes to the system con󹪝guration
Changes to the system con󹪝guration in safety mode always result in a device error. Restarting,
by disconnecting and reconnecting the operating voltage (Power OFF/ON), is a mandatory
requirement.
Maximum system con󹪝guration when supplying with 24 V DC on the basic unit
WARNING
Only one 3SK1 basic unit is permitted per system
The safety function is not guaranteed when more than one basic unit is used.

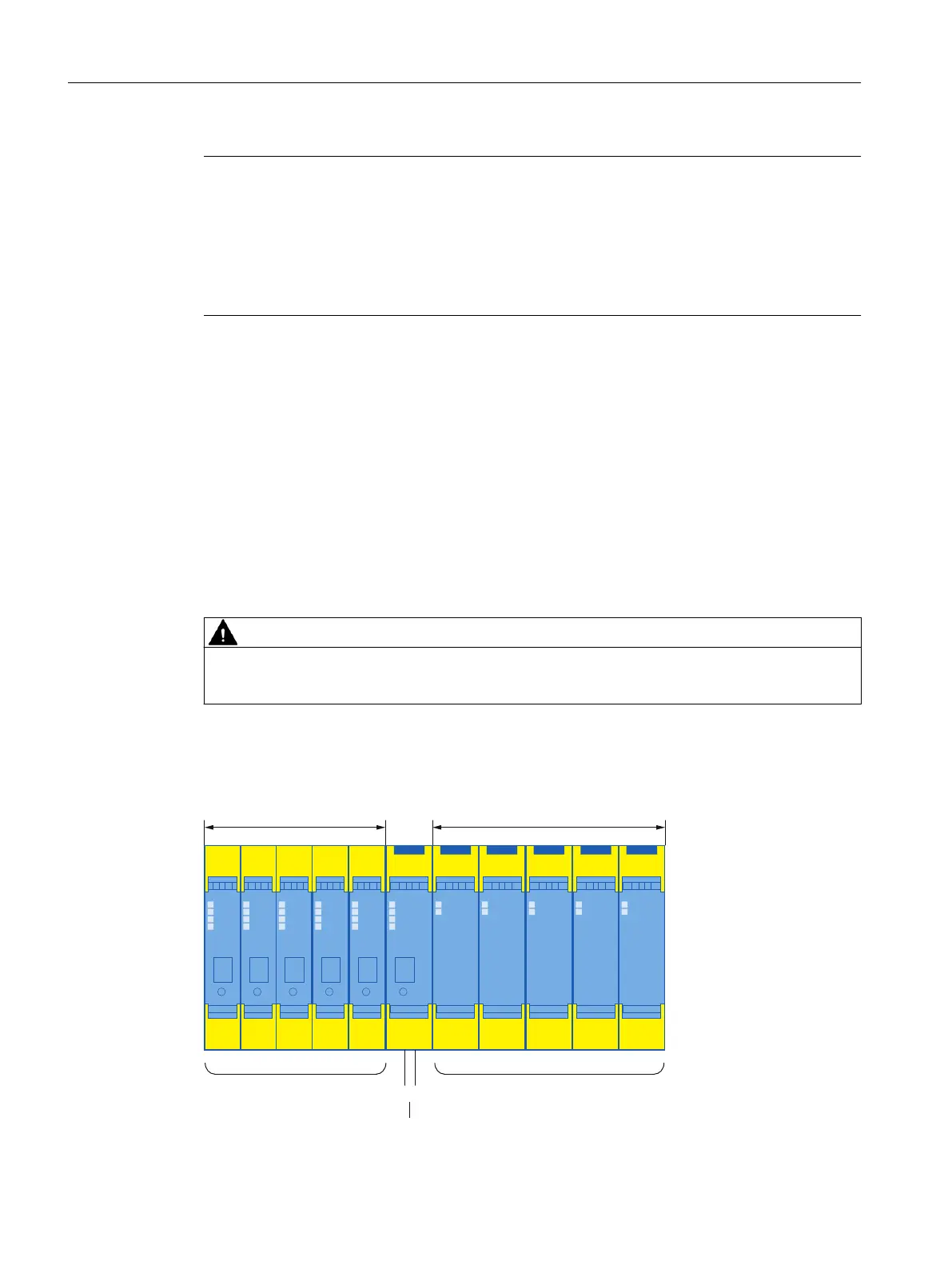

Connection of 24 V DC to the basic unit:
A maximum of 5 expansions are permitted on the left of the basic unit and 5 expansions on the
right.
DC 24 V
L+ L-
5 at the most
Input expansion
3SK1
Output expansion
5 at the most
System con󹪝guration
