Siemens SIRIUS 3SK1

5.2.7.2 Design











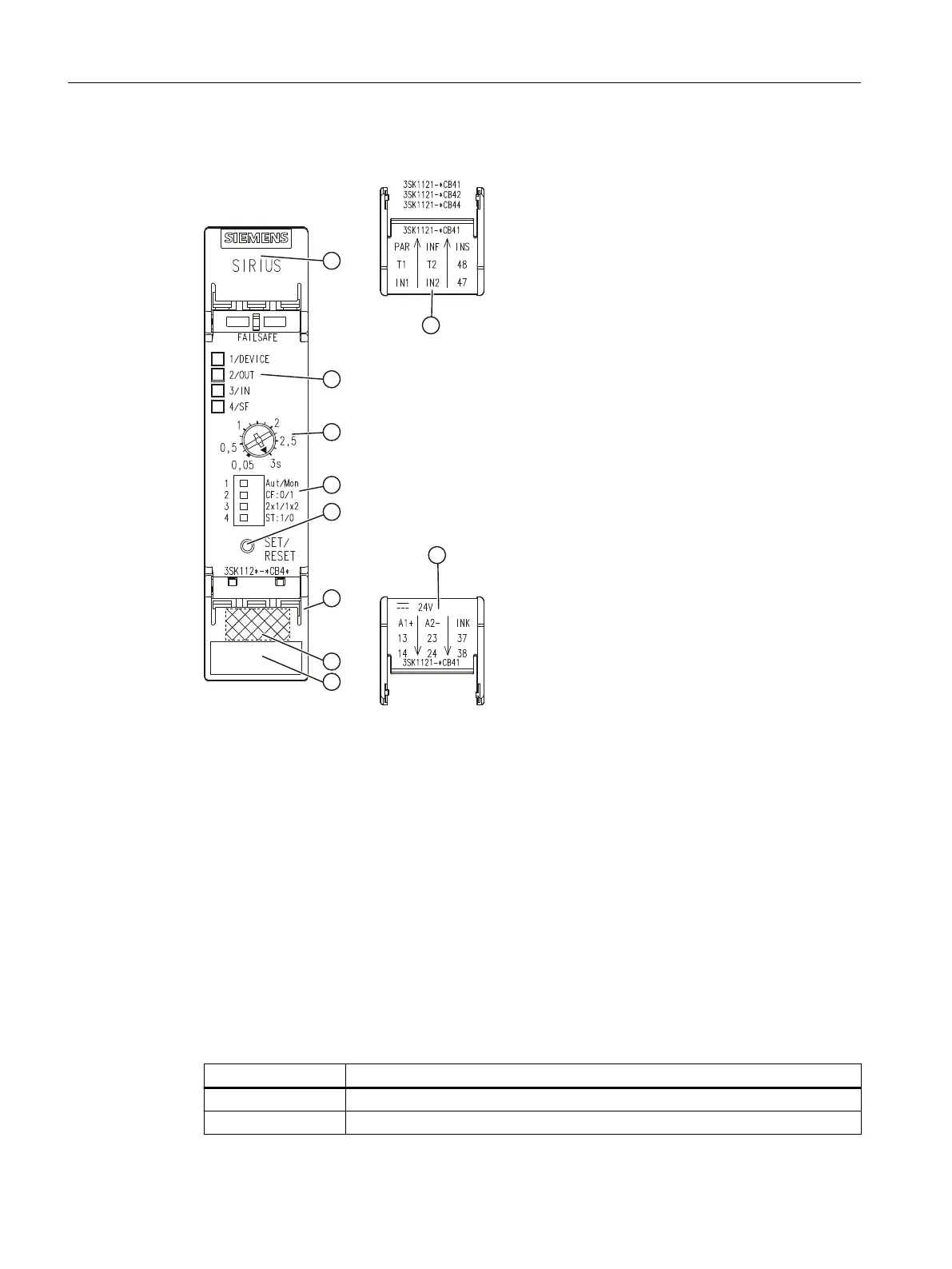

① Top cover 󹪞ap
② Top cover 󹪞ap; internal inscription
③ Display LEDs
④ Potentiometer for setting the delay time
⑤ DIP switch
⑥ SET/RESET button
⑦ Bottom cover 󹪞ap
⑧ Bottom cover 󹪞ap; internal inscription
⑨ DataMatrix code
⑩ Device identi󹪝cation label
5.2.7.3 Terminal assignment
Terminal Explanation
A1 +
A2 -
3SK1 / 3RQ1 devices
