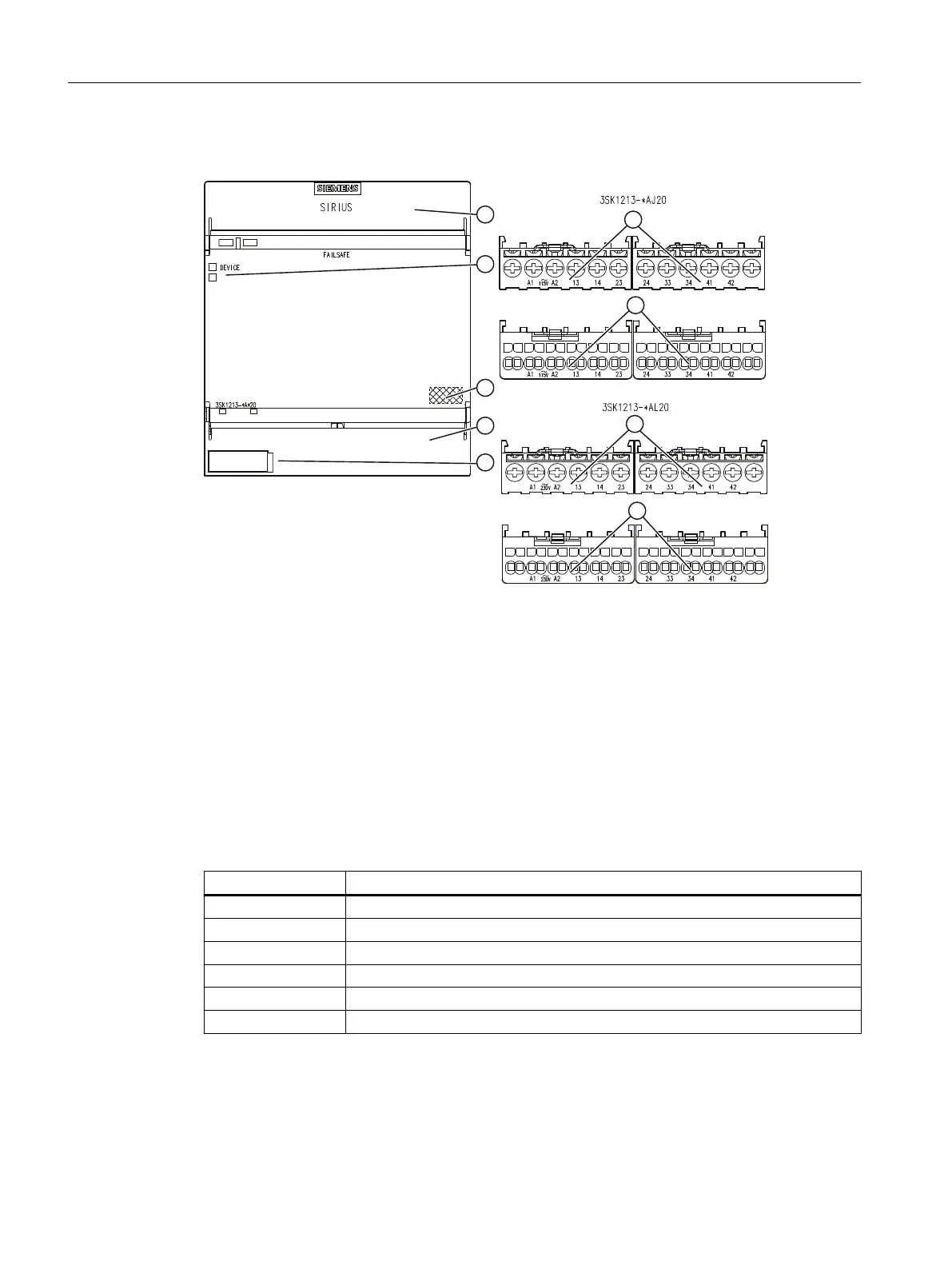

5.3.6.3 Design of 3SK1213-.A.20









① Top cover 󹪞ap
② Display LEDs
③ DataMatrix code
④ Bottom cover 󹪞ap
⑤ Device identi󹪝cation label
⑥ Screw-type terminals
⑦ Spring-loaded terminal
5.3.6.4 Terminal assignment
Terminal Description
A1 +
A2 -
13 - 14 Safety-related output 1 (NO contact, relay contact)
23 - 24 Safety-related output 2 (NO contact, relay contact)
33 - 34 Safety-related output 3 (NO contact, relay contact)
41 - 42 NC circuit as feedback contact (NC, relay contact)
