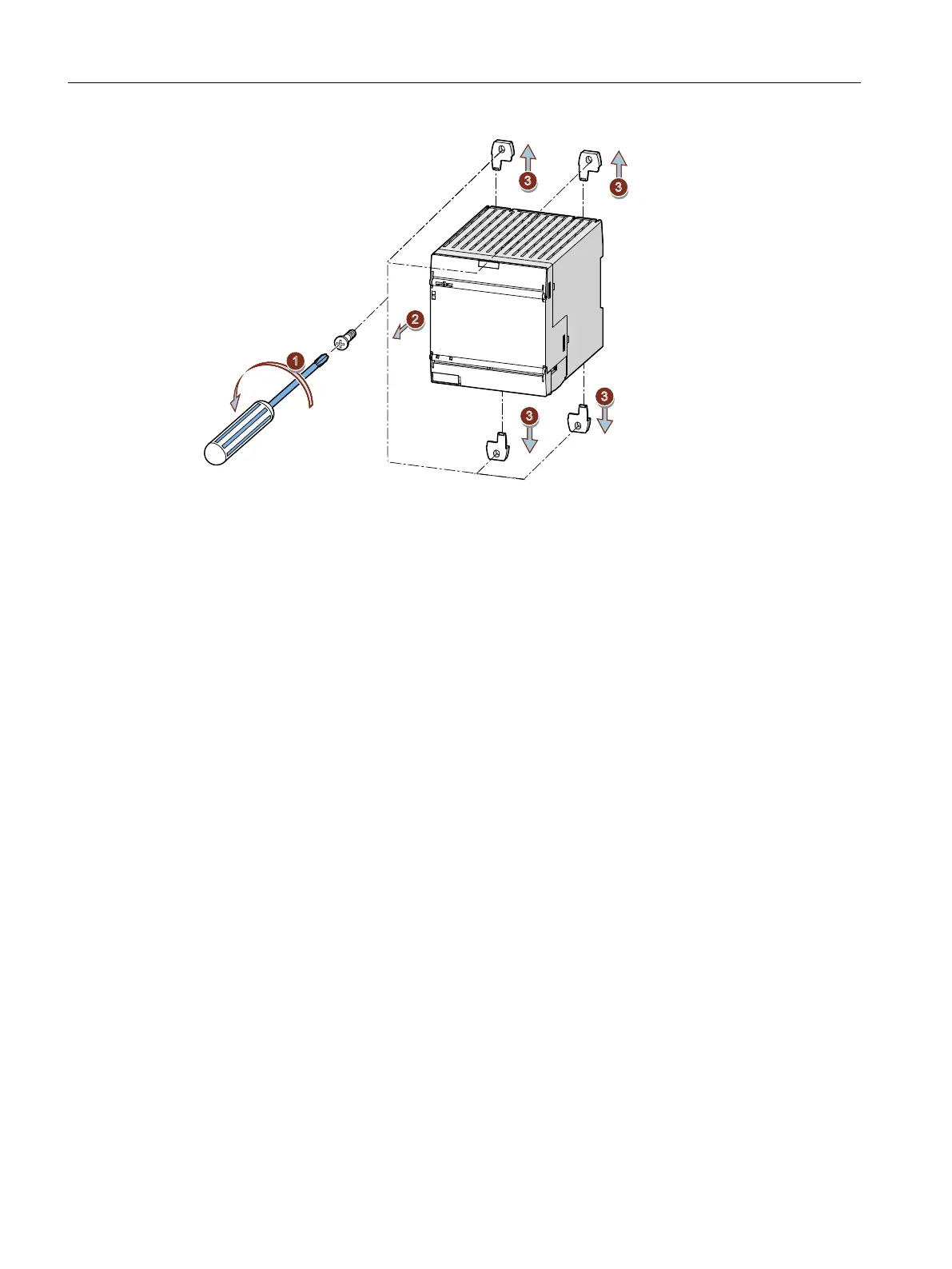

Figure 7-6 Disassembling 90 mm devices
1. Hold the device rmly.
2. Unscrew the cap screws.
3. Lift the device from the level surface.
4. Remove the push-in lugs from the device.
Mounting
7.4 Disassembling devices from a level surface
