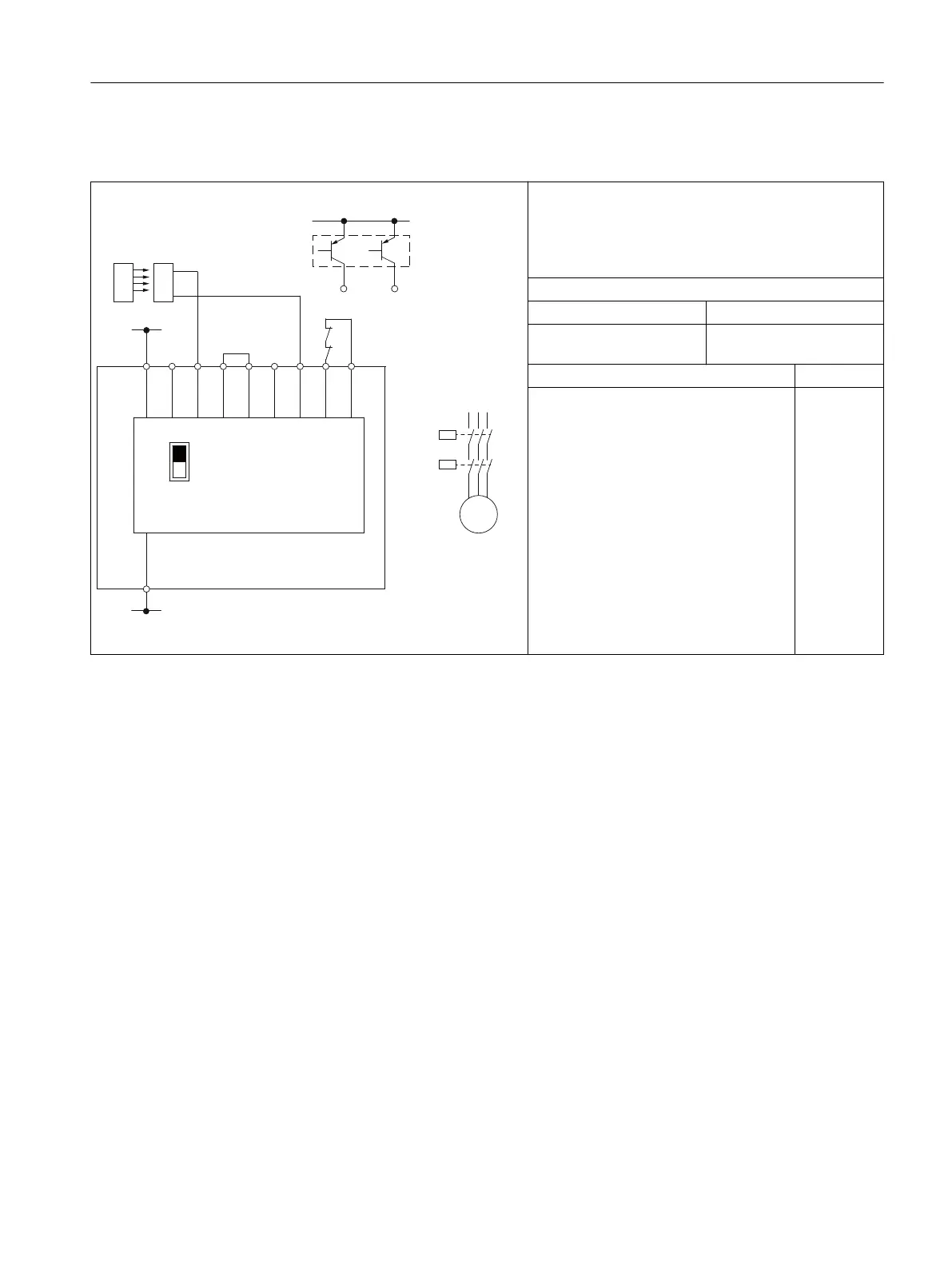

Table 14-7 Typical circuit 7:
Sensors with solid-state outputs, without cross-circuit detection, with autostart


,1,1
/
)6
,1

$
,1,177,177

$
$XWR
0RQLWRUHG
4
4Q
/
/
4
4Q
0
• Autostart
• Without cross-circuit detection
• Sensor: 2-channel non-󹪞oating
• 3SK1111-.AB30 Standard relay
Slide switch
Auto Monitored
ON
Top
—
Up to PL in accordance with ISO 13849-1 e
Up to Safety Integrity Level (SILCL) to
IEC 62061
3
Circuit diagrams
14.3 Typical circuits
