Note
Single-channel connection
If only one single-channel sensor is used, the other sensor circuit must be jumpered.

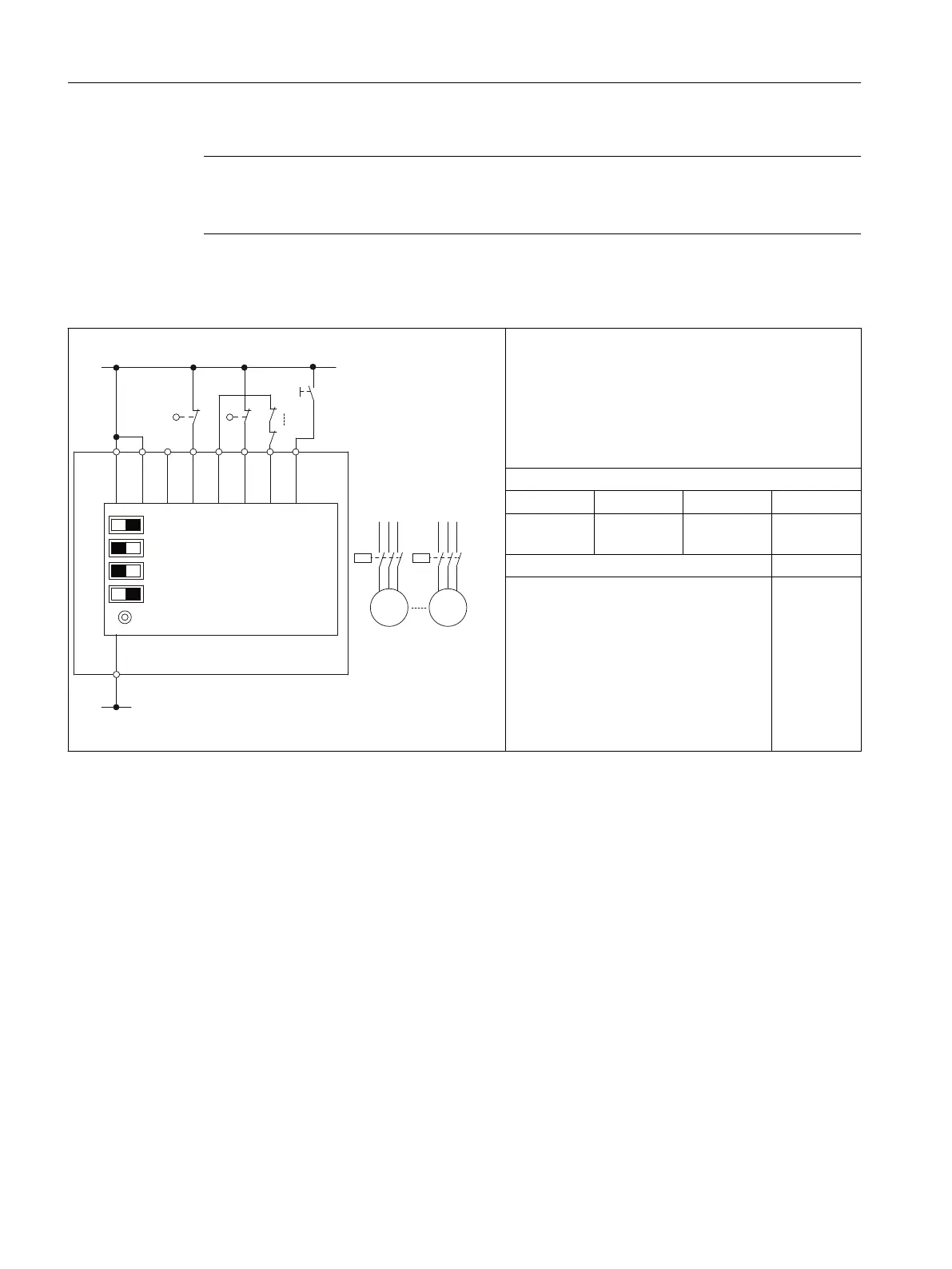

Table 14-12 Typical circuit 12: 2 x single-channel, without cross-circuit detection, with monitored start
/
/
4
4Q
,1,17,1),167

$

$
,1.
$XWRVWDUW0RQLWRUHG6WDUW
&URVVIDXOWGHWHFWLRQ2))21
VLQJOHFKVHQVRUVGRXEOHFKVHQVRU
6WDUWXS7HVW\HVQR
6(75(6(7




4
0
4Q
0
• Monitored start
• Without cross-circuit detection
• 2 x single-channel
• Sensor: 2 x single-channel NC sensors
• 3SK1112 Standard solid-state and
3SK112 / 3SK122 Advanced
DIP switch
1 2 3 4
ON
Right
OFF
Left
OFF
Left
—
Up to PL in accordance with ISO 13849-1 c
Up to Safety Integrity Level (SILCL) to
IEC 62061
1
Circuit diagrams
14.3 Typical circuits
SIRIUS 3SK1 Safety Relays and 3RQ1 Positively-Driven Coupling Relays
218 Equipment Manual, 05/2021, A5E02526190021A/RS-AE/005
