Commissioning
4.4 Creating a project offline in Startdrive
Commissioning with Startdrive
90 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
If the "Open device view" option is activated, then the drive unit is immediately created in
the device view.

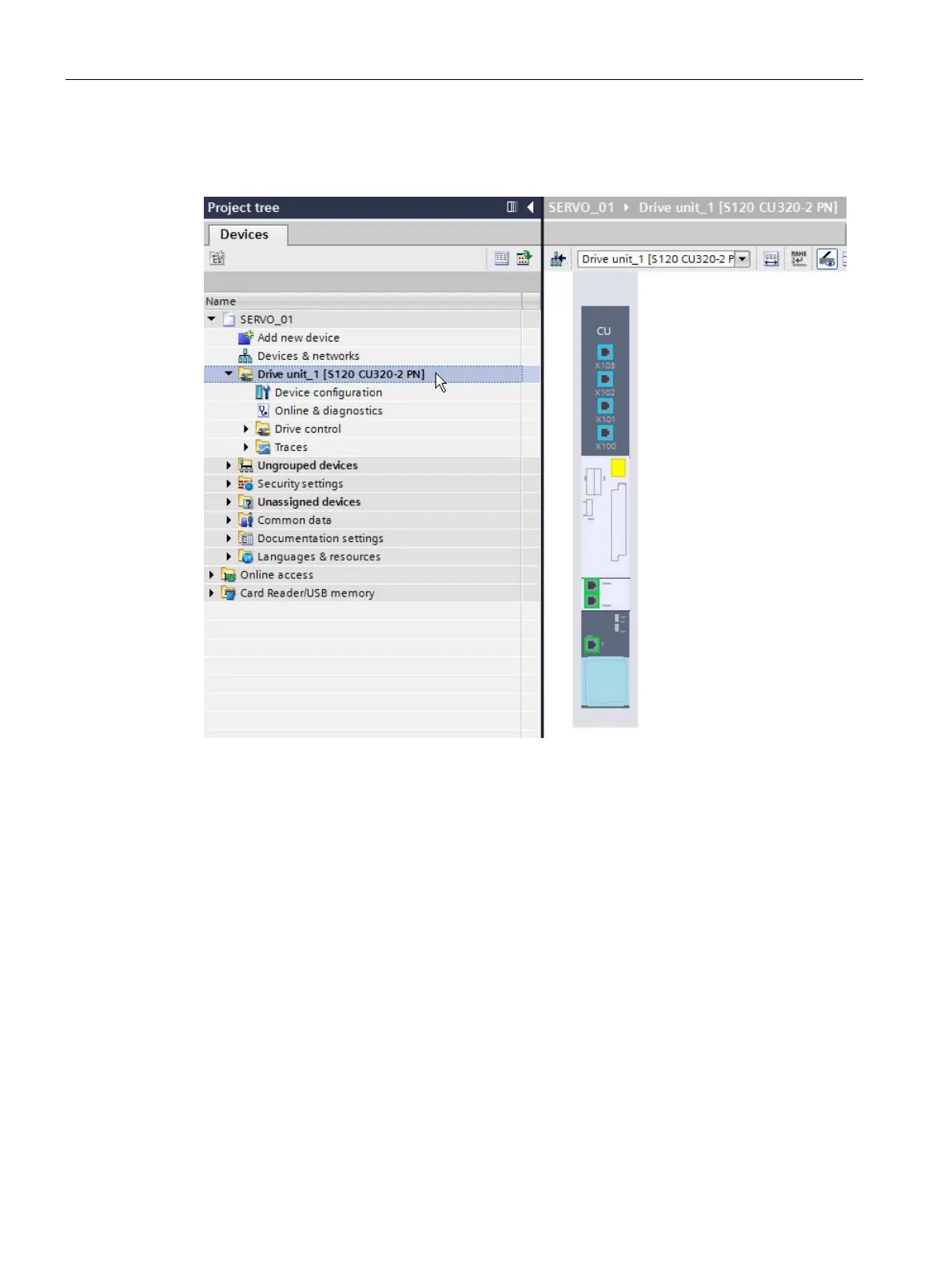

Figure 4-7 Inserting a drive unit
Inserting a device in the network view
Alternatively, you can insert a drive unit in the network view.
1. Open the network view in the project view.
2. Drag and drop the device from the hardware catalog to the network view.
