Line Connection Booksize
2.11 Line reactors for Smart Line Modules
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
105
2.11.3 Connection description

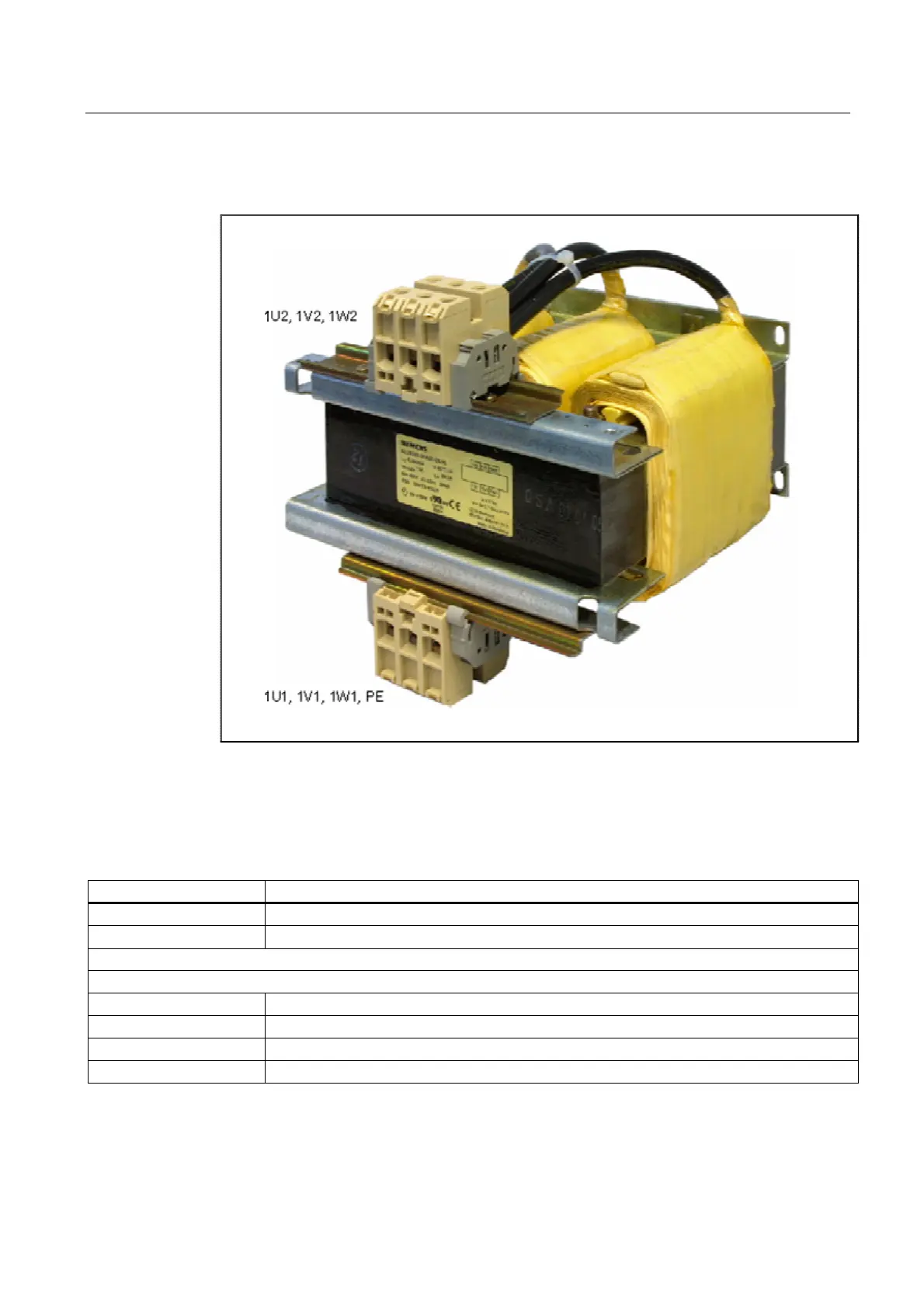

Figure 2-37 Line reactors for Smart Line Modules (example: 36 kW)
2.11.3.1 Line/power connection
Table 2-36 Connection types for line reactors
Terminals Designations
Line supply connection 1U1, 1V1, 1W1, PE
Load connection 1U2, 1V2, 1W2
Line reactors for Smart Line Modules
5 kW Screw terminal 4 mm
2
3-pin*
10 kW Screw terminal 10 mm
2
3-pin*
16 kW Screw terminal 10 mm
2
3-pin* with PE connection for ring cable lug M5 to DIN 46234
36 kW Screw terminal 16 mm
2
3-pin* with PE connection for ring cable lug M6 to DIN 46234
*
See Chapter Screw terminals
