Motor Modules Booksize Compact
5.3 Interface description
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
385
5.3.6 X200-X203 DRIVE-CLiQ interface

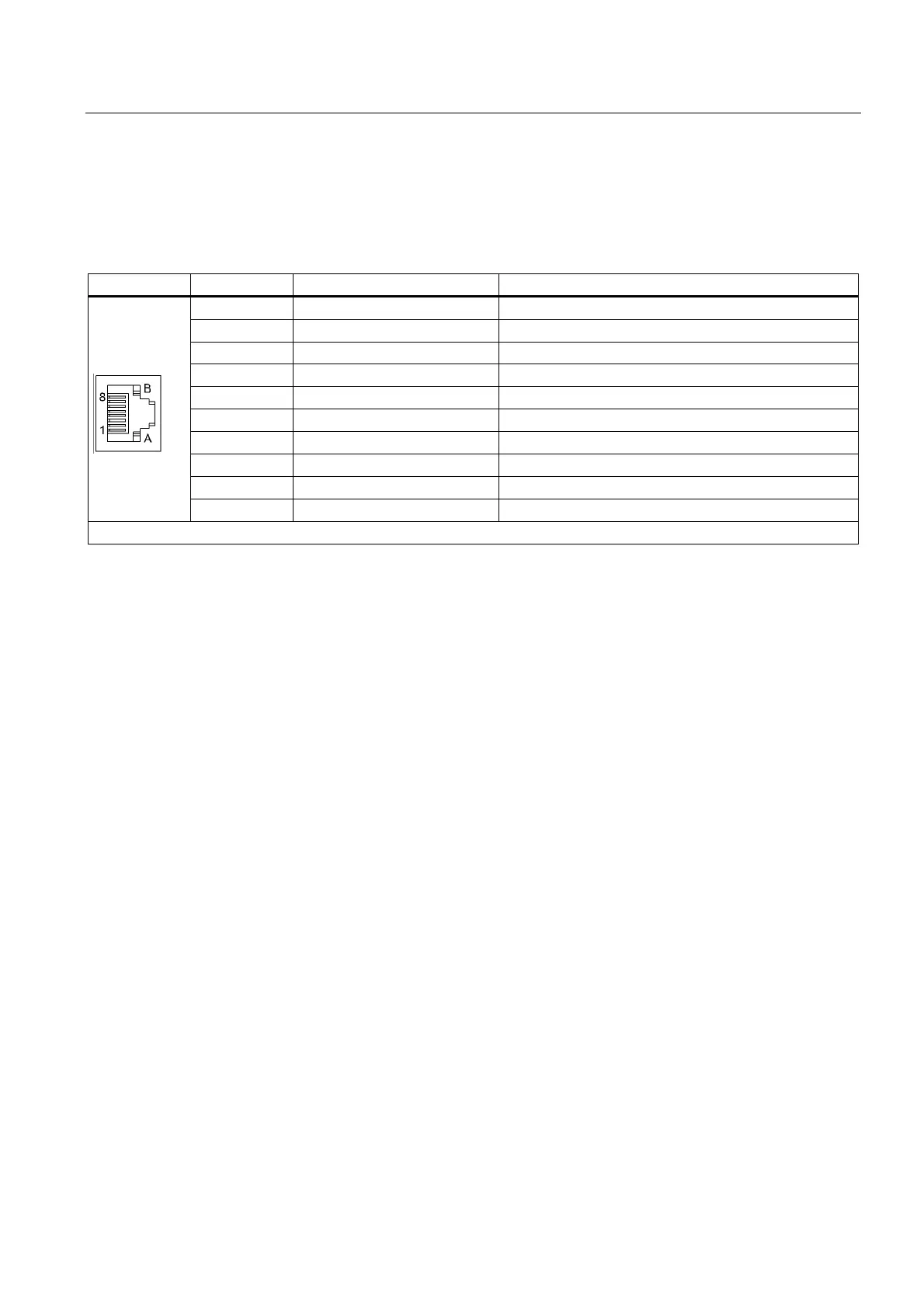

Table 5-4 DRIVE-CLiQ interface X200-X202: Single Motor Module
DRIVE-CLiQ interface X200-X203: Double Motor Module
Pin Name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B GND (0 V) Electronic ground
Blanking plate for DRIVE-CLiQ interface: Yamaichi, order no.: Y-ConAS-13
