Siemens SIROTEC Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with external air cooling
Booksize power units
184 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
3.3.4 Dimension drawings
F


K



%
E


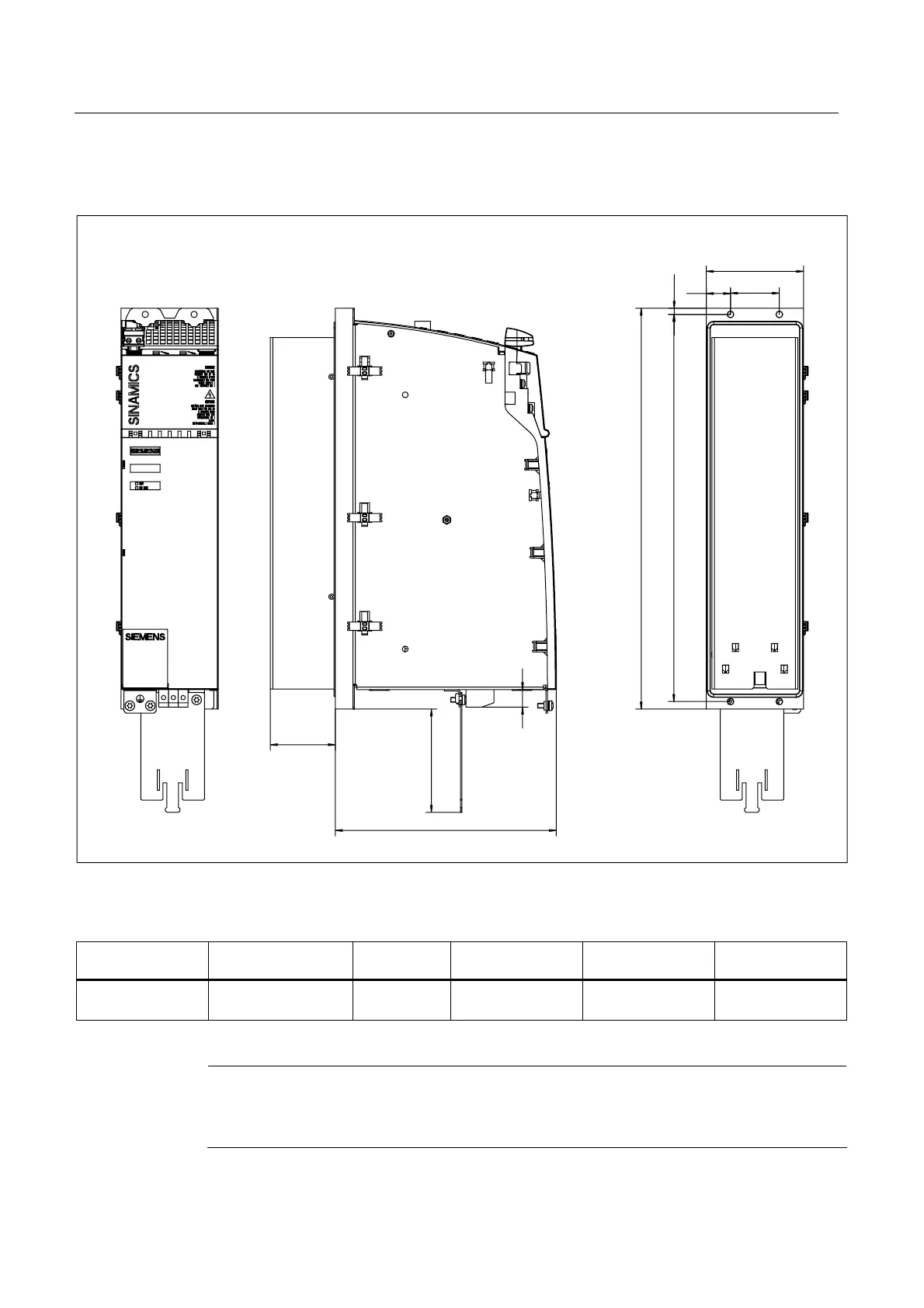

Figure 3-18 Dimension drawing of Active Line Module 16 kW with exernal air cooling, all data in mm and (inches)
Table 3-18 Dimensions of Active Line Module with external air cooling (16 kW)
Line module type Order number W [mm]
(inches)
b [mm] (inches) c [mm] (inches) h [mm] (inches)
16 kW 6SL3131-7TE21-
6AAx
100 (3.94) 50 (1.97) 66.5 (2.62) 18 (0.71)
Note
The shield connecting plate is part of the scope of supply for a 100 mm Line Module.
For more information, see "Accessories".
