Siemens SIROTEC Equipment Manual

Motor Modules Booksize Compact
5.3 Interface description
Booksize power units
382 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
5.3.3 X1 motor connection

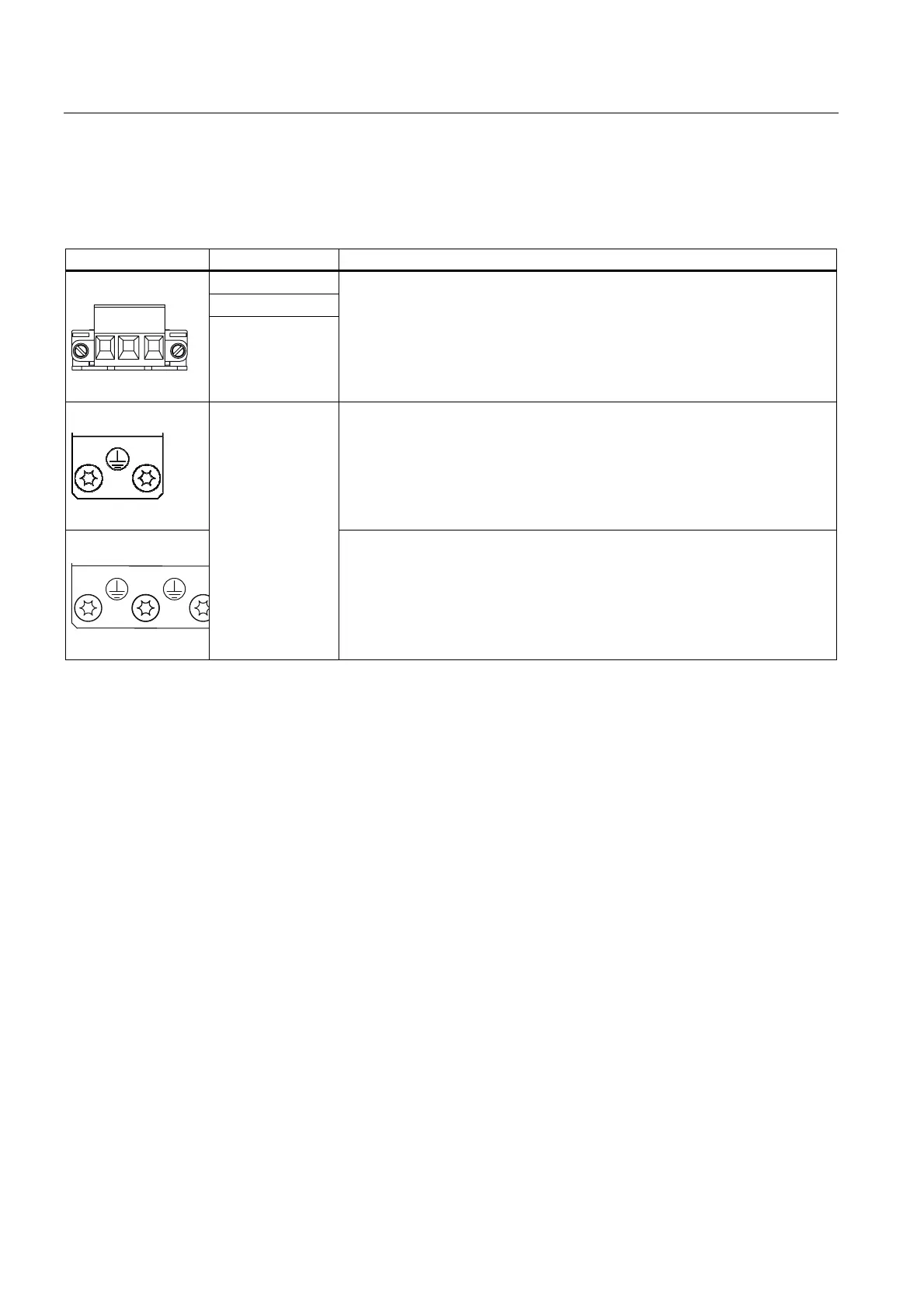

Table 5-1 Terminal block X1 Motor Module Booksize Compact
Terminal Technical specifications
U2
V2
9 8:
W2
Max. connectable cross-section: 6 mm
2
Type: Screw terminal 5 (see Connection System)
Tightening torque: 1.2 - 1.5 Nm
Single Motor Module with a rated output current of 3 A to 18 A
Threaded hole M5/3 Nm
1)
PE connection
Double Motor Module with a rated output current of 1.7 A to 5 A
Threaded hole M5/3 Nm
1)
1)
for ring terminal end in accordance with DIN 46234
