Motor Modules Booksize
4.2 Motor Modules with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
327
4.2.3.4 X21/X22 EP terminals/temperature sensor Motor Module

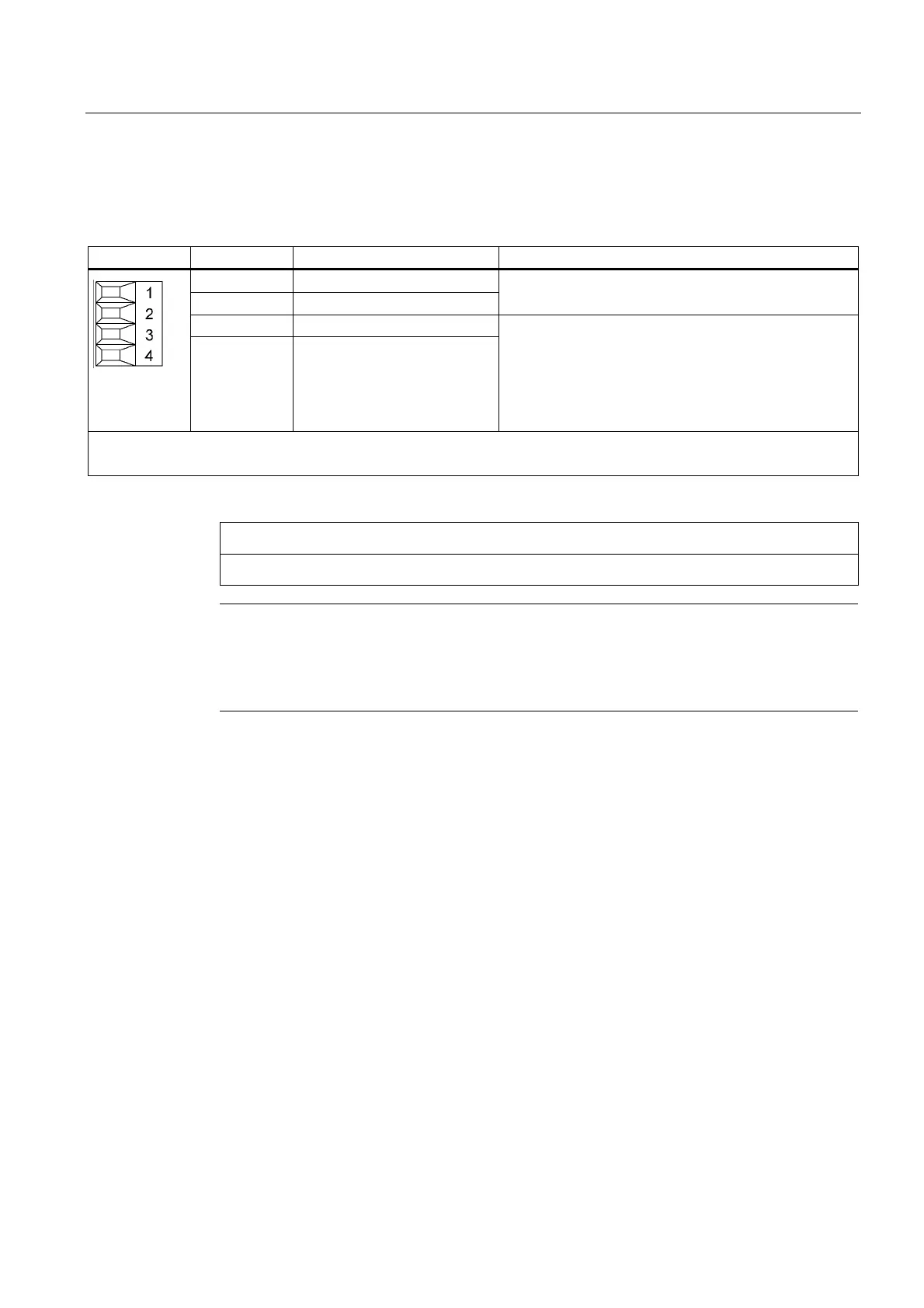

Table 4-3 Terminal block X21/X22
Terminal Function Technical specifications
1 + Temp
2 - Temp
Temperature sensor KTY84–1C130/PTC
3 EP +24 V (enable pulses)
4 EP M1 (enable pulses)
Supply voltage: 24 V DC (20.4 V - 28.8 V)
Current consumption: 10 mA
Isolated input
Signal propagation times:
L → H: 100 μs
H → L: 1000 μs
Max. connectable cross-section 1.5 mm
2
Type: Screw terminal 1 (see Connection System)
NOTICE
The KTY temperature sensor must be connected with the correct polarity.
Note
The temperature sensor is required for motors for which the temperature value is not
transferred using DRIVE-CLiQ.
If the "Safe torque Off" function is selected, for operation, ground must be placed at the
-X21:3 24 V DC and the -X21:4 terminal. Upon removal, pulse suppression is activated.
