Siemens SIROTEC Equipment Manual

Line Modules Booksize
3.6 Smart Line Modules (16 kW und 36 kW) with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
263
3.6.3.3 X1 line connection

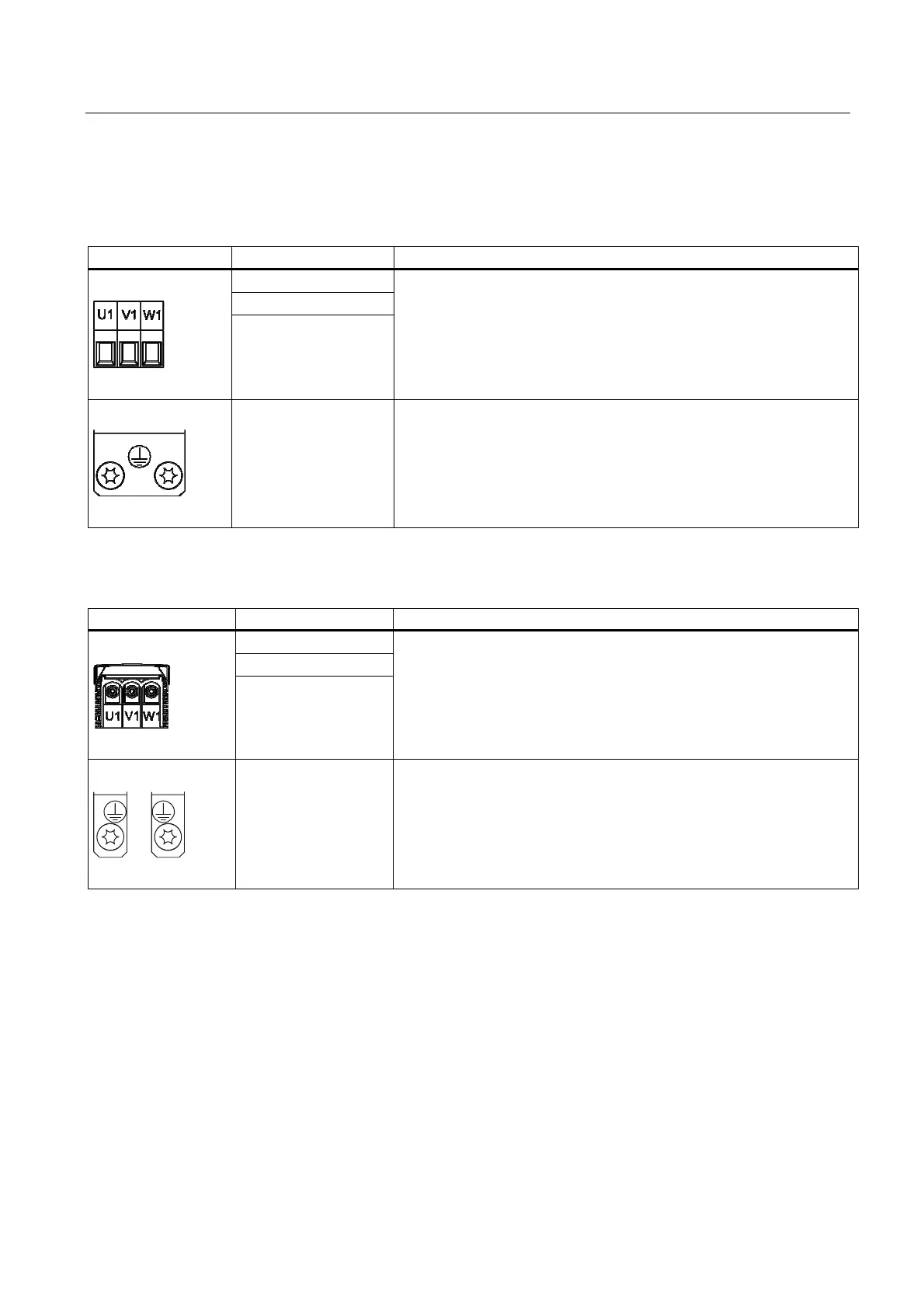

Table 3-44 Terminal block X1 Smart Line Module 16 kW
Terminal Technical specifications
U1
V1
W1
Supply voltage:
380 V - 480 V 3 AC, 50/60 Hz
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Connection System)
Tightening torque: 1.5 - 1.8 Nm
PE connection Threaded hole M5/3 Nm
1)
1)
for ring cable lugs to DIN 46234
Table 3-45 Terminal block Smart Line Module 36 kW
Terminals Technical specifications
U1
V1
W1
Supply voltage:
380 V - 480 V 3 AC, 50/60 Hz
36 kW:
Threaded bolt M6/6 Nm
1)
PE connection 36 kW:
Threaded hole M6/6 Nm
1)
1)
for ring cable lugs to DIN 46234
