Line Connection Booksize
2.8 Basic Line Filter for Smart Line Modules
Booksize power units
76 Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
2.8.4 Dimension drawings

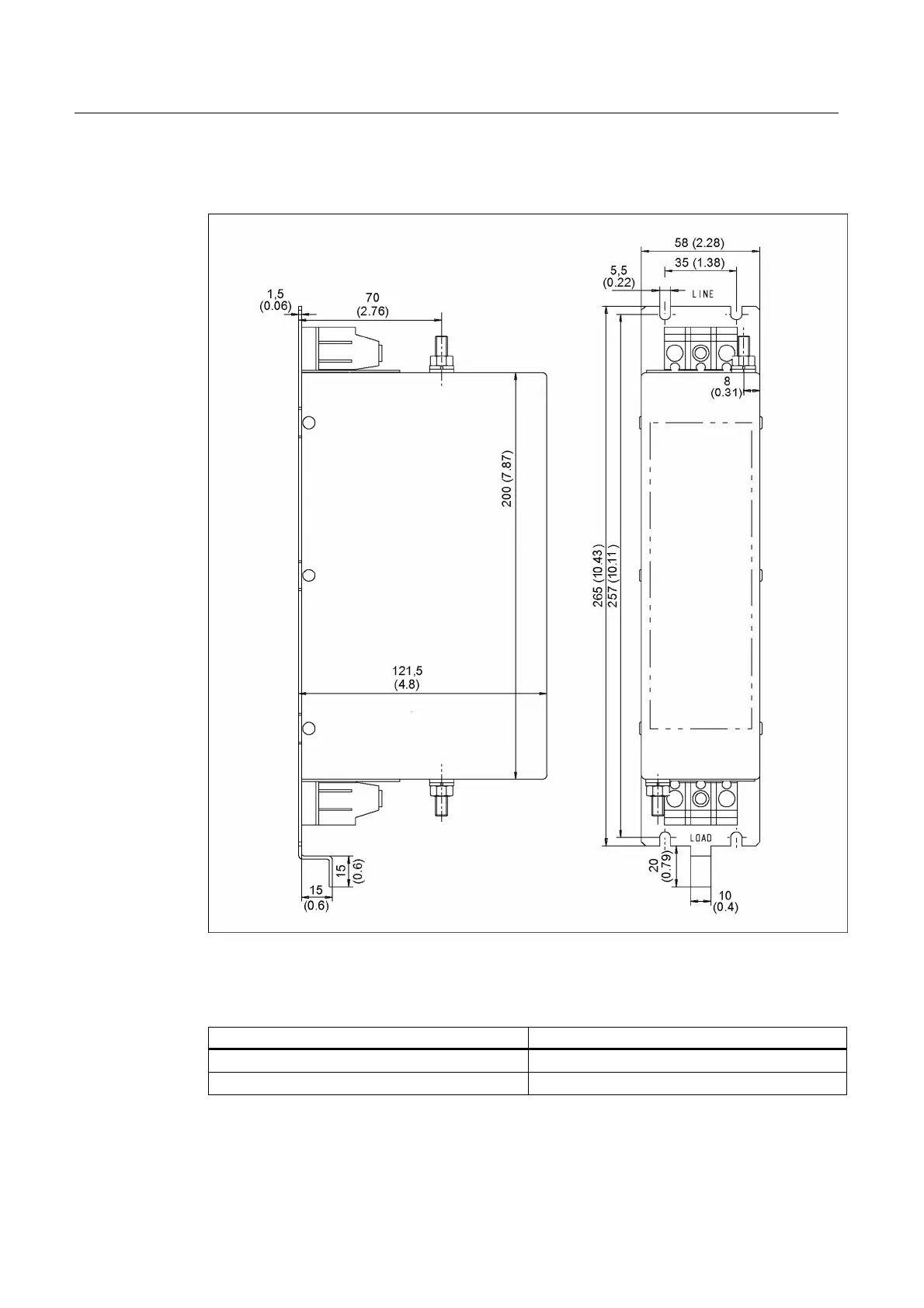

Figure 2-20 Dimension drawing of Basic Line Filter for Smart Line Modules 5 and 10 kW, all data in
mm and (inches)
Table 2-17 Basic Line Filter for Smart Line Modules
Basic Line Filter for Smart Line Modules Order number
5 kW 6SL3000-0HE15-0AAx
10 kW 6SL3000-0HE21-0AAx
