Accessories
8.2 DC link rectifier adapter for Booksize format
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
461
8.2.3 Interface description
8.2.3.1 Overview

'&OLQN
VXSSO\DGDSWHU

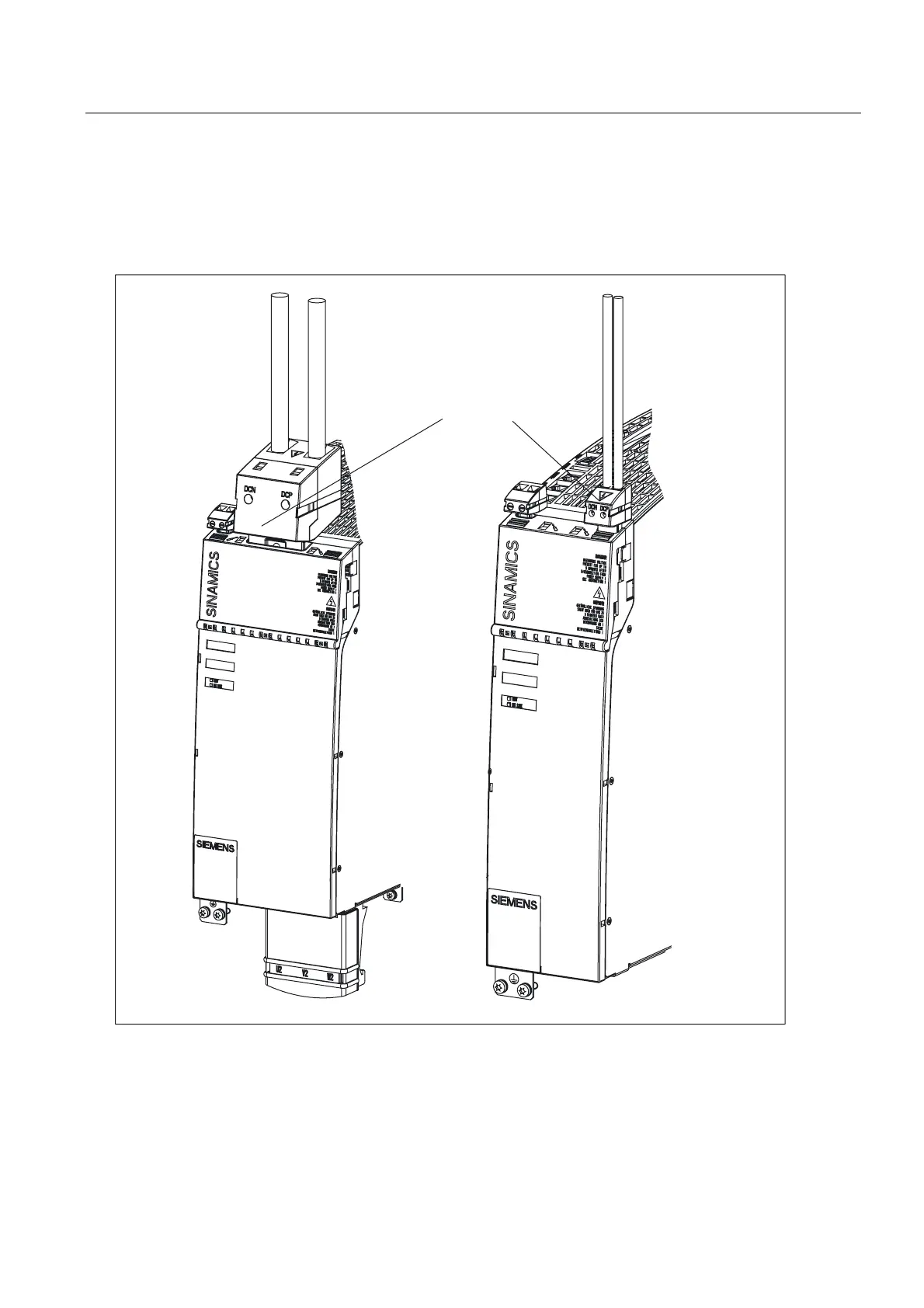

Figure 8-11 150 mm components with DC link rectifier adapter for 35 mm² to 95 mm² and 100 mm components with
DC link rectifier adapter for 4 mm² to 10 mm²
