Line Modules Booksize
3.8 Smart Line Modules (5 kW und 10 kW) with external air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
303
3.8.4 Dimension drawing

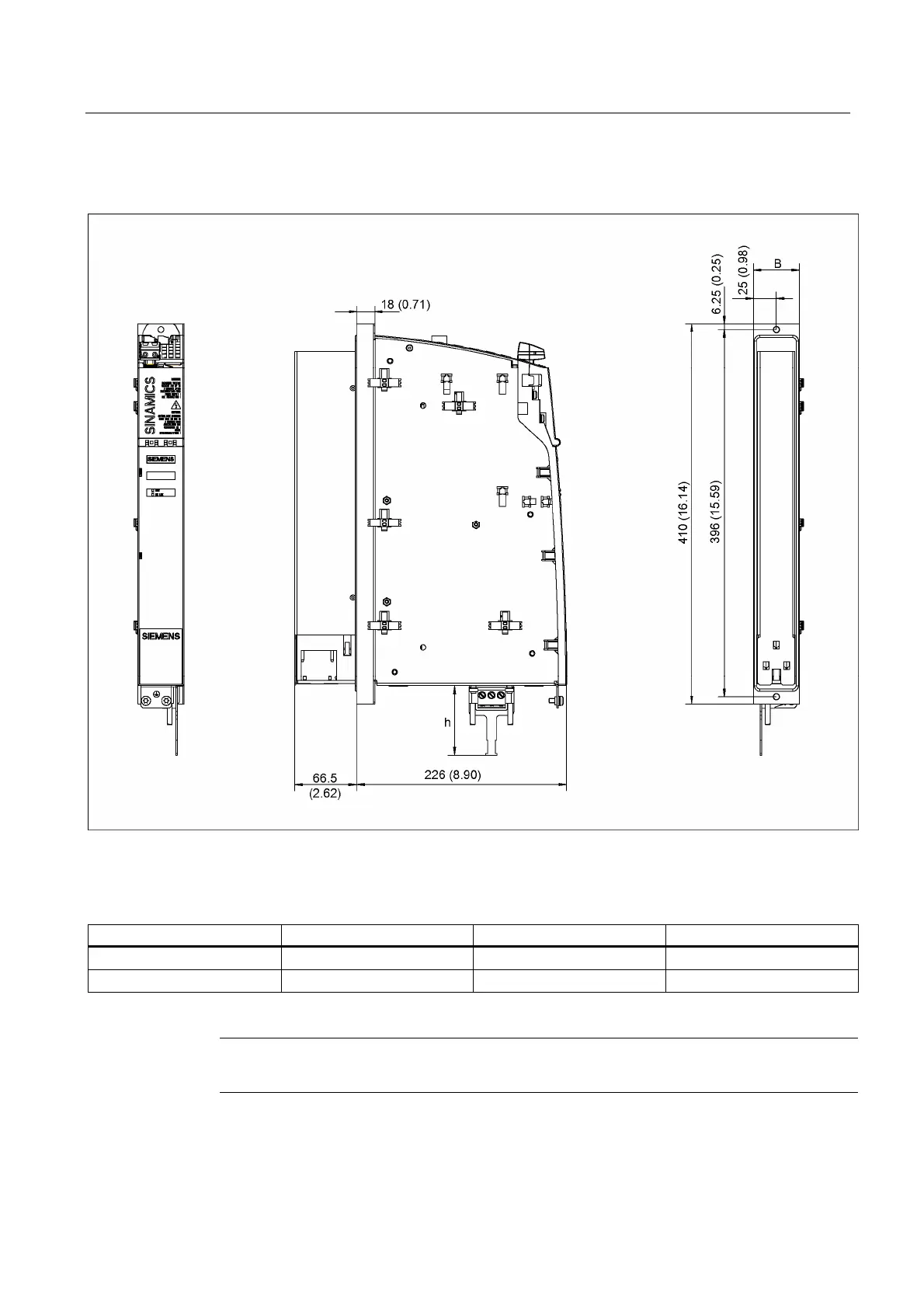

Figure 3-89 Dimension drawing of Smart Line Modules 5 kW and 10 kW with external air cooling, all data in mm and
(inches)
Table 3-65 Dimensions of Smart Line Module (5 kW and 10 kW) with external air cooling
Line module type Order number W [mm] (inches) h [mm] (inches)
5 kW 6SL3131-6AE15-0AAx 50 (1.97) 75 (2.95)
10 kW 6SL3131-6AE21-0AAx 50 (1.97) 75 (2.95)
Note
The shield connecting plate is part of the scope of supply of the 50 mm Smart Line Module.
