Siemens SIROTEC Equipment Manual

Line Modules Booksize
3.4 Basic Line Modules with internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
209
3.4.3.3 X1 line connection

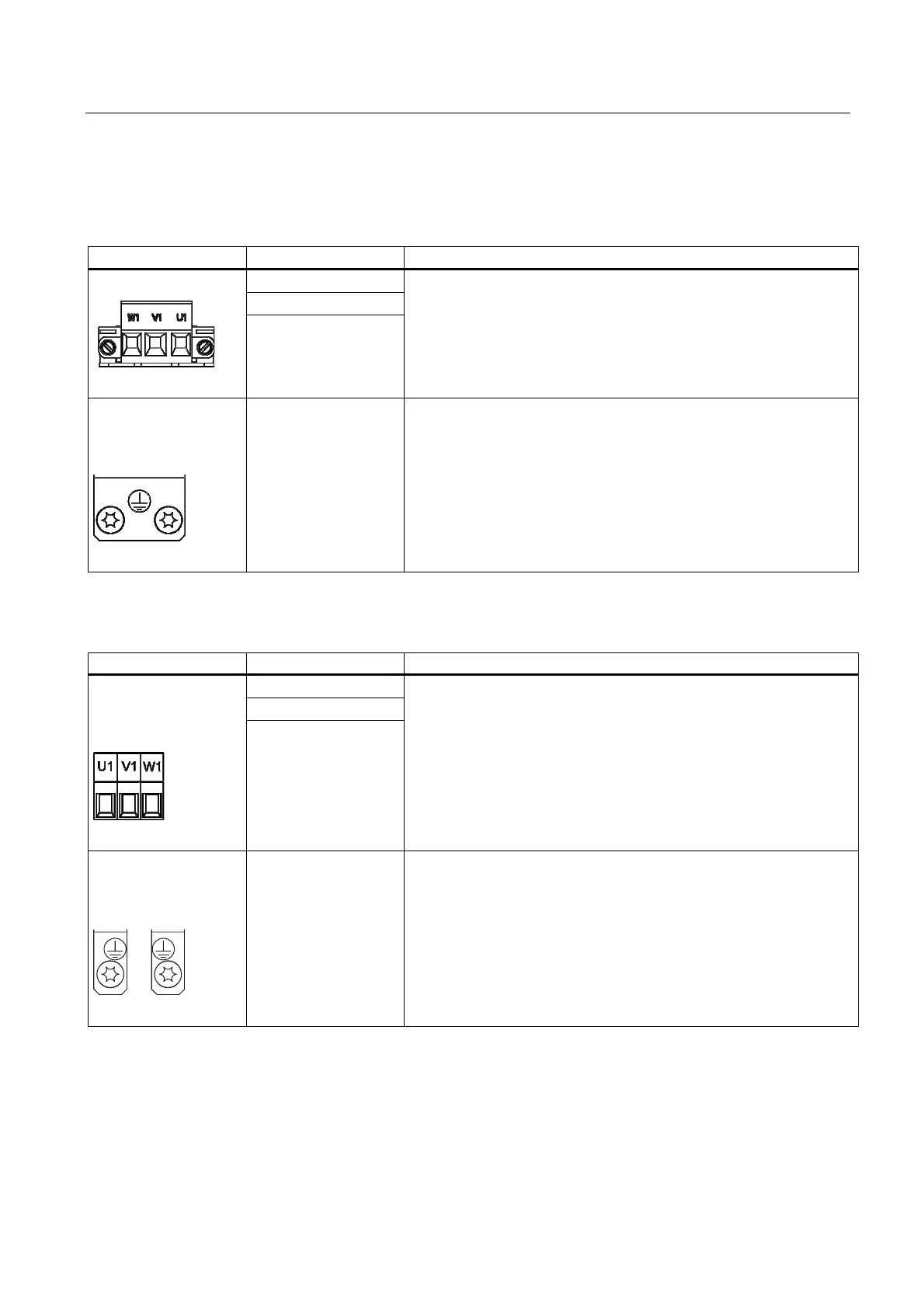

Table 3-23 Terminal block X1 Basic Line Module 20 kW
Terminal Technical specifications
U1
V1
W1
Connection voltage:
380 V - 480 V 3 AC, 50/60 Hz
max. connectable cross-section: 16 mm
2
Type: Screw terminal 7 (see Connection Methods)
Tightening torque: 1.5 - 1.7 Nm
PE connection Threaded hole M5/3 Nm
1)
1)
for ring cable lugs to DIN 46234
Table 3-24 Terminal block X1 Basic Line Module 40 kW
Terminal Technical specifications
U1
V1
W1
Connection voltage:
380 V - 480 V 3 AC, 50/60 Hz
Terminal type HDFK 50 , cross-section 25 mm², ferrules
Tightening torque min. 6 Nm
PE connection Threaded hole M6/6 Nm
1)
1)
for ring cable lugs to DIN 46234
