Siemens SIROTEC Equipment Manual

Line Modules Booksize
3.3 Active Line Modules with external air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
179

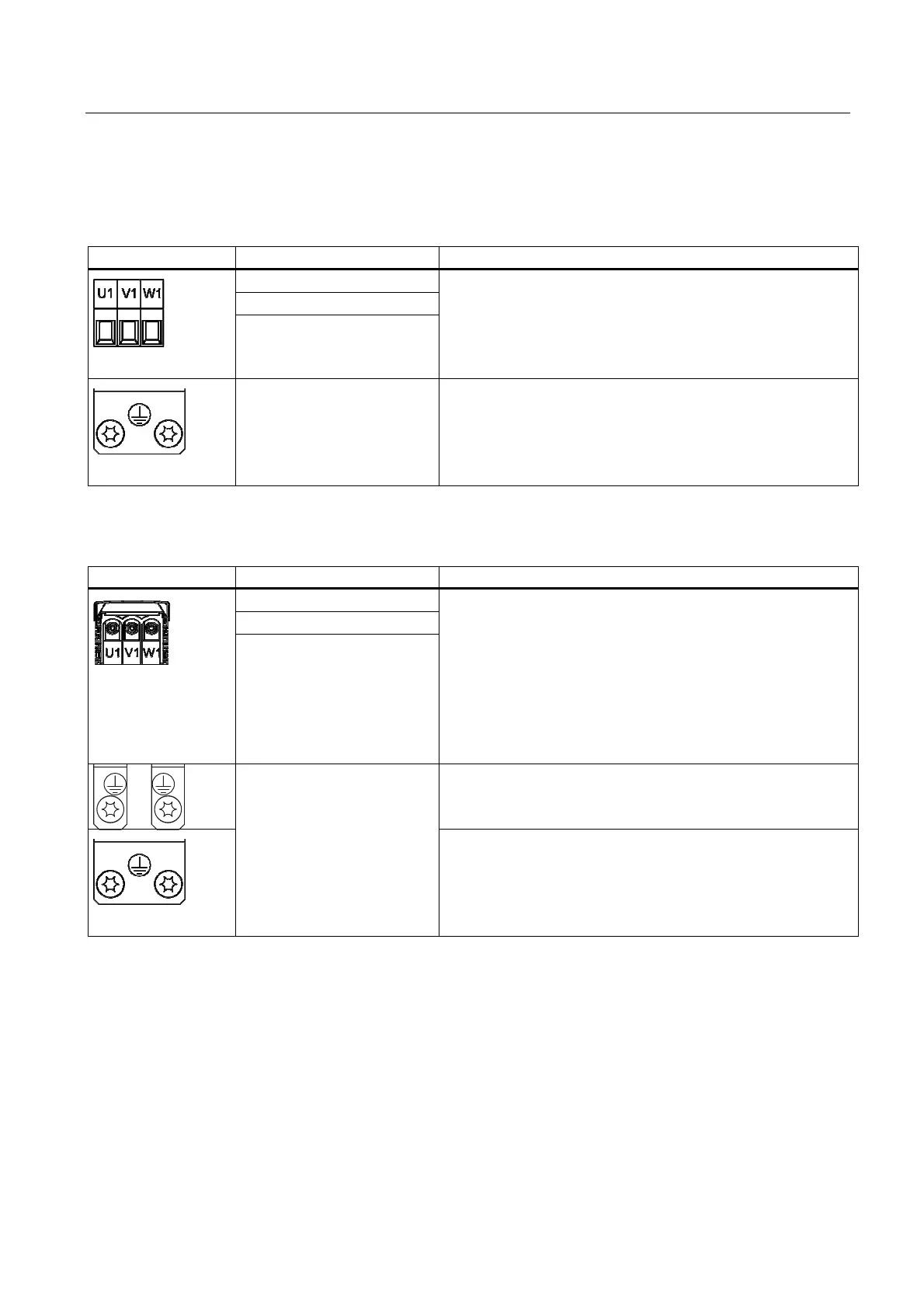

3.3.3.3 Line connection
Table 3-12 Terminal block X1 Active Line Module 16 kW
Terminal Technical specifications
U1
V1
W1
Supply voltage:
380 V - 480 V 3 AC, 50/60 Hz
Max. connectable cross-section: 10 mm
2
Type: Screw terminal 6 (see Connection Methods)
Tightening torque: 1.5 - 1.8 Nm
PE connection Threaded hole M5/3 Nm
1)
1)
for ring cable lugs to DIN 46234
Table 3-13 Terminal block for the Active Line Module (36 kW to 120 kW)
Terminals Technical specifications
U1
V1
W1
Supply voltage:
380 V - 480 V 3 AC, 50/60 Hz
36 kW:
Threaded bolt M6/6 Nm
1)
55 kW:
Threaded bolt M8/13 Nm
1)
80 kW to 120 kW:
Threaded bolt M8/13 Nm
1)
36 kW:
Threaded hole M6/6 Nm
1)
PE connection
55 kW:
Threaded hole M6/6 Nm
1)
80 kW to 120 kW:
Threaded hole M8/13 Nm
1)
1)
for ring cable lugs to DIN 46234
