Line Modules Booksize
3.2 Active Line Modules with internal air
cooling
Booksize power units
164
Manual, (GH2), 06/2008, 6SL3097-2AC00-
0BP6
3.2.5
Installation

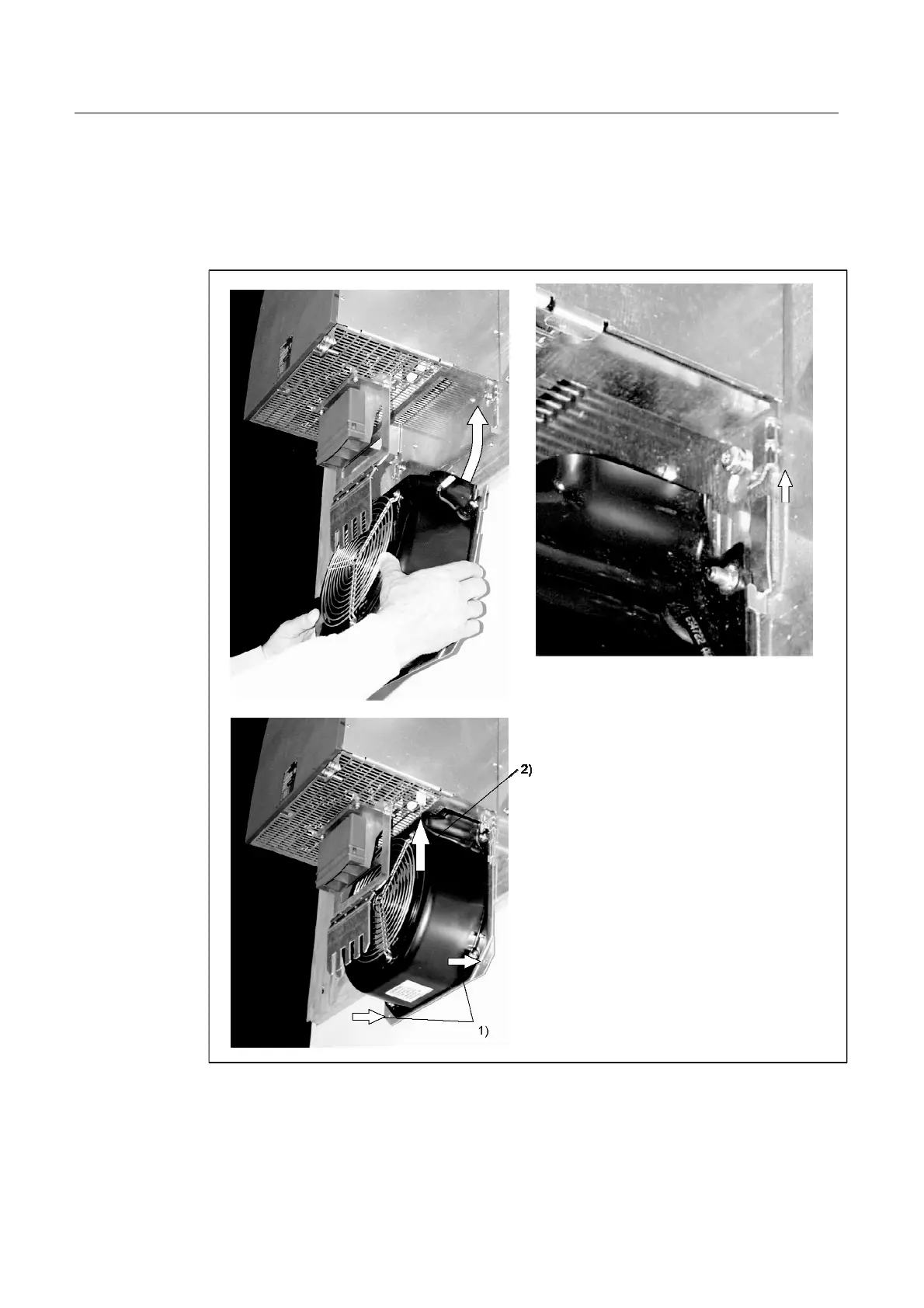

Installing the fan on Active Line Modules (80 kW and 120 kW)
Figure 3-7
Installing t
he fan for 300 mm modules
1) Secure with M6/6 Nm screws
2) Connect the power supply for the fan
163
165
