Cabinet Design and EMC Booksize
9.7 Cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
541
0RXQWLQJVXUIDFH
$LULQOHW
:DUP
GLVFKDUJHG
DLU
',1UDLO
PP
PP

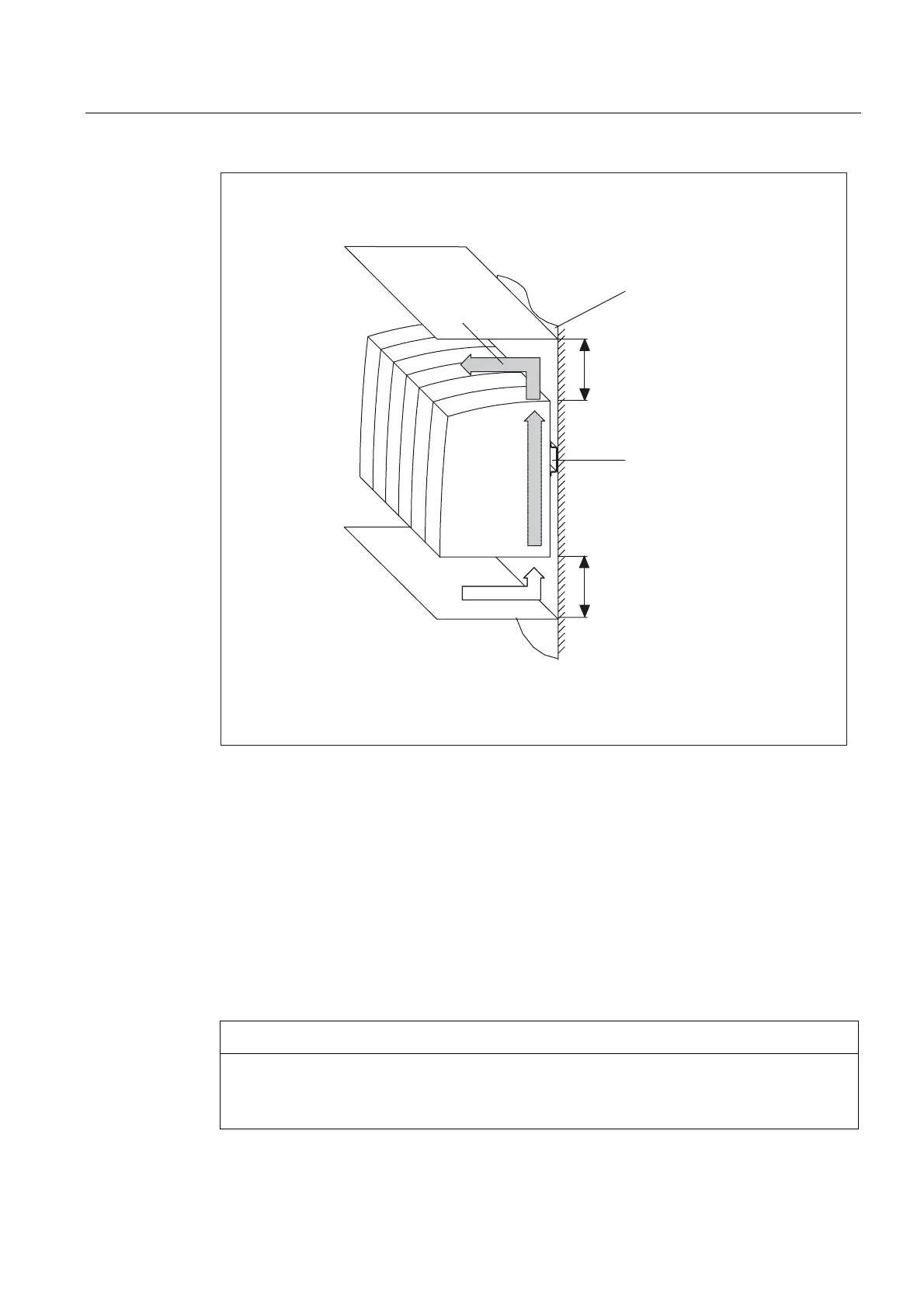

Figure 9-20 Cooling clearances, rail-mounted modules (e.g. VSM, SMC, TM, DMC)
9.7.2 Information about ventilation
The SINAMICS equipment is ventilated separately by means of integrated fans and is in
some cases cooled by means of natural convection.
The cooling air must flow through the components vertically from bottom (cooler region) to
top (region heated by operation).
If filtered fans, heat exchangers, or air conditioners are used, you must ensure that the air is
flowing in the right direction. You must also ensure that the warm air can escape at the top.
A ventilation clearance of at least 80 mm above and below must be observed.
NOTICE
The connected signal and power cables must be routed to the components in such a way
that they do not cover the ventilation slots.
Cold air must not be allowed to blow directly onto electronic equipment.
