Line Modules Booksize
3.3 Active Line Modules with external air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
181
3.3.3.5 EP terminals X21

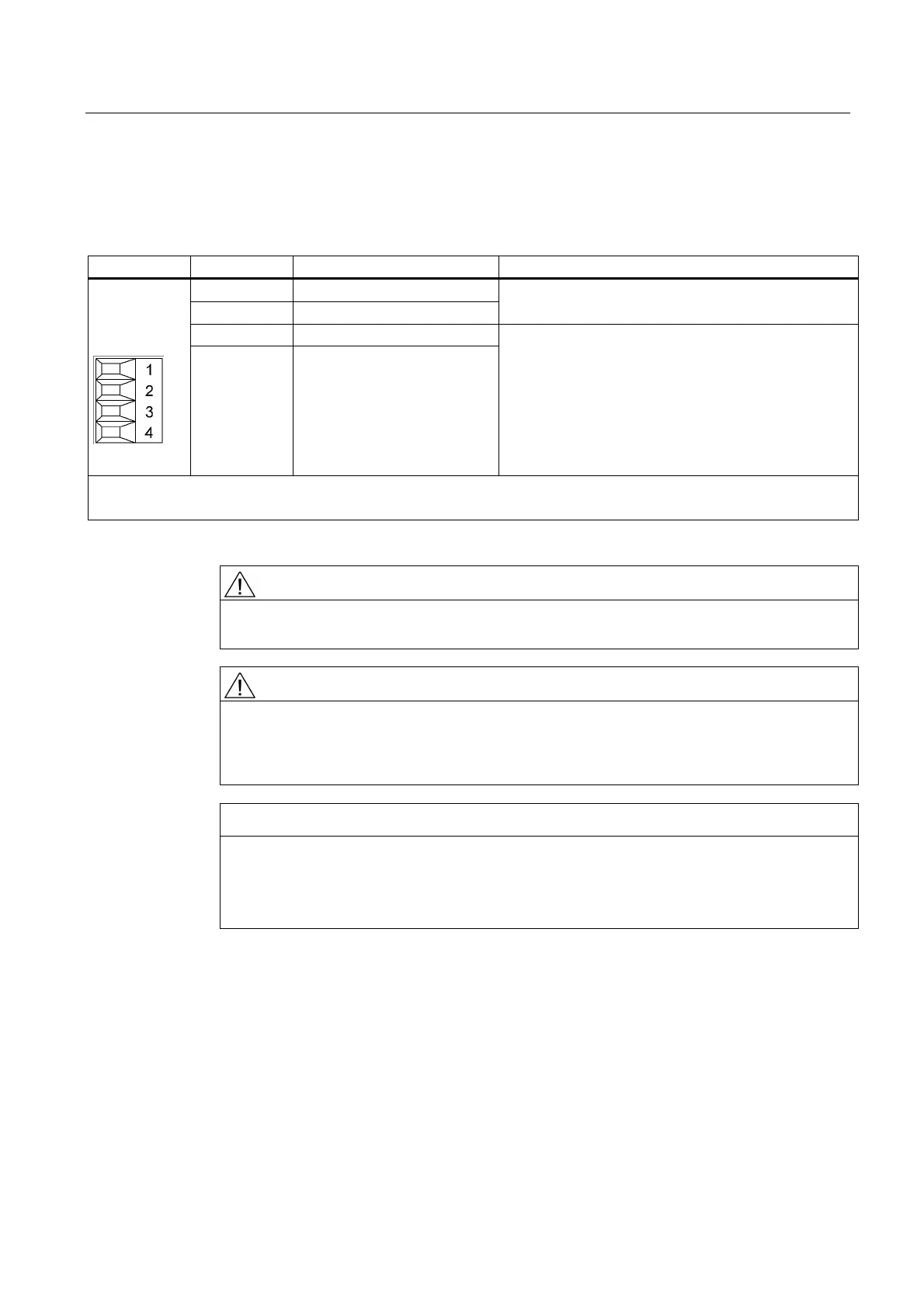

Table 3-15 Terminal block X21
Terminal Designation Technical specifications
1 + Temp
2 - Temp
For the temperature sensor on the
Active Interface Module
3 EP +24 V (enable pulses)
4 EP M (enable pulses)
Voltage 24 V DC
Current consumption: 10 mA
Isolated input
Signal propagation times:
L → H: 100 μs
H → L: 1000 μs
Max. connectable cross-section: 1.5 mm
2
Type: Screw terminal 1 (see Connection Methods)
CAUTION
If an Active Interface Module is connected, the temperature output of the Active Interface
Module must be connected to terminals 1 and 2.
WARNING
For operation, 24 V DC must be connected to terminal 3 and ground to terminal 4. Upon
removal, pulse suppression is activated. Feedback is deactivated and the bypass relay
drops out. If the Line Module is not disconnected from the line supply when the EP terminal
is deactivated (e.g. a main contactor is not installed), the DC link remains charged.
NOTICE
If a drive line-up is switched off by means of the line disconnecting device, the voltage at
terminals 3 (EP +24 V) and 4 (EP M) must be interrupted beforehand. This can be carried
out using a leading breaking auxiliary contact (≥ 10 ms), for example.
This protects external loads located parallel to the drive on the same switching component.
