Line Modules Booksize
3.8 Smart Line Modules (5 kW und 10 kW) with external air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
305

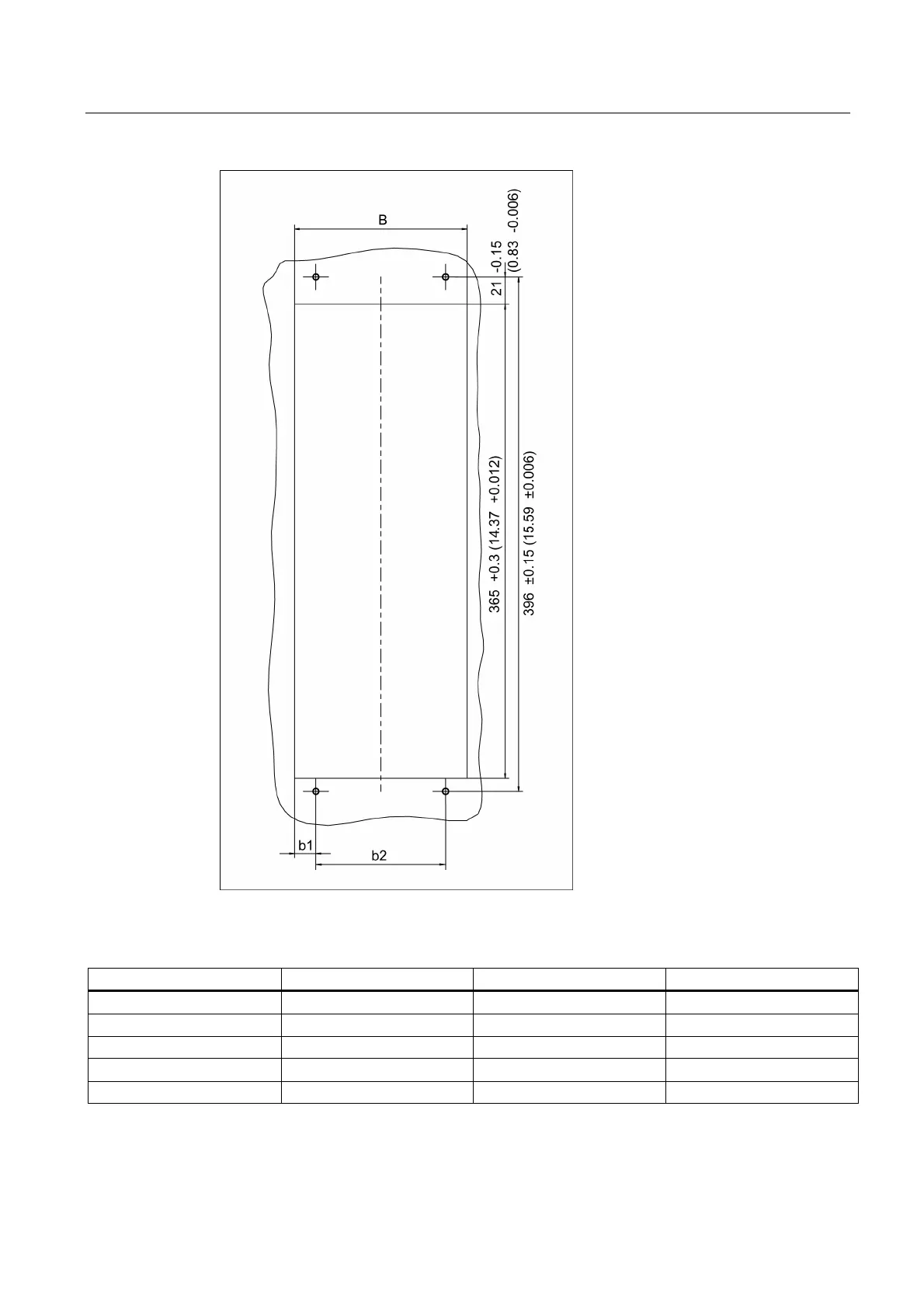

Figure 3-91 Installation openings for the Power Module with external air cooling (50 mm to 200 mm)
Table 3-66 Dimensions of the installation openings for the Power Module with external air cooling
Module width W [mm] (inches) w1 [mm] (inches) w2 [mm] (inches)
50 mm 41.5 + 0.3 (1.63 + 0.012) 20.75 +0.15 (0.82 +0.006) 0
100 mm 89.5 + 0.3 (3.52 + 0.012) 19.75 +0.15 (0.78 + 0.006) 50 ± 0.15 (1.97 ± 0.006)
150 mm 133 + 0.3 (5.24 + 0.012) 16.5 +0.15 (0.65 + 0.006) 100 ± 0.15 (3.94 ± 0.006)
200 mm 173 + 0.3 (6.81 + 0.012) 11.5 +0.15 (0.45 + 0.006) 150 ± 0.15 (5.91 ± 0.006)
300 mm 278 + 0.3 (10.94 + 0.012) 14.0 ± 0.15 (0.55 ± 0.006) 250 + 0.15 (9.84 + 0.006)
