Argus Radar - ANNEX B
988-10187-004 7.16

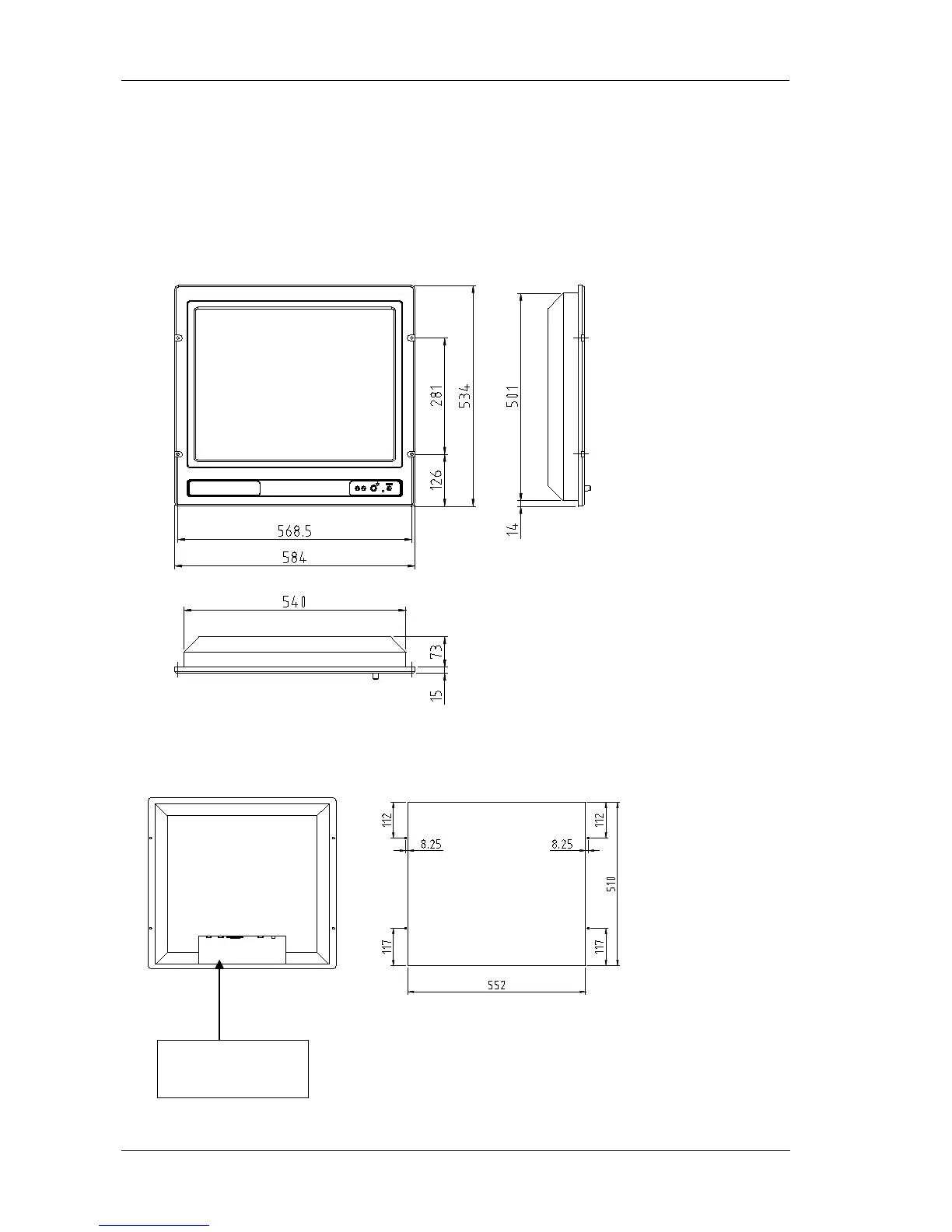

ARGUS DISPLAY – 19” Monitor outline drawing
All dimensions are in mm. Weight 17-21 Kg IP 65
FRONT VIEW
SIDE VIEW
TOP VIEW
PANEL CUT-OUT
REAR VIEW
A - Drill n. 4 thru-holes metric
thread M6x1x6 minimum (thread
code x pitch x depth) for steel or
stainless steel panel.
For aluminium panel increase
depth to 12 minimum.
Or drill n. 4 thru-holes and
mounting n. 4 self-clinching nuts
M6x1.
Input signals, main
power and grounding
bolt
