3.3 Speed LOG Configuration
In this menu it is possible to configure the connection of a Speed LOG to the radar, by
pressing the "B" button on fig. 3.1.2, page 3.2, the following window will be displayed:

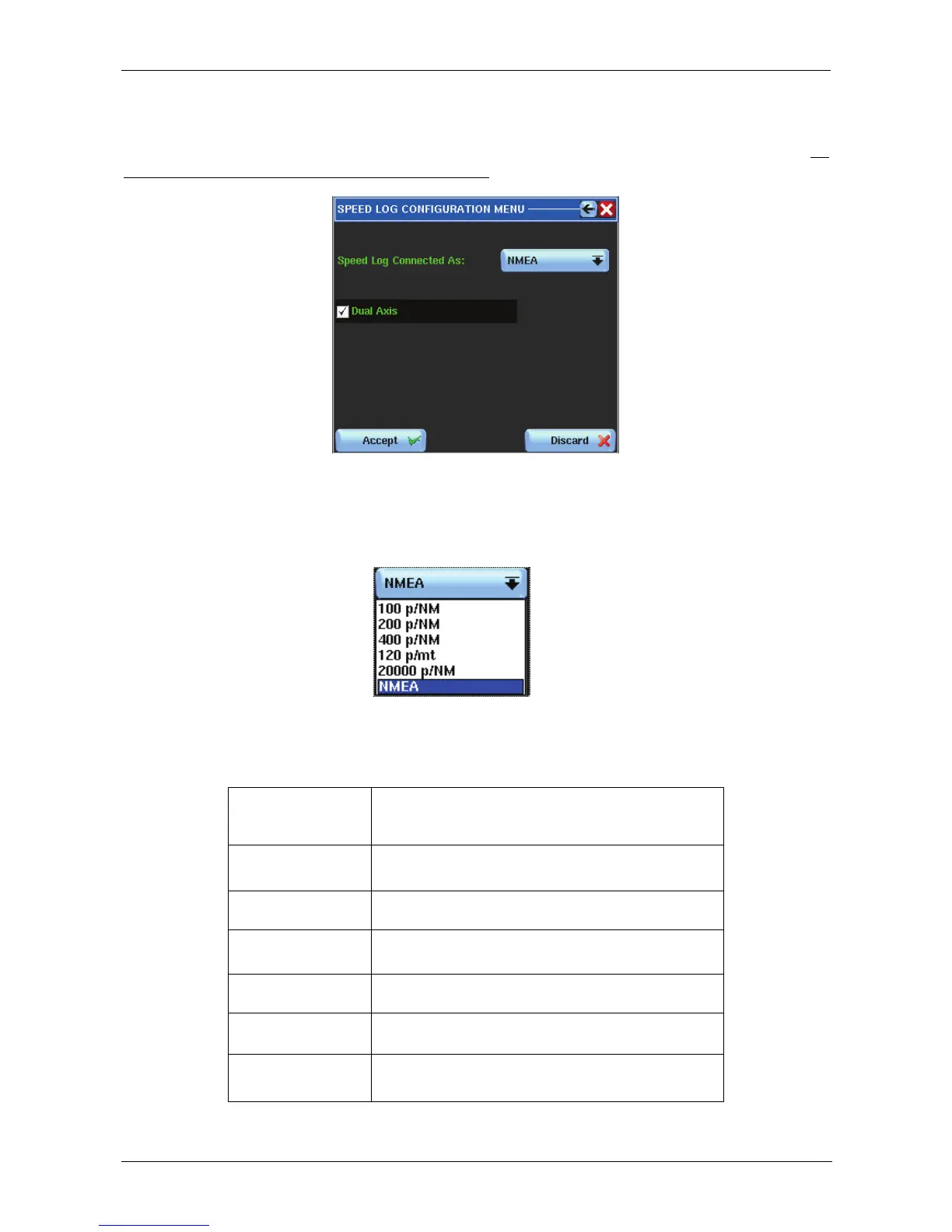

Figure 3.3.1 Speed Log Configuration
The first row indicates the type of Speed Log connected. By pressing the asociated
button, the following list will open:
If the speed log signal is NMEA (referring to NMEA 0183), it is necessary to select the
Input where it is connected, push the B button on fig. 3.1.2, page 3.2, to switch between
the possibilities.
Type Function
100 p/NM
PIT dry contact, 100 pulses per NM
200 p/NM
PIT dry contact, 200 pulses per NM
400 p/NM
PIT dry contact, 400 pulses per NM
120 p/mt
FOR signal input, 120 pulses per meter
20000 p/NM
FOR signal input , 20000 pulses per NM
NMEA
RS232/422 NMEA 0183 serial connection
