Argus Radar - RADAR CONFIGURATION
988-10187-004 3.7
3.5 Conning and EPFS Pos. Configuration Menu
By pressing the “Conning and EPFS Position” button, the following window will appear:

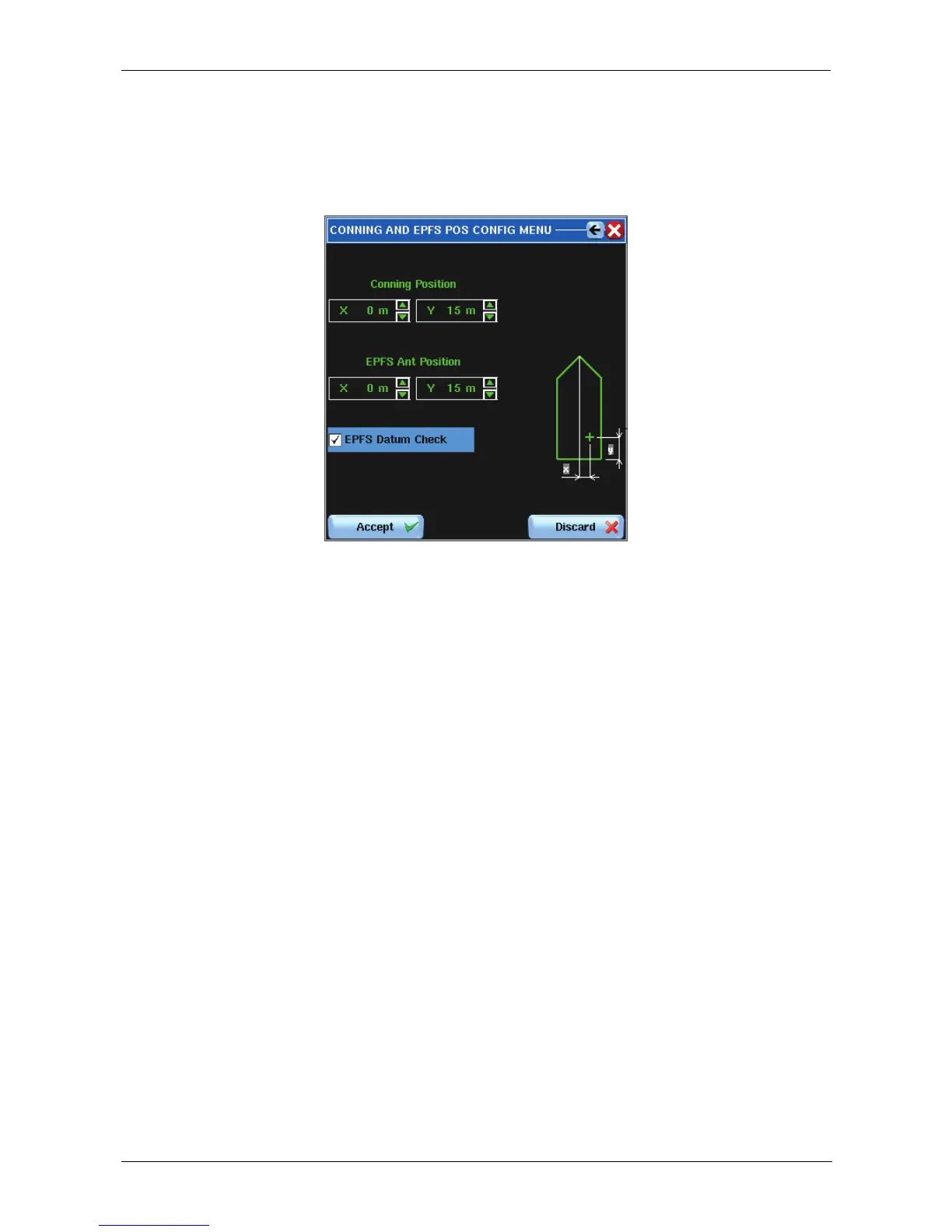

Figure 3.5.1 Conning and EPFS Position
Conning Position: Look to the help line for correct use of the 3 Mouse Operating Push
Buttons in order to decrease, increase the X or Y value or input a new X or Y value in
meters. A picture of the ship profile and a text on line will be drawn in order to help the
operator to insert the correct values. This is the position of the EPFS referred to the
graphical shape as indicated in the figure. This value is used to calculate the exact
geographical coordinate of the antenna position. Length and width are not used when AIS
is connected, instead they are extracted from the VDO static message. The CCRP will be
located at the conning position.
EPFS Ant. Position: Look to the help line for correct use of the 3 Mouse Operating Push
Buttons in order to decrease, increase the X or Y value or input a new X or Y value in
meters. A picture of the ship profile and a text on line will be drawn in order to help the
operator to insert the correct values. This is the position of the EPFS referred to the
graphical shape as indicated in the figure. This value is used to calculate the exact
geographical coordinate of the GPS antenna position.
EPFS Datum Check: Accept the DTM sentence when the checkbox is signed. The datum
is used to compensate local geographic coordinates with an offset with reference to WGS-
84.
