Argus Radar - RADAR CONFIGURATION
988-10187-004 3.24
3.11.2 IP Address (Fig 3.11.1 -B)
The IP Addresses next to the “This Console” label are for the working console. The
“PROC A IP” column is the IP address of Processor A of Antares p.c.b.
The Proc A IP of This Console can be set by clicking on the IP address field.
The Proc B IP will automatically be set.

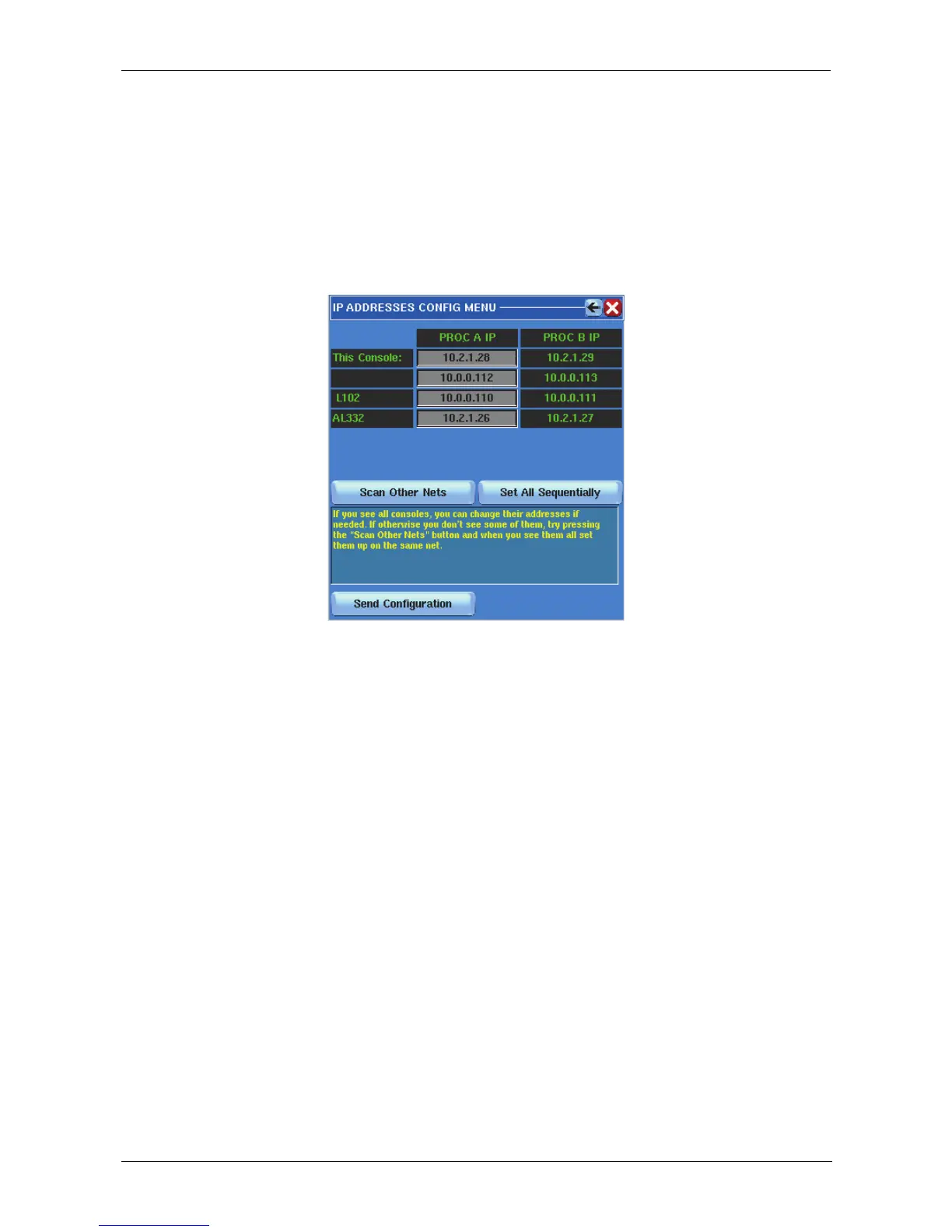

Figure 3.11.1-B
The following functions can be used only if This Console is connected via LAN with other
Argus consoles:
Scan Other Nets
The Argus console searches through 10.x.x.x, 192.168.0.x, 172.1.x.x and 212.4.5.x
subnetworks for other Argus units.
All the consoles available will be presented in the table.
Set All Sequentially
After a scan identification, the IP of the listed consoles in the table can be set in an
incremental order starting from own console IP number.
The assigned IP will be incremented +2 for every console found and a dialog window will
be shown on each one to accept the IP setting request.
Send Configuration
This function can be used to share the configuration of This Console with the other ones.
Please note that Transceiver, Antenna and Video/Trigger settings may have to be re-
configured at each console.
