6 SETUP AND INSTALLATION
The following chapter describes the installation of a PICOSCALE system. Since many of the PICO-
SCALE
components are fragile, please read and follow the information in this chapter carefully!
6.1 System checklist
If any cartons have been damaged, contact the shipper or SmarAct sales team at once. The ship-
ping boxes for a standard
PICOSCALE interferometer should contain the following equipment
and documentation:

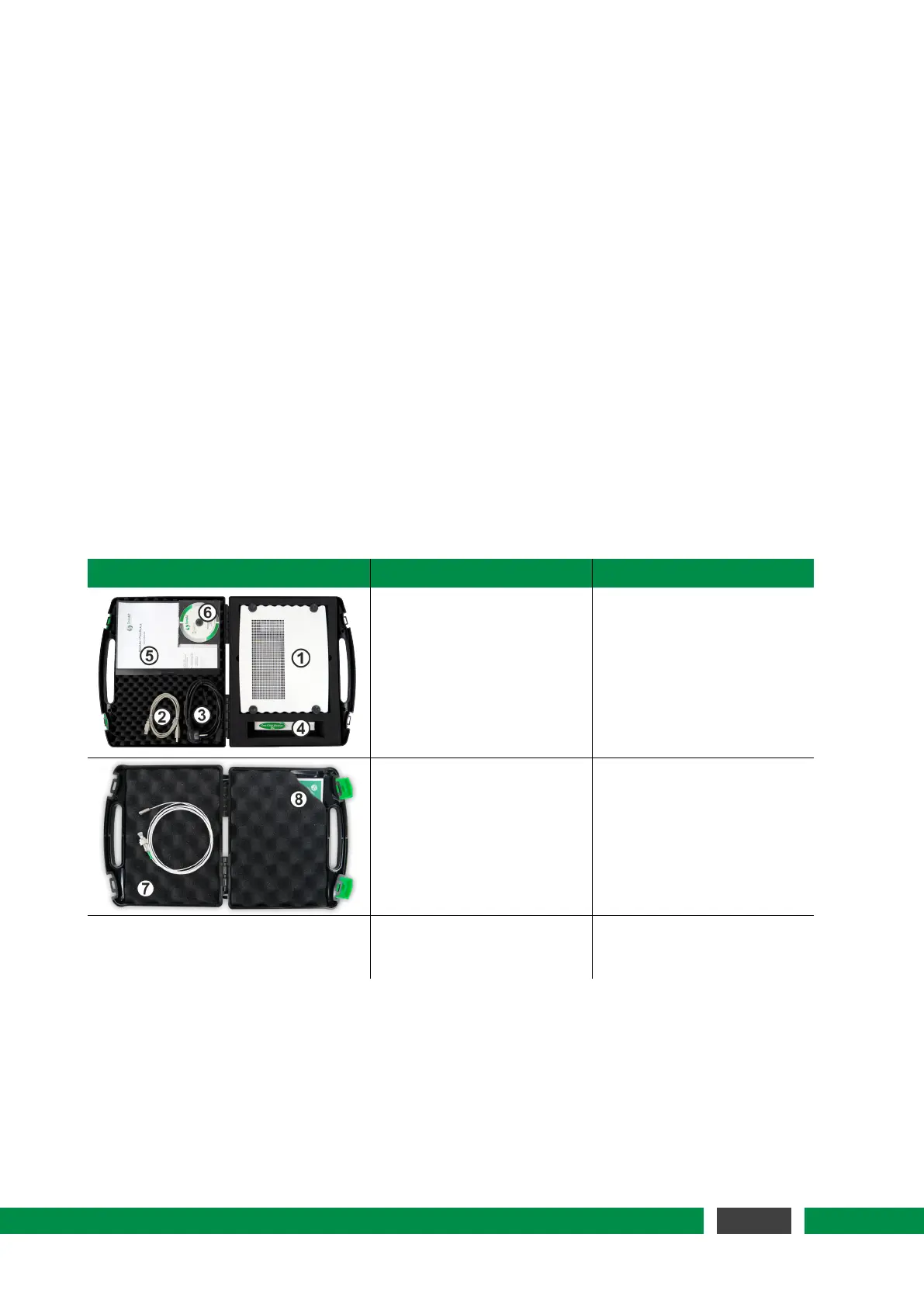

Table 6.1 – Components of a PICOSCALE System
Transport Case Image Dimension and Weight Content
Height x Width x Depth: (1) PICOSCALE Controller
15cm x 45cm x 40cm (2) USB Cable
Weight: (3) Power Cable
5.94kg (4) One-Click Cleaner Pen
(5) User Manual
(6) Software CD
Height x Width x Depth: (7) Sensor Head
4cm x 16cm x 15cm (8) Data sheet
Weight:
0.20kg
Continued on next page
42
