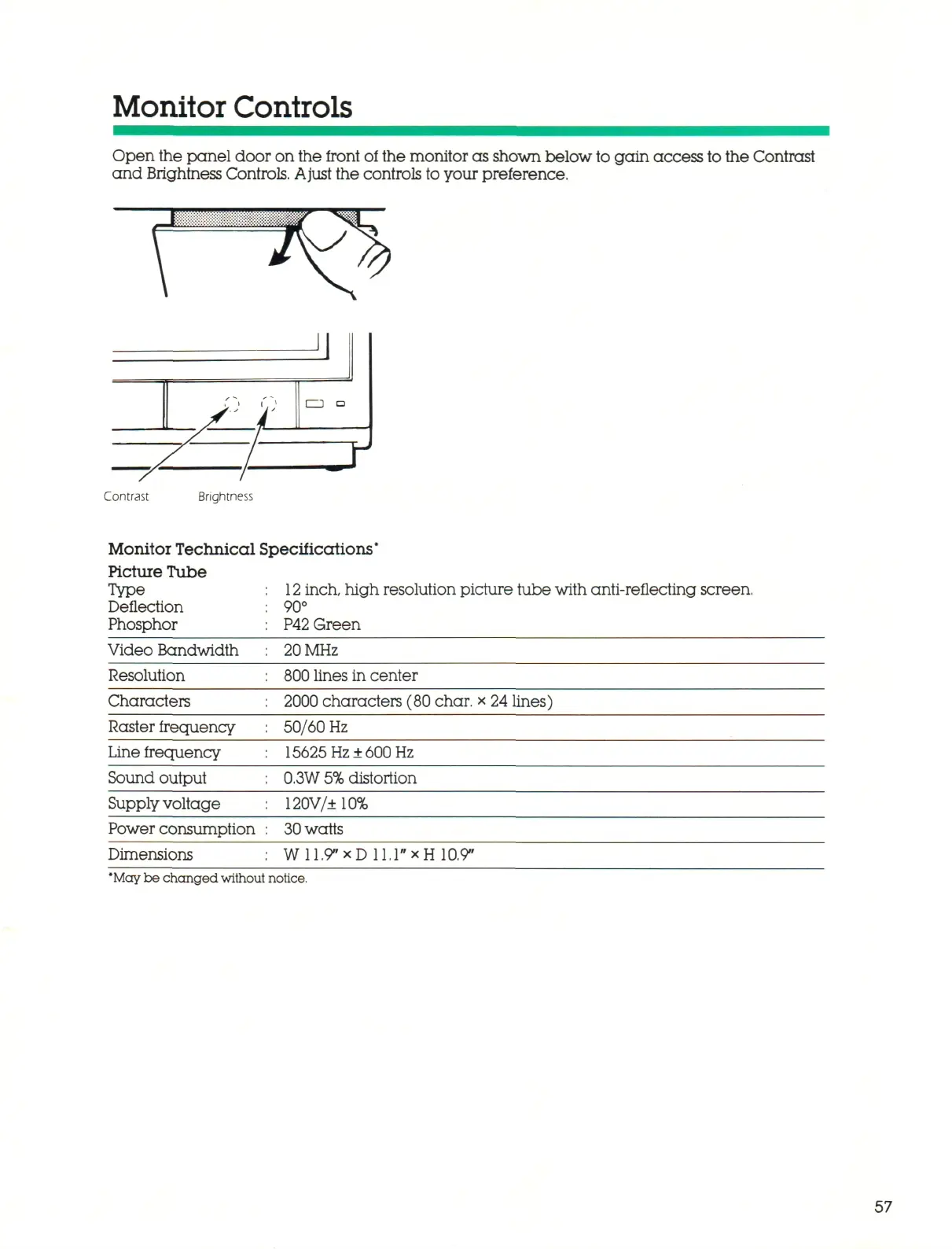

Monitor Controls
Open the panel door on the front of the monitor as shown below to gain access to the Contrast
and Brightness
Controls.
Ajust the controls to your preference.
I
Contrast
Bnghtness
Monitor Technical Specifications*
Picture Tube
Type
Deflection
Phosphor
Video Bandwidth
Resolution
Characters
Raster frequency
Line frequency
Sound output
Supply voltage
Power consumption
Dimensions
12 inch, high resolution picture tube with anti-reflecting screen.
90°
P42 Green
20 MHz
800 lines
in
center
2000 characters (80 char,
x 24
lines)
50/60 Hz
15625 Hz ±600 Hz
0.3W
5%
distortion
120V/± 10%
30 watts
W11.9"xD ll.l"xH10.9"
'May be changed without notice.
57
