The area between the upper and lower trigger lines establishes the triggering condition. Any
data points that register outside of the set trigger conditions initiates a snapshot.

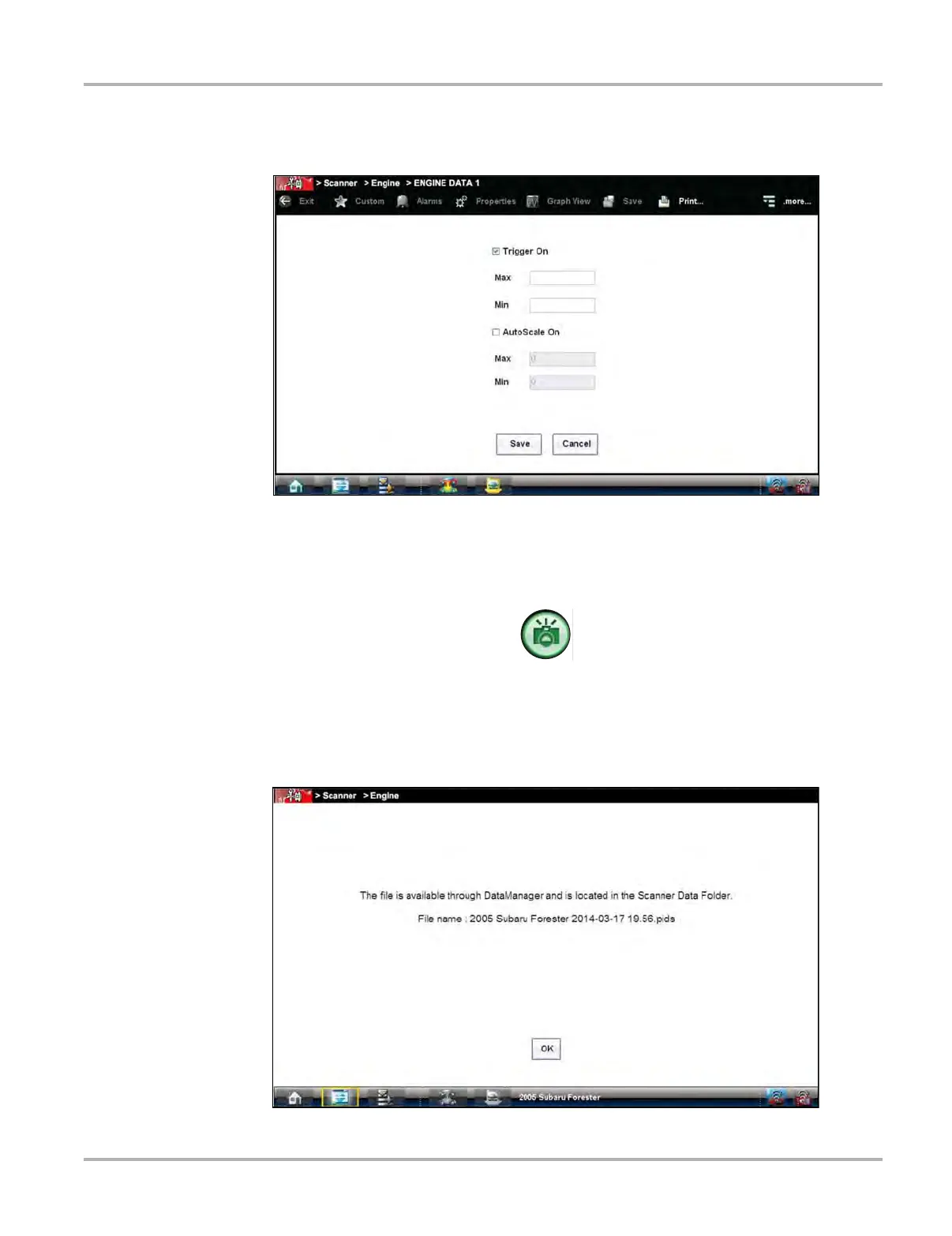

Figure 4-29 Sample Graph Properties dialog box
7. Select Snapshot on the Data Buffer Toolbar to arm the snapshot.
The Snapshot icon changes color to indicate it has been armed (Figure 4-30).
Figure 4-30 Sample armed Snapshot icon
Once all of the data is compiled, data collection pauses and the information is saved as a
movie. A confirmation screen displays to let you know the name automatically assigned to the
saved file and where to locate it.
Figure 4-31 Sample saved movie confirmation screen
