53
Scanner Function Scanner Operation
8. Select OK to close the confirmation screen.
9. Select the Play icon on the toolbar to resume viewing live data.
i Selecting an armed Snapshot icon disarms it.
Scale
Scale adjusts the upper and lower values displayed on the vertical axis of a data graph. Two scale
modes are available; auto scale and manual scale. Auto scale, which is the default setting,
automatically adjusts the graph scale based upon the minimum and maximum values transmitted
by the ECM. Manual scale allows you to set the minimum and maximum values.
z To manually set the scale on a graph:
1. Select the Graph Properties icon to open the dialog box for the graph you wish to scale.
2. From the Graph Properties dialog box (Figure 4-32), select Auto Scale On.
The check mark is cleared from the box and the minimum and maximum fields activate.
3. Select either Max: (maximum) or Min: (minimum) to activate that field and open the keyboard.
4. Type the desired scale value into the field.
5. Select the other field and enter a value, then close the virtual keyboard.
6. Select Save to close the dialog box.

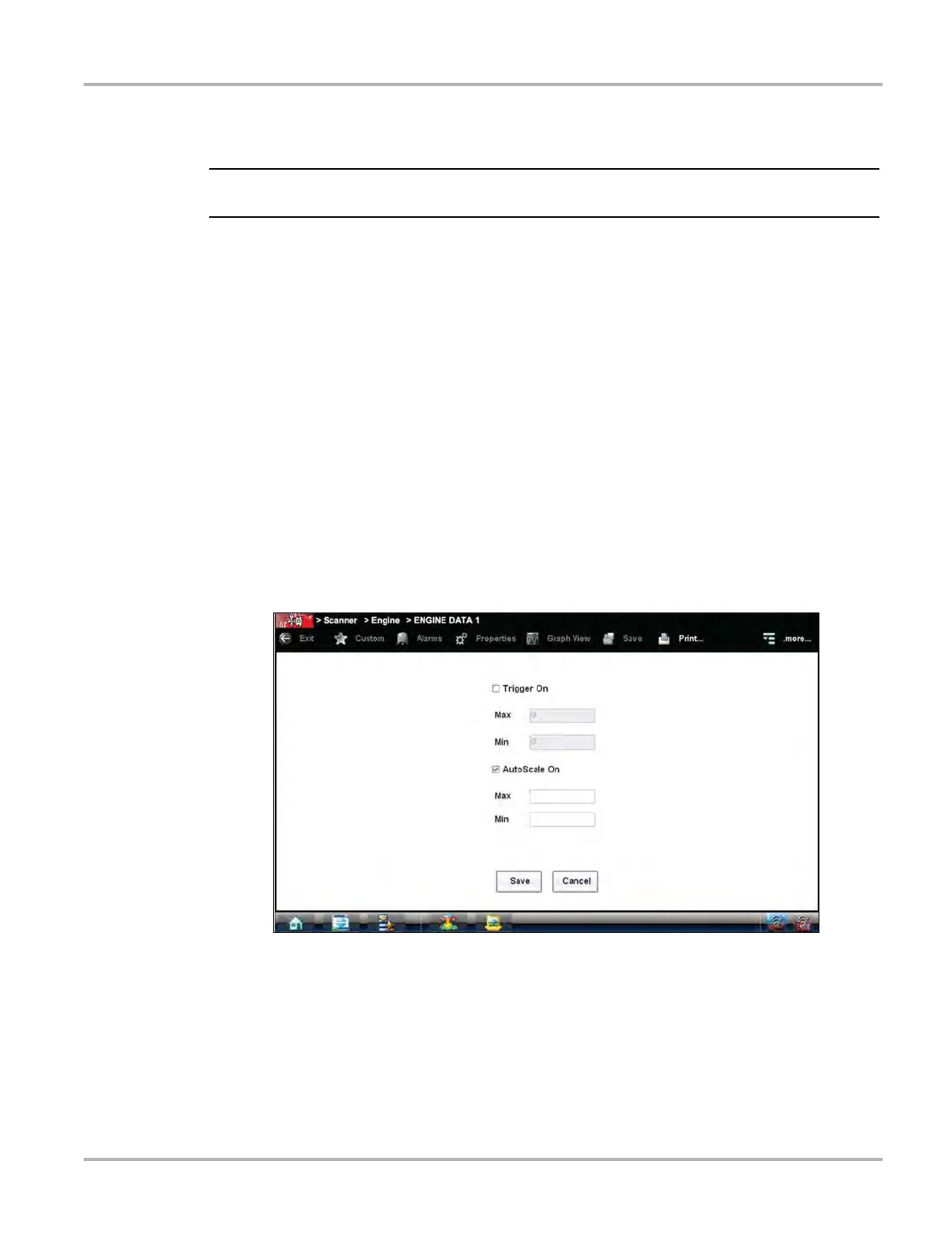

Figure 4-32 Sample manual scale selection
The dialog box closes and the parameter scale is now at the set values.
Using Zoom
The zoom options on the Data Buffer toolbar allow you to change the magnification level of the
sweep when viewing data graphs. Use the Zoom In (+) icon to increase magnification, and the
Zoom Out (–) icon to decrease magnification.
