Chapter 1: Overview
StorEdge™isSolarEdge'sall-in-onesolutionthatusesasinglephaseDCoptimizedinvertertomanageand
monitorbothsolarpowergenerationandenergystorage.Homeownersareautomaticallyprovidedwith
backuppowerintheeventofgridinterruptiontopowerpre-selectedloads.Solarenergycanbestoredin
abatteryforSmartEnergyManagementapplicationssuchasexportcontrol,offeringdemandresponse
andpeakshaving,andperformingtimeofuseshiftingforreducedelectricbills.
The StorEdge Solution Components
l The StorEdge Inverter -Theinvertermanagesbatteryandsystemenergy,inadditiontoitstraditional
functionalityasaDC-optimizedPVinverter.
SolarEdgeoffersaStorEdgethefollowinginvertertypes:

o
StorEdgeinverterforSingleBatteryorHighCapacity

o
StorEdgeinverterforHighPower.
TheConnection Unit,locatedatthebottomoftheinverter,allowssimpleinstallationand
connectivitytoothersystemcomponentsandincludesaDCSafetySwitch.
l The SolarEdge Electricity Meter-Themeterisusedbytheinverterforexport/consumption
readings,andforSmartEnergyManagementapplications,suchas:exportlimitation,time-of-use
profileprogrammingandmaximizingself-consumption.
ThemeterisrequiredonlyinsystemsusingSmartEnergyManagementapplications(itisnotrequired
forStorEdgesystemsusedonlyforbackuppower).
l The Auto-transformer-Theauto-transformerhandlesthephaseloadbalancing.Itisrequiredonlyin
systemsprovidingbackuppower.
l One battery -designedtoworkwiththeSolarEdgeStorEdgesystem.

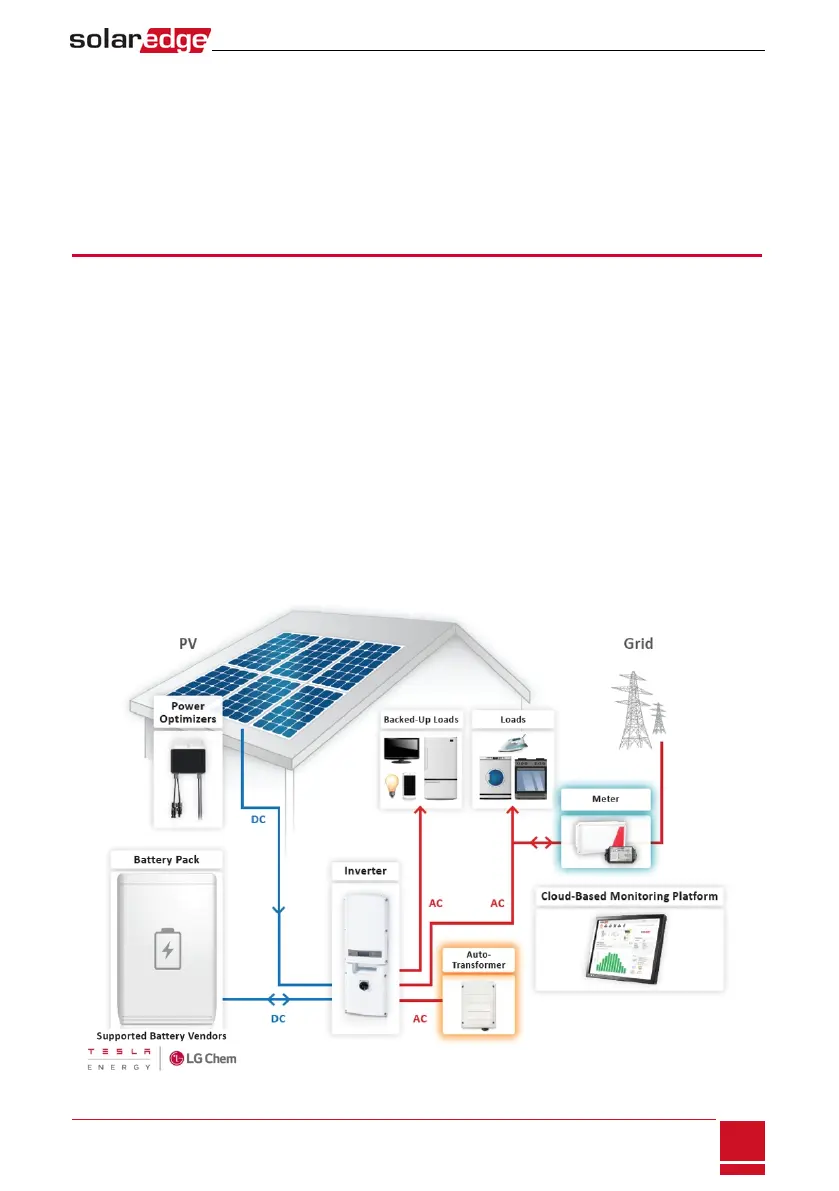

Figure 1: StorEdge system components
