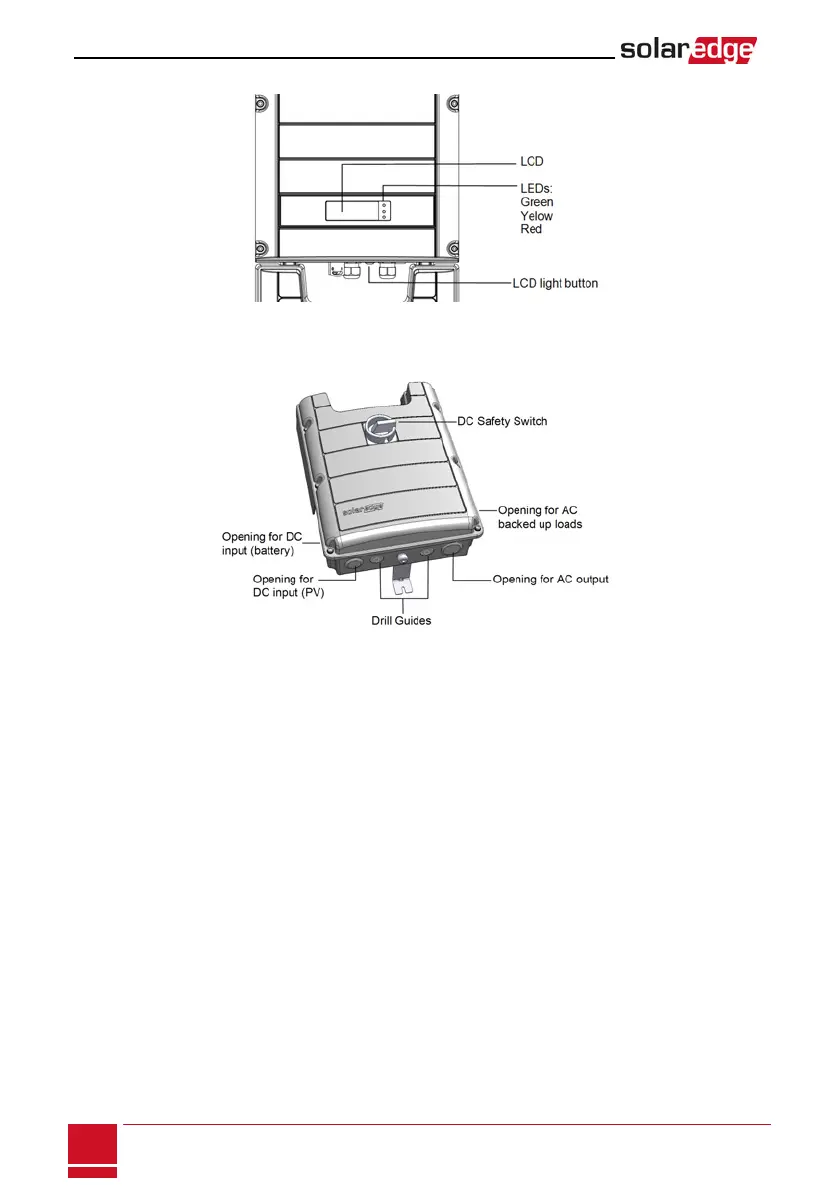

Figure 8: Inverter front view
Connection Unit
Figure 9: Connection Unit
TheConnectionUnitincludes:
l DC safety switch:disconnectsboththepositiveandnegativeconductorsofthePVandthepositive
andnegativeconductorsofthebattery.
l Openings for conduit entry:Fouropeningsarereadytouseandhavesealingcovers.Twoopenings
areclosedwithdrillguides.Ifrequired,openthedrillguidesasdescribedinOpeningConduitDrillGuides
onpage102.

