SolarEdge SEAUTO-TX-5000 User Manual

Connecting to AC
Connecting to the Auto-transformer
TheAuto-transformerisrequiredforBackupPoweronly.

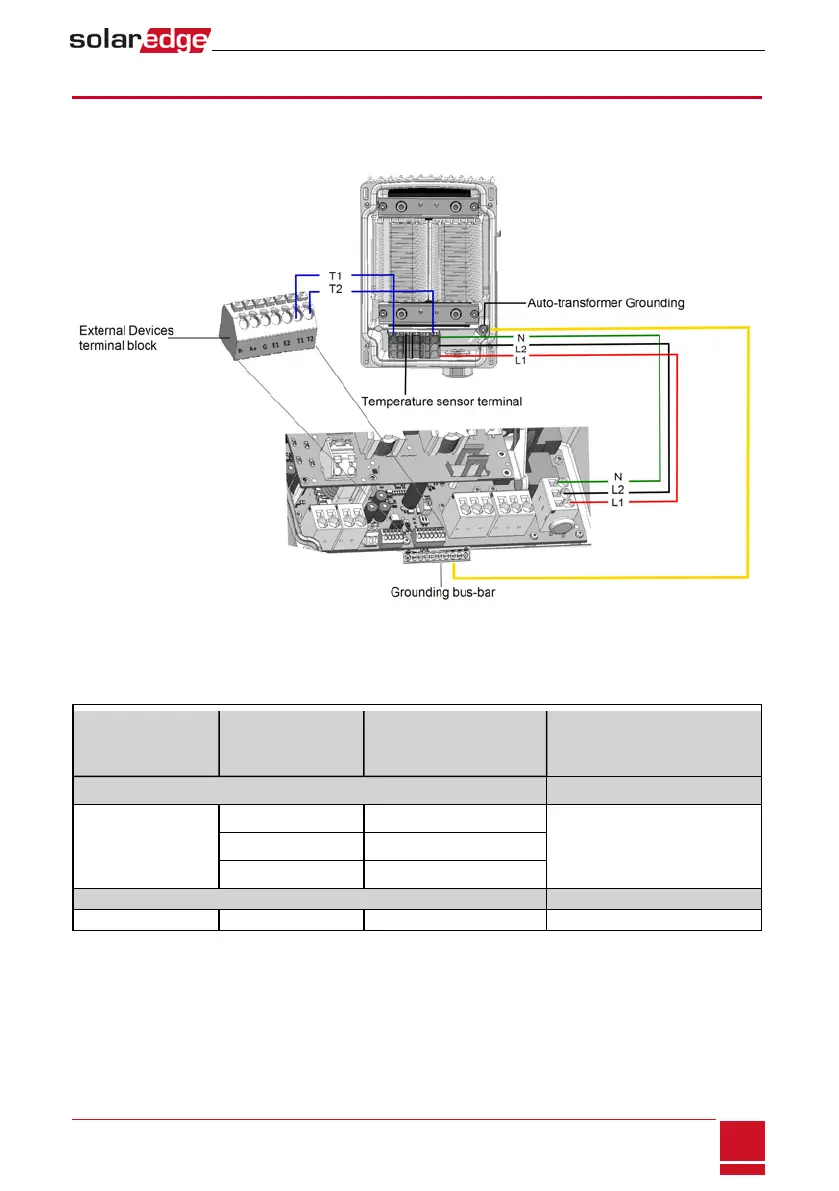

Figure 26: Connecting to the auto-transformer
1. UsethesuppliedAllenkeytoopenthe4screwsoftheauto-transformerandremoveitscover.
2. Preparecablesandconnectasdescribedinthefollowingtable:
Recommended
cable type (min-
max AWG)
Connection Unit
connection
Auto-transformer
connection
Connection method
AC
8 AWG (6-20 AWG)
3-pin terminal block: L1 Line terminal: L1
Insert the wire into the round
opening and push to clamp the
wire.
3-pin terminal block: L2 Line terminal: L2
3-pin terminal block: N Neutral terminal: N
Grounding
10 AWG cable
GroundingBus-bar Groundinglug
Chapter 6: StorEdge Inverter Connections
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.3
41
